Briggs and Stratton 13A137-0138-F1

Model: 13A137-0138-F1

Back To Assemblies

Save Part Not Listed?
product name

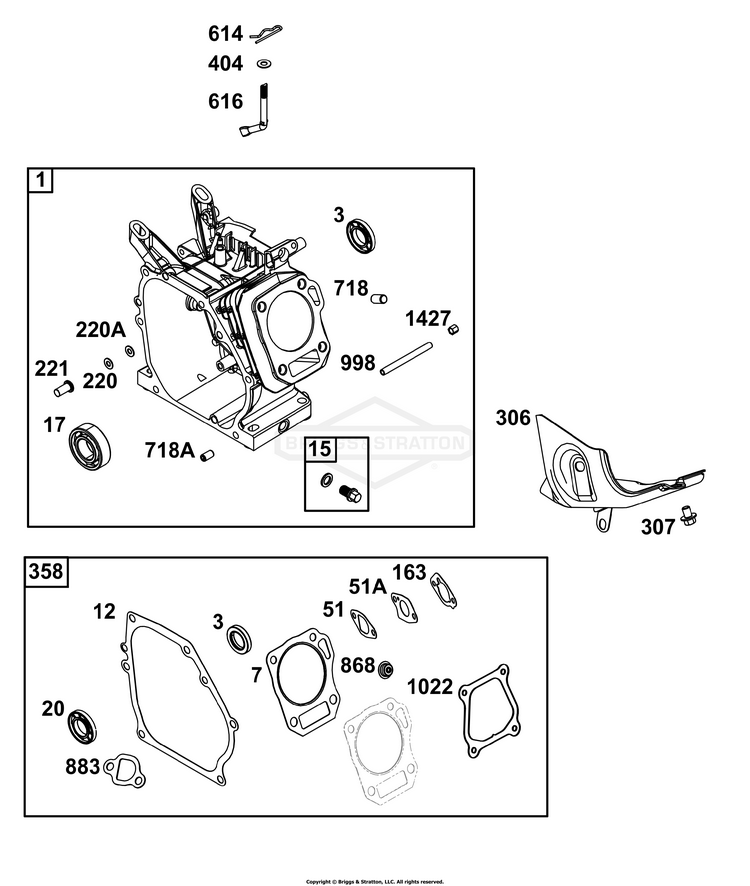

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-84005180
...
3
SEAL, Oil (Magneto Side) BS-590712
...
15
PLUG, Oil Drain BS-590678
...
17
BEARING, Ball (Cylinder) BS-590715
...
220
WASHER (Governor Gear) BS-590677
...
220A
WASHER BS-590675
...
221
CUP, Governor BS-590676
...
306
SHIELD, Cylinder BS-590636
...
307
SCREW (Cylinder Shield) BS-590683
...
358
GASKET SET, ENGINE (Service Kits can include parts not for this engine.) BS-84004333
...
404
WASHER (Governor Crank) BS-590669
...
614
PIN, Cotter BS-590670
...
616
CRANK, Governor BS-590668
...
718
PIN, Locating BS-590637
...
718A
PIN, Locating BS-590713
...
998
PIPE, Oil BS-794701
...
1427
PLUG, Oil Drain BS-695757
