Briggs and Stratton 13A137-0138-F1

Model: 13A137-0138-F1

Back To Assemblies

Save Part Not Listed?
product name

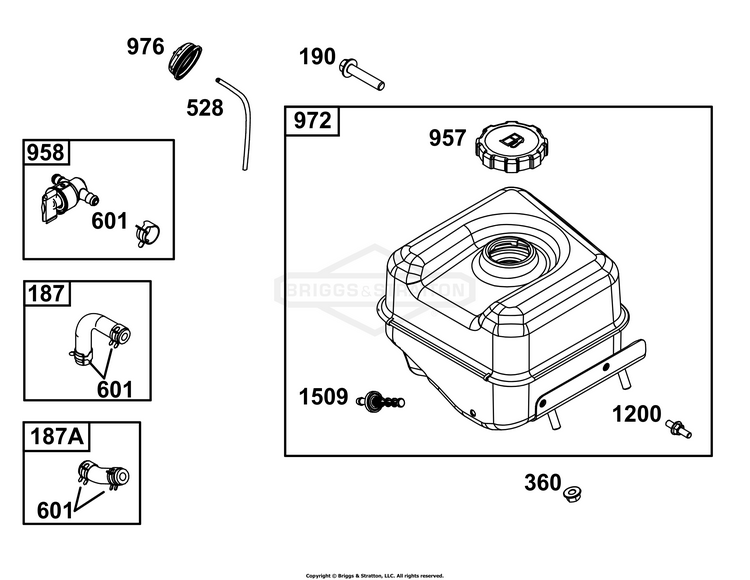

Fuel Supply Group

...
...
187
LINE, Fuel BS-591516
...
187A
LINE, Fuel BS-591517
...
190
SCREW (Fuel Tank) BS-591476
...
360
NUT (Fuel Tank Bracket) BS-707919
...
528
HOSE, Primer BS-845267
...
601
CLAMP, Hose BS-791850
...
957
CAP, Fuel Tank BS-794641
...
958
VALVE, Fuel Shut Off BS-593171
...
972
TANK, Fuel BS-591508
...
976
PRIMER, Carburetor BS-793382
...
1200
STUD (Fuel Tank Bracket) BS-591509
...
1509
OUTLET, Tank BS-797346
