Briggs and Stratton 130G32-0258-H5

Model: 130G32-0258-H5

Back To Assemblies

Save Part Not Listed?
product name

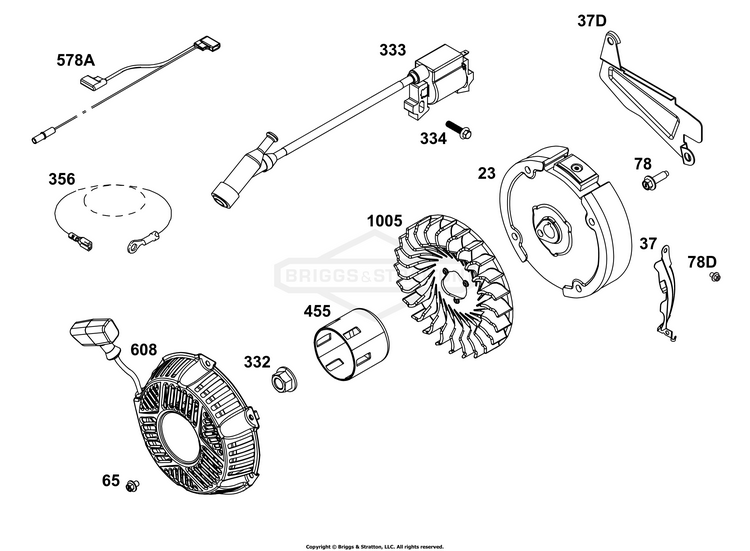

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL (Used Before Code Date 21052000) BS-590681
...
23
FLYWHEEL (Used After Code Date 21051900) BS-595228
...
37
GUARD, Flywheel BS-592865
...
37D
GUARD, Flywheel BS-596201
...
65
SCREW (Rewind Starter) BS-590683
...
78
SCREW BS-590643
...
78D
SCREW (Flywheel Guard) BS-590683
...
332
NUT (Flywheel) BS-590635
...
333
ARMATURE, Magneto BS-590603
...
334
SCREW (Magneto Armature) BS-590644
...
356
WIRE, Stop BS-695630
...
455
CUP, Flywheel BS-590682
...
578A
WIRE ASSEMBLY BS-590689
...
608
STARTER, Rewind BS-590607
...
1005
FAN, Flywheel BS-590679
