Briggs and Stratton 130G32-0184-F1

Model: 130G32-0184-F1

Back To Assemblies

Save Part Not Listed?
product name

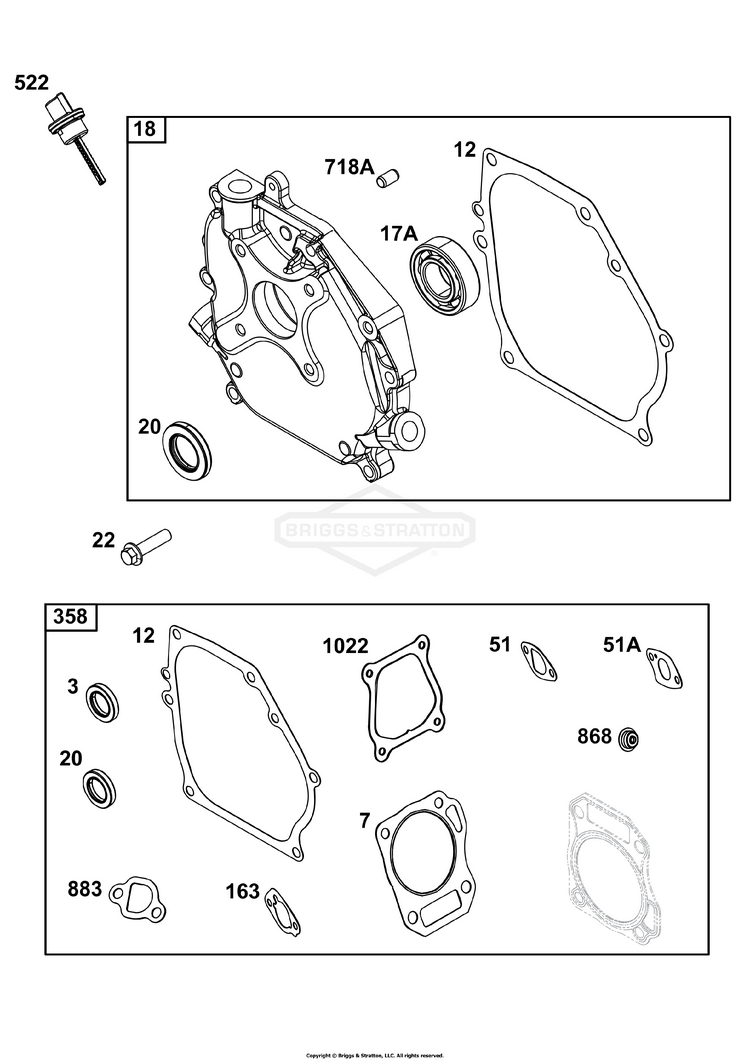

Crankcase Cover/Sump and Lubrication Group

...
...
12
GASKET, Crankcase BS-590608
...
17A
BEARING, Ball (Crankcase Cover/Sump) BS-798538
...
18
COVER, CRANKCASE BS-84002444
...
20
SEAL-OIL (PTO Side) BS-692550
...
22
SCREW (Crankcase Cover/Sump) BS-590714
...
522
PLUG, Dipstick/Fill BS-590716
...
718A
PIN, Locating BS-590713
Schematic Image Zoomed
