Briggs and Stratton 130G32-0057-01

Model: 130G32-0057-01

Back To Assemblies

Save Part Not Listed?
product name

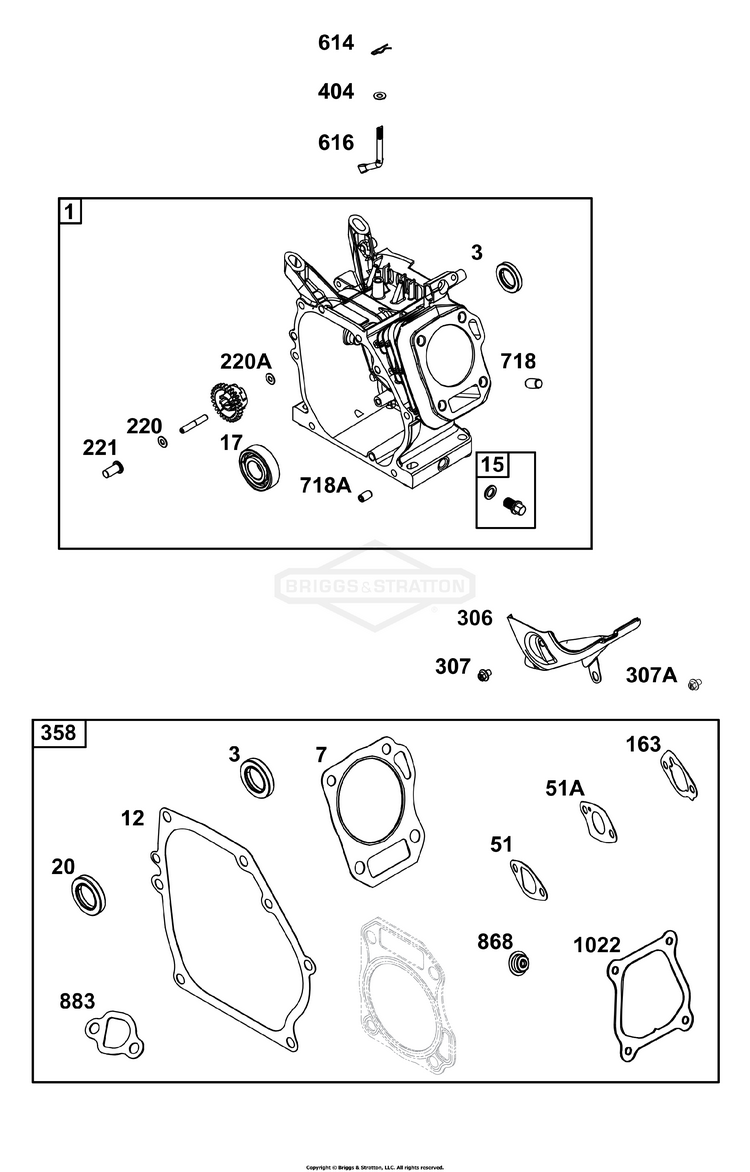

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-84002436
...
3
SEAL, Oil (Magneto Side) BS-590712
...
15
PLUG, Oil Drain BS-590678
...
17
BEARING, Ball (Cylinder) BS-590715
...
220
WASHER (Governor Gear) BS-590677
...
220A
WASHER (Governor Gear) BS-590675
...
221
CUP, Governor BS-590676
...
306
SHIELD, Cylinder BS-590636
...
307
SCREW (Cylinder Shield) BS-590683
...
307A
SCREW (Cylinder Shield) BS-590643
...
358
GASKET SET, ENGINE (Service Kits may include extra parts not specific to this engine.) BS-84004333
...
404
WASHER (Governor Crank) BS-590669
...
614
PIN, Cotter BS-590670
...
616
CRANK, Governor BS-590668
...
718
PIN, Locating BS-590637
...
718A
PIN, Locating BS-590713
