Briggs and Stratton 12V352-0163-F1

Model: 12V352-0163-F1

Back To Assemblies

Save Part Not Listed?
product name

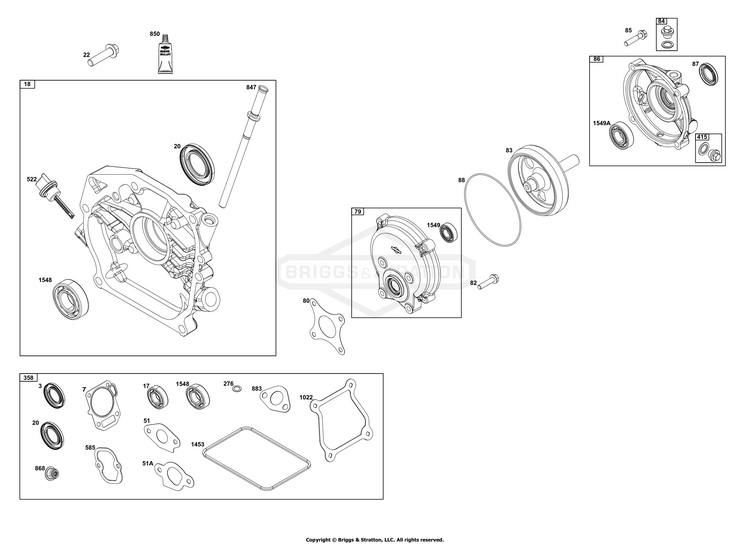

Crankcase Cover/Sump Group

...
...
18
COVER, Crankcase BS-596986
...
20
SEAL, Oil (PTO Side) BS-596991
...
22
SCREW (Crankcase Cover/Sump) BS-590714
...
79
CASE, Gear Reduction BS-84002975
...
80
GASKET, Gear Case BS-792755
...
82
SCREW (Gear Reduction Case) BS-792753
...
83
SHAFT, Auxiliary Drive BS-792756
...
84
PLUG, Breather BS-792759
...
85
SCREW (Gear Cover) BS-690711
...
86
COVER-GEAR BS-792748
...
87
SEAL, Gear Reduction BS-792752
...
88
GASKET, Gear Cover/Housing BS-792760
...
415
PLUG BS-596721
...
847
DIPSTICK/TUBE ASSEMBLY (Part information located in Lubrication Group.) BS-JUMPTO847
...
850
SEALANT, Liquid BS-100106
...
1548
BEARING, Ball (Crankcase Cover/Sump) BS-596990
...
1549
BEARING-BALL BS-99158
...
1549A
BEARING, Ball BS-792745
