Briggs and Stratton 12V337-0171-H7

Model: 12V337-0171-H7

Back To Assemblies

Save Part Not Listed?
product name

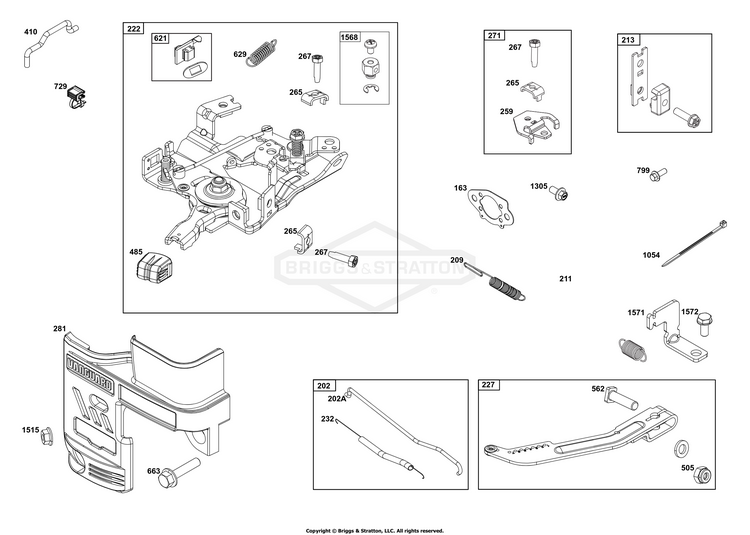

Controls Group

...
...
202
LINK, Mechanical Governor BS-597032
...
202A
LINK, Mechanical Governor BS-597033
...
209
SPRING, Governor BS-84005970
...
211
SPRING, Governor BS-691278
...
222
BRACKET, Control BS-84006188
...
227
LEVER, Governor Control BS-84003330
...
232
SPRING, Governor Link BS-597034
...
259
BRACKET, Casing Clamp BS-596950
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-597027
...
271
BRACKET, Remote BS-597026
...
281
PANEL, Control BS-84004647
...
410
LINK, Control BS-597024
...
485
KNOB, Control BS-84004631
...
505
NUT (Governor Control Lever) BS-590641
...
562
BOLT (Governor Control Lever) BS-597121
...
621
SWITCH, Stop BS-84007989
...
629
SPRING, Throttle Return BS-597022
...
663
SCREW (Control Panel) BS-597460
...
663
SCREW (Control Panel) BS-84003635
...
729
CLIP BS-84008531
...
1054
TIE, Cable BS-280275
...
1305
SCREW (Oil Sensor Module) BS-590703
...
1515
NUT (Control Panel) BS-590692
...
1568
RETAINER, Wire BS-84005188
...
1571
BRACKET, Governor Control BS-597035
...
1572
SCREW (Governed Idle Spring Bracket) BS-597036
