Briggs and Stratton 12V337-0167-F1

Model: 12V337-0167-F1

Back To Assemblies

Save Part Not Listed?
product name

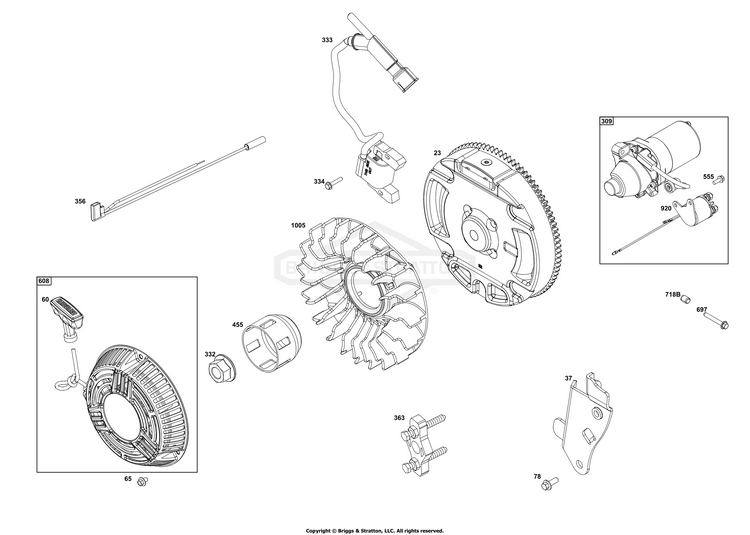

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-597087
...
37
GUARD, Flywheel BS-597081
...
60
GRIP, Starter Rope BS-597080
...
65
SCREW (Rewind Starter) BS-590683
...
78
SCREW (Flywheel Guard) BS-590703
...
309
MOTOR, Starter BS-595424
...
332
NUT (Flywheel) BS-591988
...
333
COIL, Ignition BS-84003520
...
334
SCREW (Magneto Armature) BS-699477
...
356
WIRE, Stop BS-597055
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-597088
...
555
SCREW (Starter Solenoid) BS-597012
...
608
STARTER, Rewind BS-596772
...
697
SCREW (Starter Motor) (Drive Cap) BS-793450
...
718B
PIN, Locating BS-591466
...
920
SOLENOID, Starter BS-84007142
...
1005
FAN, Flywheel BS-794273
