Briggs and Stratton 12V332-0148-F1

Model: 12V332-0148-F1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

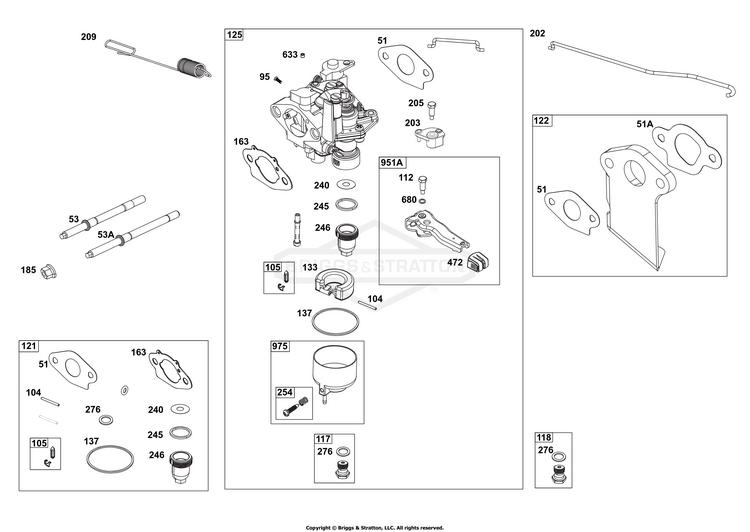

Carburetor Group

...
...
53
STUD (Carburetor) (Short) BS-597052
...
53A
STUD (Carburetor) (Long) BS-597051
...
95
SCREW (Throttle Valve) BS-797161
...
104
PIN, Float Hinge BS-597533
...
105
VALVE, Float Needle BS-797139
...
112
SCREW (Choke Lever) BS-84005081
...
117
JET, Main (Standard) BS-84004447
...
118
JET, Main (High Altitude) BS-597048
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-597138
...
122
SPACER, Carburetor BS-84003331
...
125
CARBURETOR ASSEMBLY BS-84002952
...
133
FLOAT, Carburetor BS-597473
...
137
GASKET, Float Bowl BS-798932
...
163
GASKET, Air Cleaner BS-596768
...
203
CRANK, Bell BS-597045
...
205
SCREW (Bell Crank) BS-84005081
...
240
FILTER, Fuel (Part information located in Fuel Supply Group.) BS-JUMPTO240
...
245
GASKET, Fuel Bowl BS-597735
...
246
BOWL, Fuel Filter BS-597043
...
254
DRAIN, Carburetor Bowl BS-595322
...
276
WASHER, Sealing BS-797632
...
472
KNOB, Control BS-84002963
...
633
SEAL, Choke/Throttle Shaft BS-84004398
...
680
WASHER (Choke Lever) BS-80078774
...
951A
LEVER, Choke BS-84003872
...
975
BOWL, Float BS-597049
Schematic Image Zoomed
