Briggs and Stratton 12V332-0148-F1

Model: 12V332-0148-F1

Back To Assemblies

Save Part Not Listed?
product name

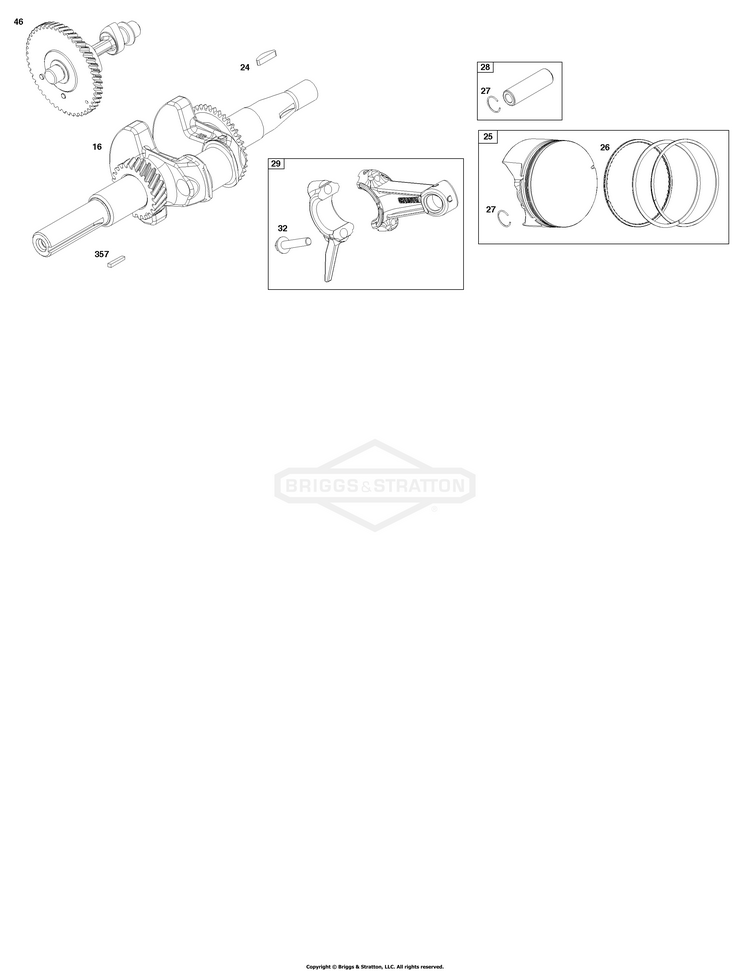

Crankshaft Group

...
...
16
CRANKSHAFT BS-596962
...
24
KEY, Flywheel (Crankcase Cover/Sump) BS-596976
...
25
PISTON ASSEMBLY (Standard) BS-596977
...
25
PISTON ASSEMBLY (.020 Oversize) BS-596978
...
26
SET, Ring (Standard) BS-596979
...
26
SET, Ring (.020 Oversize) BS-596980
...
27
LOCK, Piston Pin BS-596982
...
28
PIN, Piston BS-596981
...
29
ROD, Connecting BS-596983
...
32
SCREW (Connecting Rod) BS-596984
...
46
CAMSHAFT BS-596993
...
357
KEY, Drive Pulley BS-798869
