Briggs and Stratton 125P42-0033-H5

Model: 125P42-0033-H5

Back To Assemblies

Save Part Not Listed?
product name

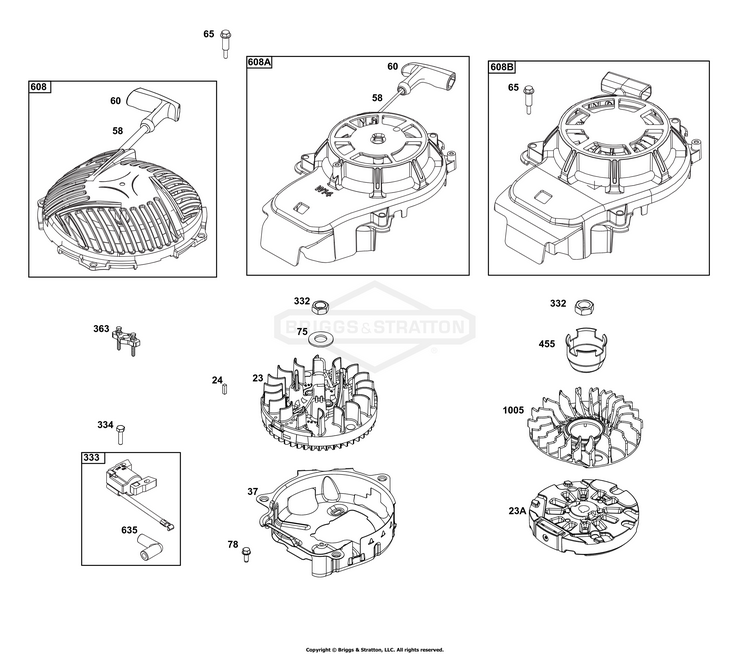

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL Used Before Code Date 22042600 BS-84007965
...
23A
FLYWHEEL Used After Code Date 22042500 BS-597277
...
23B
To Be Determined BS-TBD
...
37
HOUSING, Blower BS-595290
...
58
ROPE, Starter BS-591108
...
60
GRIP, Starter Rope BS-281434S
...
65
SCREW (Rewind Starter) BS-590586
...
75
WASHER (Flywheel) BS-691736
...
78
SCREW (Flywheel Guard) BS-793480
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, Magneto BS-595291
...
334
SCREW (Magneto Armature) BS-793454
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel Used After Code Date 22093000 BS-591400
...
455
CUP, Flywheel Used After Code Date 25022000 BS-84013130
...
608
STARTER, REWIND BS-84010941
...
608A
STARTER, Rewind Used After Code Date 22093000 BS-597268
...
608B
STARTER, Rewind Used After Code Date 25022000 BS-84013156
...
635
BOOT, Spark Plug BS-692076
...
1005
FAN, Flywheel Used After Code Date 22042500 BS-799265
...
1005
FAN, Flywheel Used After Code Date 22100200 BS-84013633
