Briggs and Stratton 125P02-0088-F1

Model: 125P02-0088-F1

Back To Assemblies

Save Part Not Listed?
product name

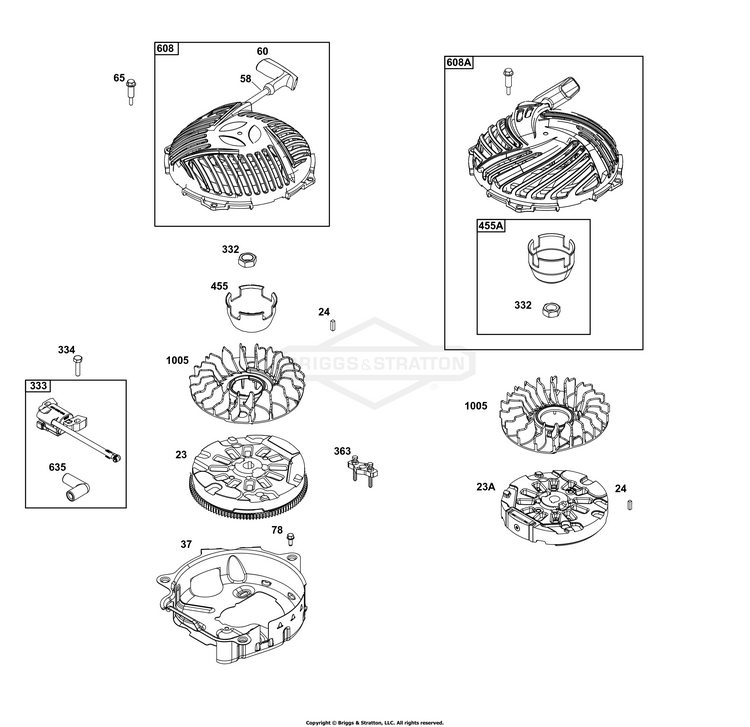

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-597277
...
23A
FLYWHEEL Used After Code Date 25011200 BS-84013443
...
37
HOUSING, Blower BS-595290
...
58
ROPE, Starter BS-591108
...
60
GRIP, Starter Rope BS-281434S
...
78
SCREW (Flywheel Guard) BS-793480
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, Magneto BS-595291
...
334
SCREW (Magneto Armature) BS-793454
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-591400
...
455A
CUP, Flywheel Used After Code Date 25011200 BS-84013158
...
608
STARTER, Rewind BS-84010941
...
608A
STARTER, Rewind Used After Code Date 25011200 BS-84013151
...
1005
FAN, Flywheel BS-799265
Schematic Image Zoomed
