Briggs and Stratton 123P32-0035-H5

Model: 123P32-0035-H5

Back To Assemblies

Save Part Not Listed?
product name

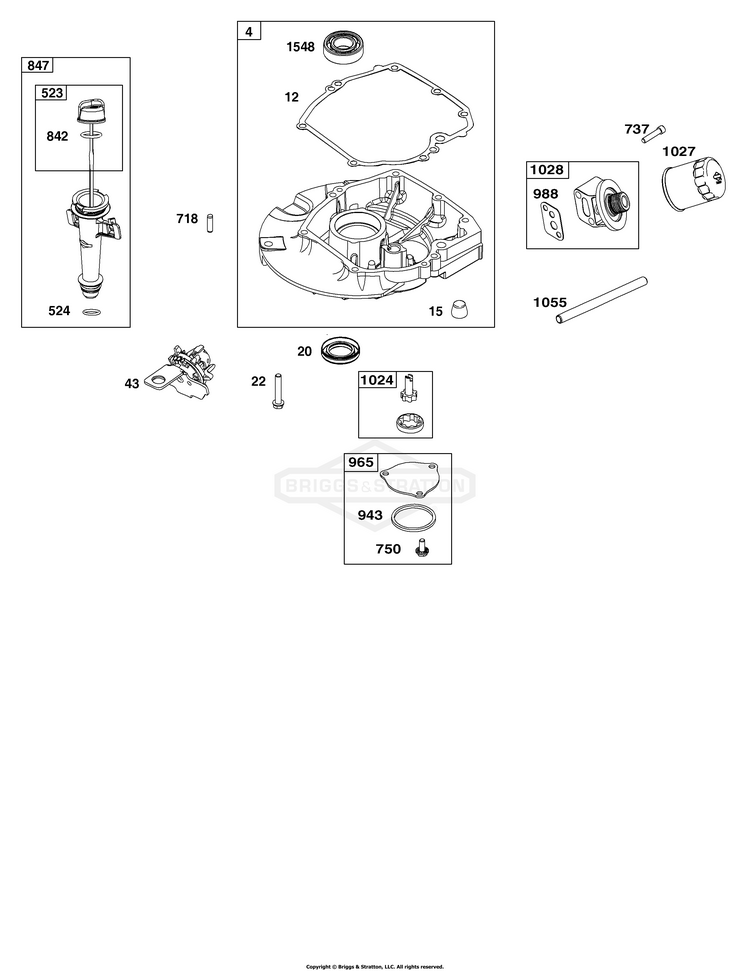

Sump and Lubrication Group

...
...
4
SUMP, Engine BS-592941
...
12
GASKET, Crankcase BS-692232
...
15
PLUG, Oil Drain BS-691680
...
20
SEAL, Oil (PTO Side) BS-399781S
...
22
SCREW (Crankcase Cover/Sump) BS-691092
...
43
SLINGER, Governor/Oil BS-593912
...
523
DIPSTICK BS-796503
...
524
SEAL, O-Ring (Dipstick Tube) BS-691876
...
737
SCREW (Oil Filter Adapter) BS-691147
...
750
SCREW (Oil Pump Cover) BS-692511
...
842
SEAL, O-Ring (Dipstick Cap) BS-691031
...
847
DIPSTICK/TUBE ASSEMBLY BS-596508
...
943
SEAL, O-Ring (Oil Pump Cover) BS-692514
...
965
COVER, Oil Pump BS-692507
...
988
GASKET, Oil Adapter BS-692515
...
1024
PUMP, Oil BS-692508
...
1027
FILTER, Oil BS-795990
...
1028
ADAPTER, Oil Filter BS-796522
...
1055
TUBE, Oil Pump BS-796524
...
1548
BEARING, Ball (Crankcase Cover/Sump) BS-798538
