product name

Briggs and Stratton 123P02-0090-H5

Model: 123P02-0090-H5

Back To Assemblies

Save Part Not Listed?
product name

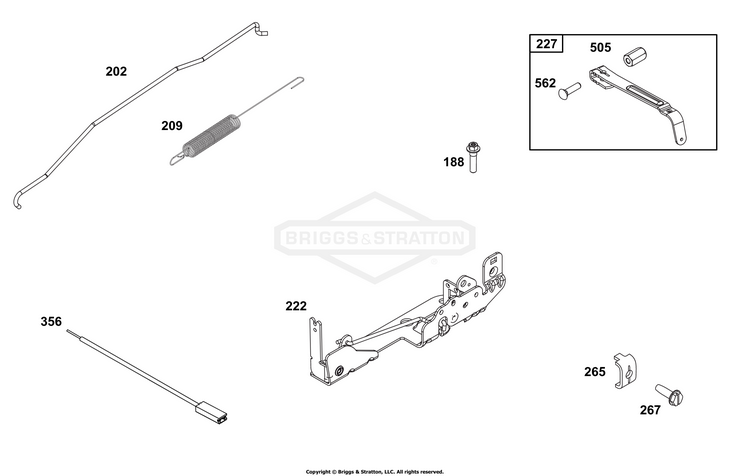

Controls Group

...
...
188
SCREW (Control Bracket) BS-793480
...
202
LINK, Mechanical Governor BS-597337
...
209
SPRING, Governor BS-597440
...
222
BRACKET, Control BS-597273
...
227
LEVER, Governor Control BS-597336
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-692577
...
356
WIRE, Stop BS-692390
...
505
NUT (Governor Control Lever) BS-597312
...
562
BOLT (Governor Lever) BS-793514
