Briggs and Stratton 121S0B-0071-F1

Model: 121S0B-0071-F1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

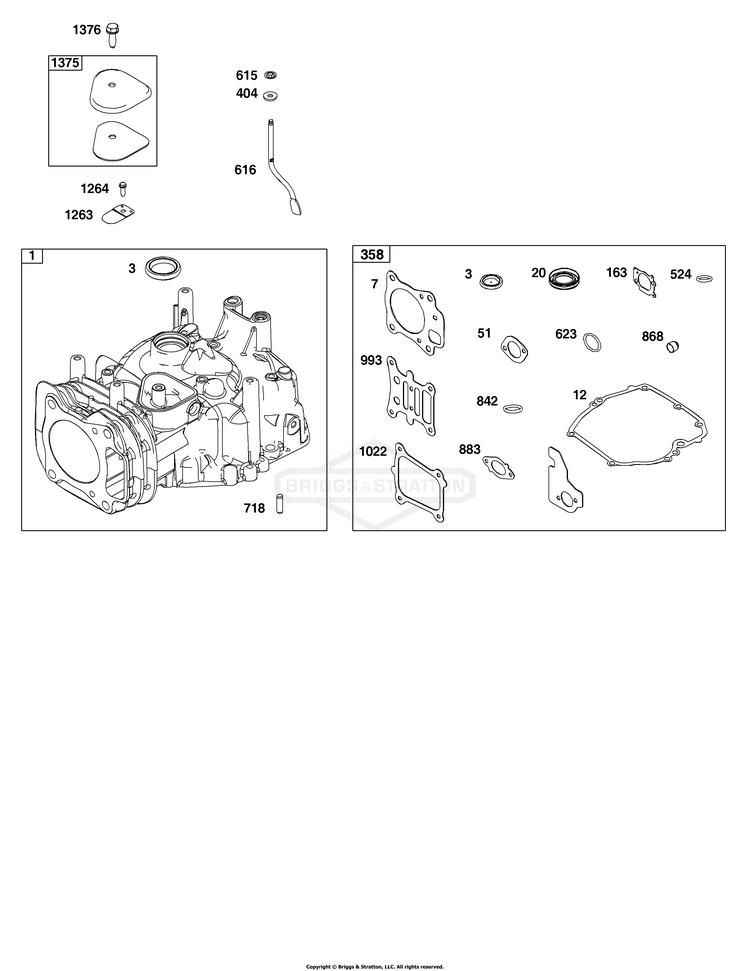

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-798947
...
3
SEAL, Oil (Magneto Side) BS-299819S
...
358
GASKET SET, Engine BS-597320
...
404
WASHER (Governor Crank) BS-690272
...
615
RETAINER, Governor Shaft BS-690340
...
616
CRANK, Governor BS-798327
...
718
PIN, Locating BS-690959
...
993
GASKET, Cylinder Head Plate BS-796473
...
1022
GASKET, Rocker Cover BS-796480
...
1263
REED, Breather BS-697124
...
1264
SCREW (Breather Reed) BS-793453
...
1375
COVER, Breather Reed BS-796476
...
1376
SCREW (Breather Reed Cover) BS-794451
