Briggs and Stratton 10V332-0040-F1

Model: 10V332-0040-F1

Back To Assemblies

Save Part Not Listed?

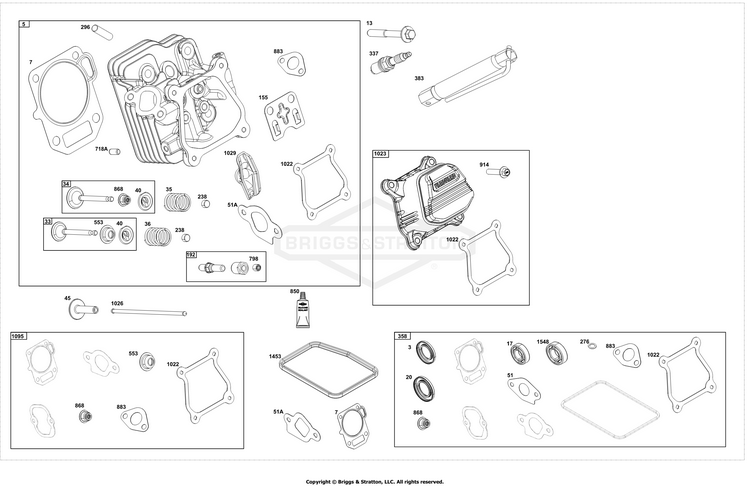

product name

Cylinder Head Group

...
...
5
HEAD, Cylinder BS-84005288
...
7
GASKET, Cylinder Head BS-84005440
...
13
SCREW (Cylinder Head) BS-597008
...
33
VALVE, Exhaust BS-84005287
...
34
VALVE, Intake BS-84005280
...
35
SPRING, Valve (Intake) BS-597002
...
36
SPRING, Valve (Exhaust) BS-597002
...
40
RETAINER, Valve BS-590654
...
45
TAPPET, Valve BS-591449
...
51
GASKET, Intake BS-596769
...
51A
GASKET, Intake BS-84005443
...
155
PLATE, Cylinder Head BS-592874
...
192
ADJUSTER, Rocker Arm BS-597006
...
238
CAP, Valve BS-590649
...
337
PLUG, Spark BS-597383
...
383
WRENCH, Spark Plug BS-19576S
...
553
RETAINER, Valve Spring BS-597003
...
718A
PIN, Locating BS-590637
...
798
SCREW (Rocker Arm) BS-597000
...
868
SEAL, Valve BS-597001
...
914
SCREW (Rocker Cover) BS-597016
...
1022
GASKET, Rocker Cover BS-597015
...
1023
COVER, Rocker BS-84005240
...
1026
ROD, Push BS-597017
...
1029
ARM, Rocker BS-596999
...
1095
GASKET SET, Valve (Service Kits can include parts not for this engine.) BS-597140
