Briggs and Stratton 10V332-0040-F1

Model: 10V332-0040-F1

Back To Assemblies

Save Part Not Listed?
product name

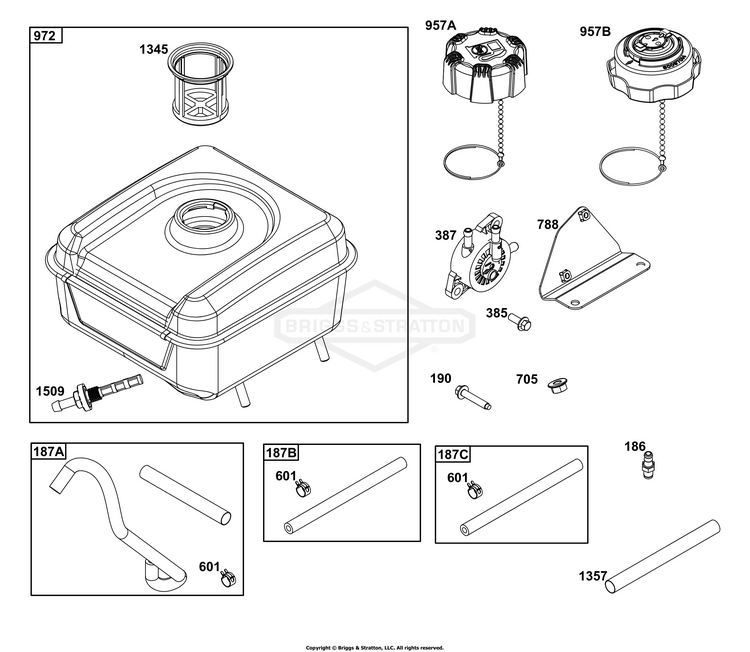

Fuel Supply Group

...
...
187A
LINE, Fuel BS-84003746
...
187B
LINE, Fuel BS-791766
...
187C
LINE, Fuel BS-791745
...
190
SCREW (Fuel Tank) BS-591476
...
385
SCREW (Fuel Pump) BS-590703
...
387
PUMP, Fuel BS-597338
...
601
CLAMP, Hose BS-791850
...
705
NUT (Fuel Tank) BS-707919
...
788
BRACKET, Fuel Pump BS-84005241
...
957A
CAP, Fuel Tank Used Before Code Date 24091600 BS-596765
...
957B
CAP, Fuel Tank Used After Code Date 24091500 BS-84007570
...
972
TANK, Fuel BS-84013476
...
1345
FILTER, Filler Neck BS-792917
...
1357
SLEEVE, Fuel Line BS-84005253
...
1509
OUTLET, Tank BS-797346
