Briggs and Stratton 10V332-0040-F1

Model: 10V332-0040-F1

Back To Assemblies

Save Part Not Listed?
product name

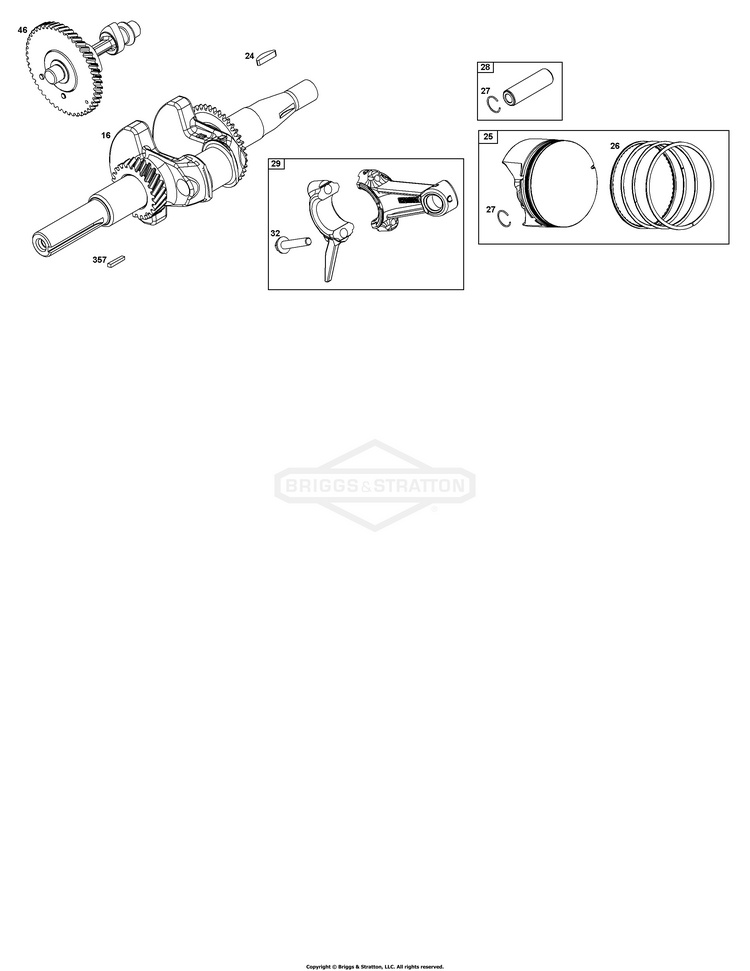

Crankshaft Group

...
...
16
CRANKSHAFT BS-84004652
...
24
KEY, Flywheel BS-596976
...
25
PISTON ASSEMBLY BS-84004674
...
25
PISTON ASSEMBLY (.020" Oversize) BS-84005433
...
26
SET, Ring BS-84005435
...
26
SET, Ring (.020" Oversize) BS-84005437
...
27
LOCK, Piston Pin BS-596982
...
28
PIN, Piston BS-84005441
...
29
ROD, Connecting BS-84005444
...
32
SCREW (Connecting Rod) BS-596984
...
46
CAMSHAFT BS-84005295
...
357
KEY, Drive Pulley BS-798869
