Briggs and Stratton 104M05-0042-H5

Model: 104M05-0042-H5

Back To Assemblies

Save Part Not Listed?
product name

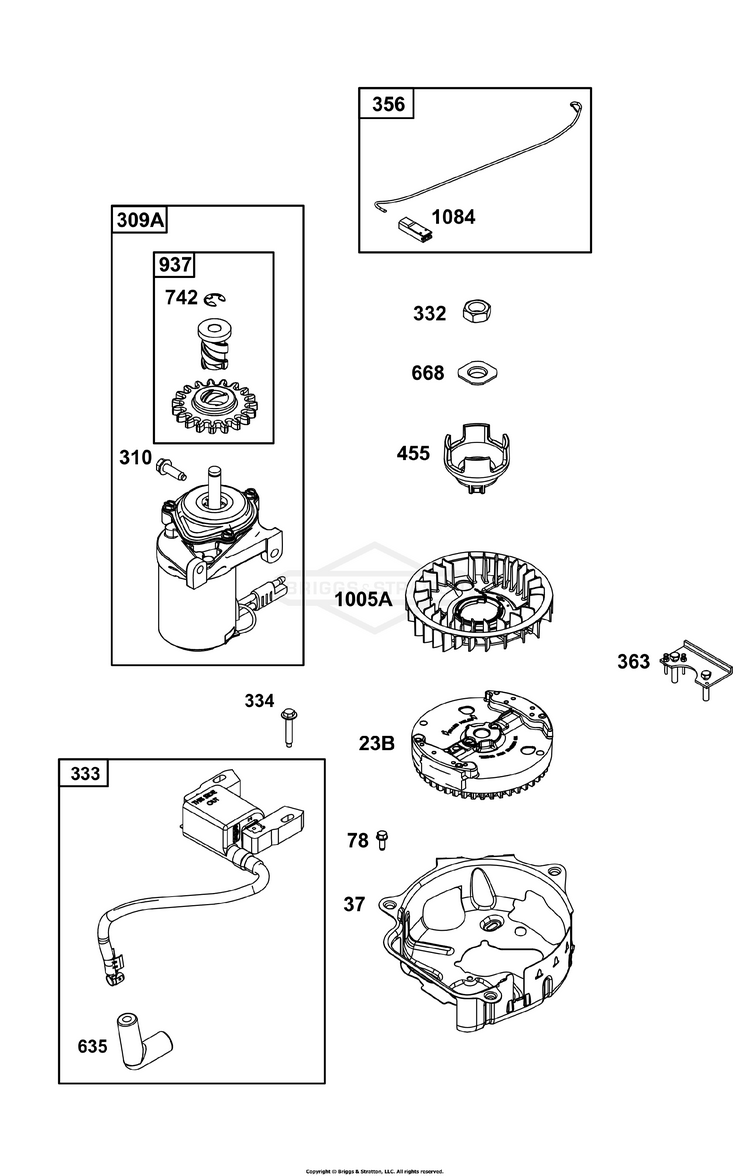

Flywheel/Ignition/Starter Group

...
...
23B
FLYWHEEL BS-595183
...
37
GUARD, Flywheel BS-595188
...
78
SCREW (Flywheel Guard) BS-793480
...
309A
MOTOR, STARTER BS-84004207
...
310
SCREW (Starter Motor) BS-691127
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, MAGNETO BS-84005272
...
334
SCREW (Magneto Armature) BS-691061
...
356
WIRE-STOP BS-594509
...
363
PULLER, Flywheel BS-19619
...
455
CUP, Flywheel BS-84013130
...
635
BOOT, Spark Plug (Part Information Located In Cylinder Head Group) BS-692076
...
668
SPACER BS-590546
...
742
RETAINER, E Ring BS-93941
...
937
SPLINE, Starter BS-799420
...
1005A
FAN, Flywheel BS-595182
...
1084
CONNECTOR, Terminal BS-399365S
