Briggs and Stratton 100602-0178-H5

Model: 100602-0178-H5

Back To Assemblies

Save Part Not Listed?
product name

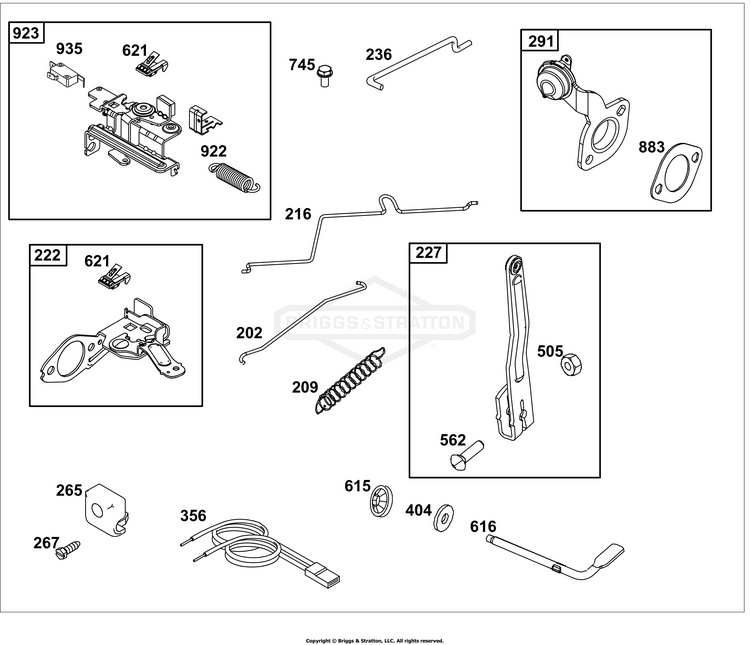

Controls Group

...
...
202
LINK, Mechanical Governor BS-793433
...
209
SPRING, Governor BS-793430
...
216
LINK, Choke BS-793494
...
222
BRACKET, Control BS-793487
...
227
LEVER, Governor Control BS-793516
...
236
LINK, Lockout BS-796161
...
265
CLAMP, Casing BS-690798
...
267
SCREW (Casing Clamp) BS-691044
...
291
THERMOSTAT BS-793498
...
505
NUT (Governor Control Lever) BS-793515
...
562
BOLT (Governor Lever) BS-793514
...
621
SWITCH, Stop BS-692310
...
745
SCREW (Brake) BS-793491
...
922
SPRING, Brake BS-692135
...
923
BRAKE BS-796635
...
935
SWITCH, Interlock BS-499421
