Briggs and Stratton 100602-0036-H5

Model: 100602-0036-H5

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

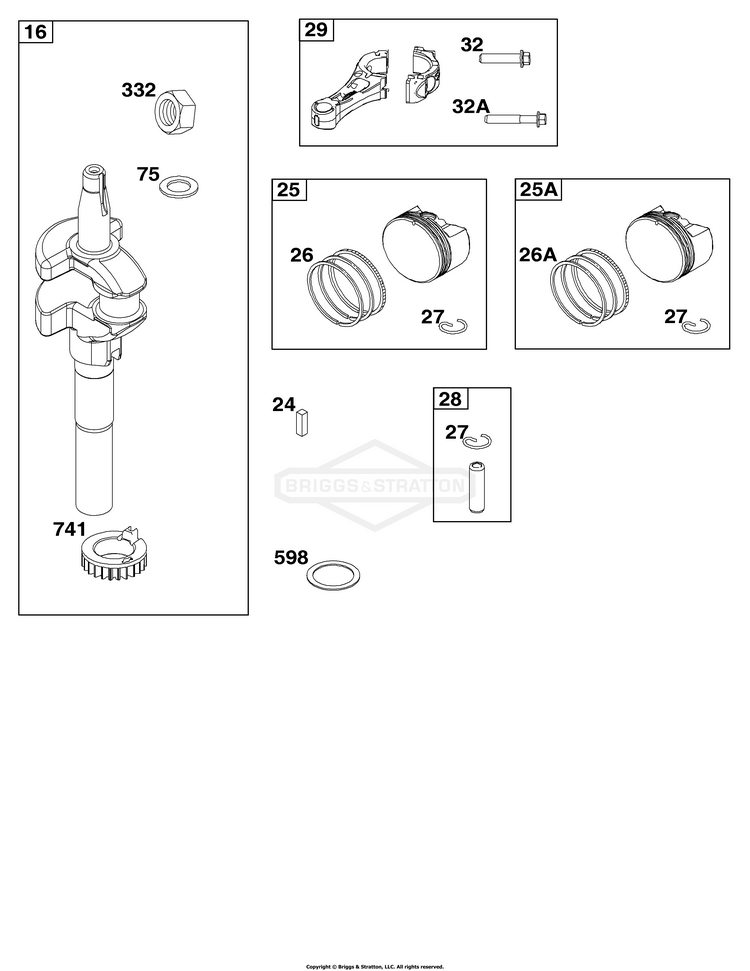

Crankshaft Group

...
...
16
CRANKSHAFT BS-793429
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY Used Before Code Date 18100100 BS-793519
...
25
PISTON ASSEMBLY (.020" Oversize) Used Before Code Date 18100100 BS-793518
...
25A
PISTON ASSEMBLY Used After Code Date 18093000 BS-84003117
...
25A
PISTON ASSEMBLY (.020" Oversize) Used After Code Date 18093000 BS-84003120
...
26
SET, Ring Used Before Code Date 18100100 BS-793435
...
26
SET, Ring (.020" Oversize) Used Before Code Date 18100100 BS-793517
...
26A
SET, Ring Used After Code Date 18093000 BS-84003118
...
26A
SET, Ring (.020" Oversize) Used After Code Date 18093000 BS-84003119
...
27
LOCK, Piston Pin BS-691588
...
28
PIN, Counterweight BS-691239
...
29
ROD, Connecting BS-793510
...
32
SCREW (Connecting Rod) BS-691664
...
32A
SCREW (Connecting Rod) BS-695759
...
598
SHIM, End Play (Crankshaft or Camshaft Bearing) BS-592587
...
741
GEAR, Timing BS-793446
