Briggs and Stratton 09P902-0018-H5

Model: 09P902-0018-H5

Back To Assemblies

Save Part Not Listed?
product name

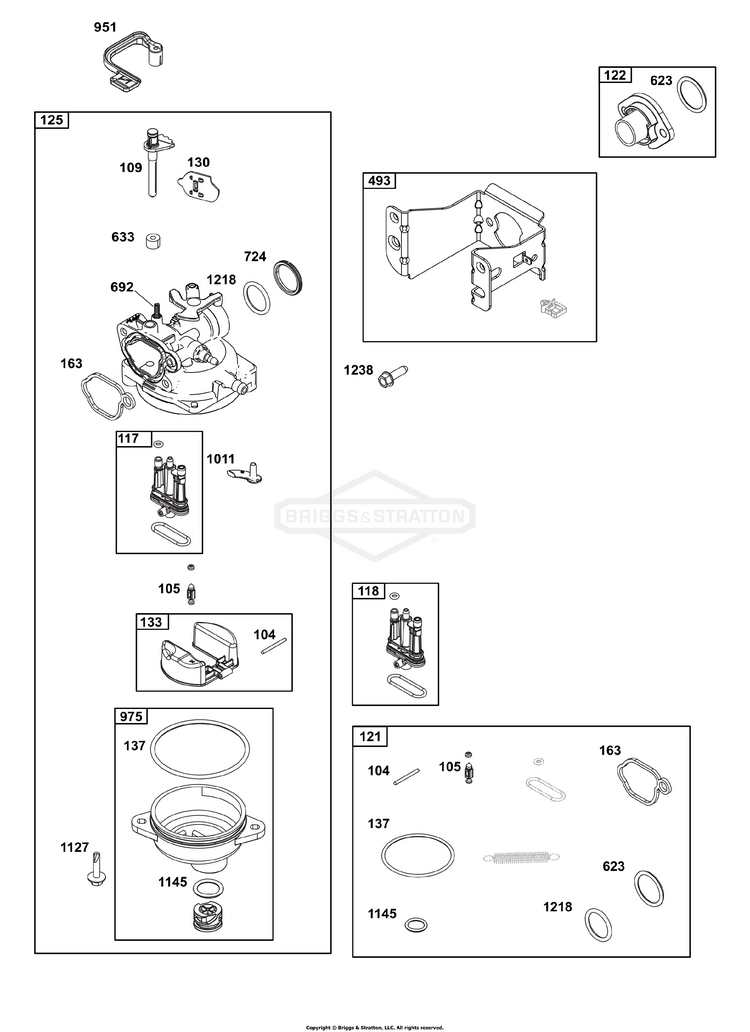

Carburetor Group

...
...
104
PIN, Float Hinge BS-590558
...
105
VALVE, FLOAT NEEDLE BS-84013086
...
109
SHAFT, Choke BS-597117
...
117
JET-MAIN (Standard) BS-597547
...
118
JET, MAIN (High Altitude) BS-597548
...
121
KIT, CARBURETOR OVERHAUL (Service Kits can include parts not for this engine.) BS-84013087
...
122
SPACER, Carburetor BS-590549
...
125
CARBURETOR BS-84001279
...
130
VALVE, Choke BS-597444
...
133
FLOAT, Carburetor BS-591120
...
137
GASKET, Float Bowl BS-594633
...
163
GASKET, Air Cleaner BS-799580
...
493
BRACKET, Mounting BS-593330
...
623
SEAL, O-Ring (Carburetor Spacer) BS-799581
...
633
SEAL, Choke/Throttle Shaft BS-84002188
...
692
SPRING, Detent BS-590931
...
724
RETAINER, Seal BS-697478
...
951
LEVER, Choke BS-597442
...
975
BOWL, Float BS-594632
...
1011
TUBE, Vent BS-84006438
...
1127
SCREW (Float Bowl To Carburetor Body) BS-590554
...
1145
SEAL, O-Ring BS-597314
...
1218
SEAL, O-Ring (Carburetor) BS-270344S
...
1238
SCREW (Carburetor Spacer) BS-590562
