Briggs and Stratton 09P802-0023-H5

Model: 09P802-0023-H5

Back To Assemblies

Save Part Not Listed?
product name

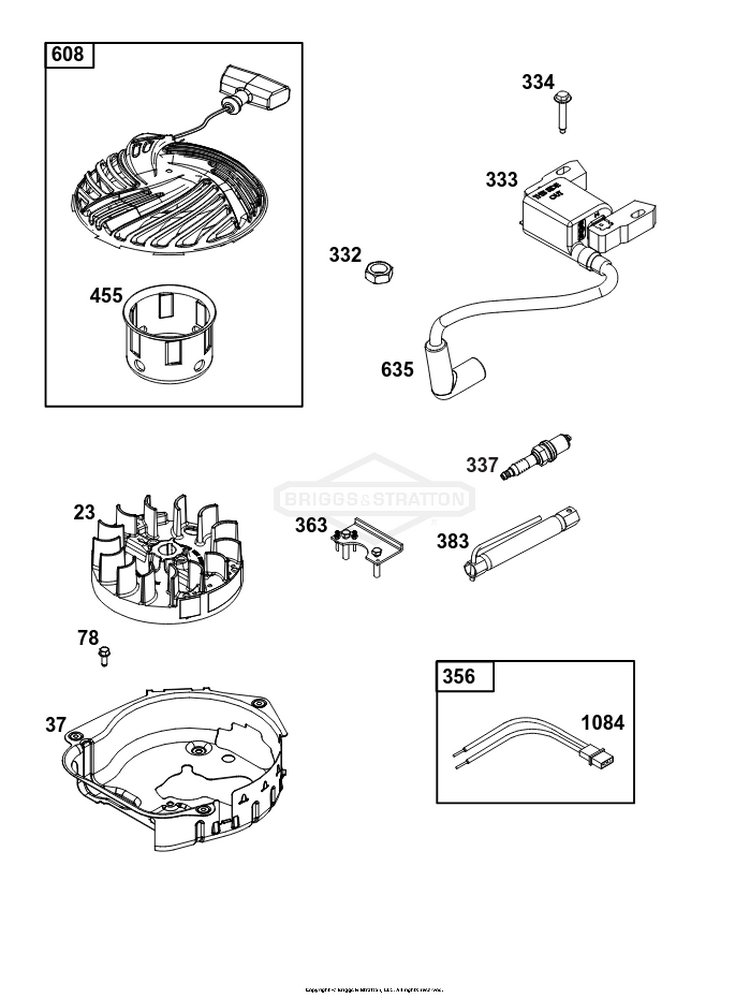

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-590544
...
37
GUARD, Flywheel BS-594729
...
78
SCREW (Flywheel Guard) BS-793480
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, MAGNETO BS-84005272
...
334
SCREW (Magneto Armature) BS-691061
...
356
WIRE, Stop BS-796798
...
363
PULLER, Flywheel BS-19619
...
455
CUP, Flywheel BS-84004349
...
608
STARTER, Rewind BS-84004350
...
635
BOOT, Spark Plug BS-692076
...
1084
CONNECTOR, Terminal BS-399365S
Schematic Image Zoomed
