Briggs and Stratton 09P705-0258-H5

Model: 09P705-0258-H5

Back To Assemblies

Save Part Not Listed?
product name

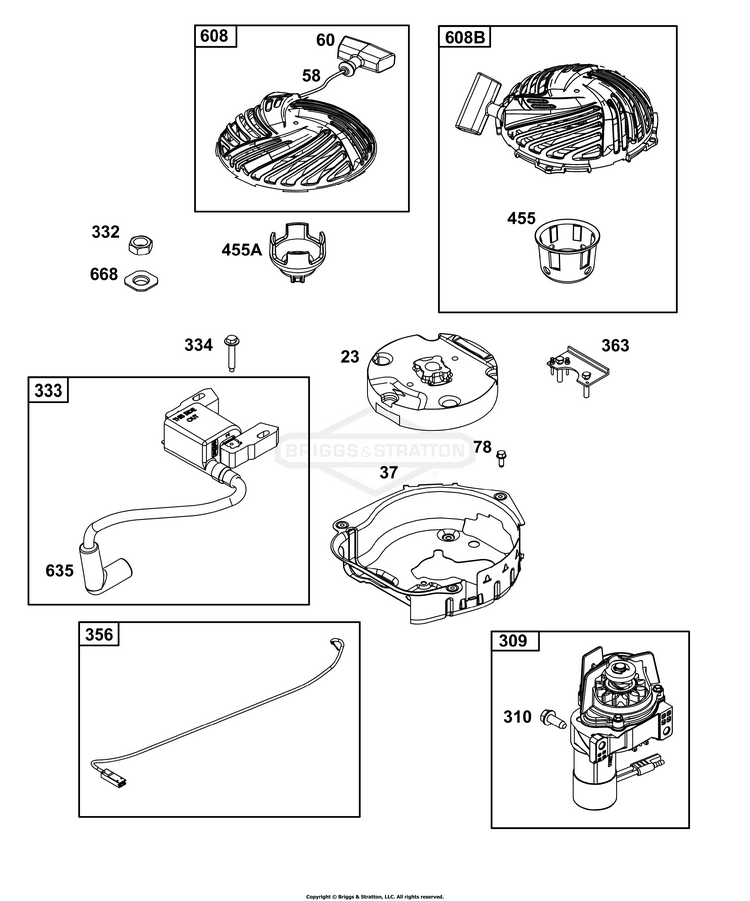

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-596753
...
37
GUARD, Flywheel BS-597185
...
58
ROPE, Starter BS-591108
...
60
GRIP, Starter Rope BS-691915
...
78
SCREW (Flywheel Guard) BS-793480
...
309
MOTOR, Starter BS-84004218
...
310
SCREW (Starter Motor) BS-691127
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, MAGNETO BS-84005272
...
334
SCREW (Magneto Armature) BS-691061
...
356
WIRE, Stop BS-692390
...
363
PULLER, Flywheel BS-19619
...
455
CUP, Flywheel (Only For Use With Reference 608B) BS-84004349
...
455A
CUP, Flywheel (Only For Use With Reference 608) BS-84013130
...
608
STARTER, REWIND (Only For Use With Reference 455A) BS-84010941
...
608B
STARTER, Rewind (Must Be Replaced As A Kit) BS-84004350
...
668
SPACER (Only For Use With Reference 608) BS-590546
