Briggs and Stratton 08P502-0016-H5

Model: 08P502-0016-H5

Back To Assemblies

Save Part Not Listed?
product name

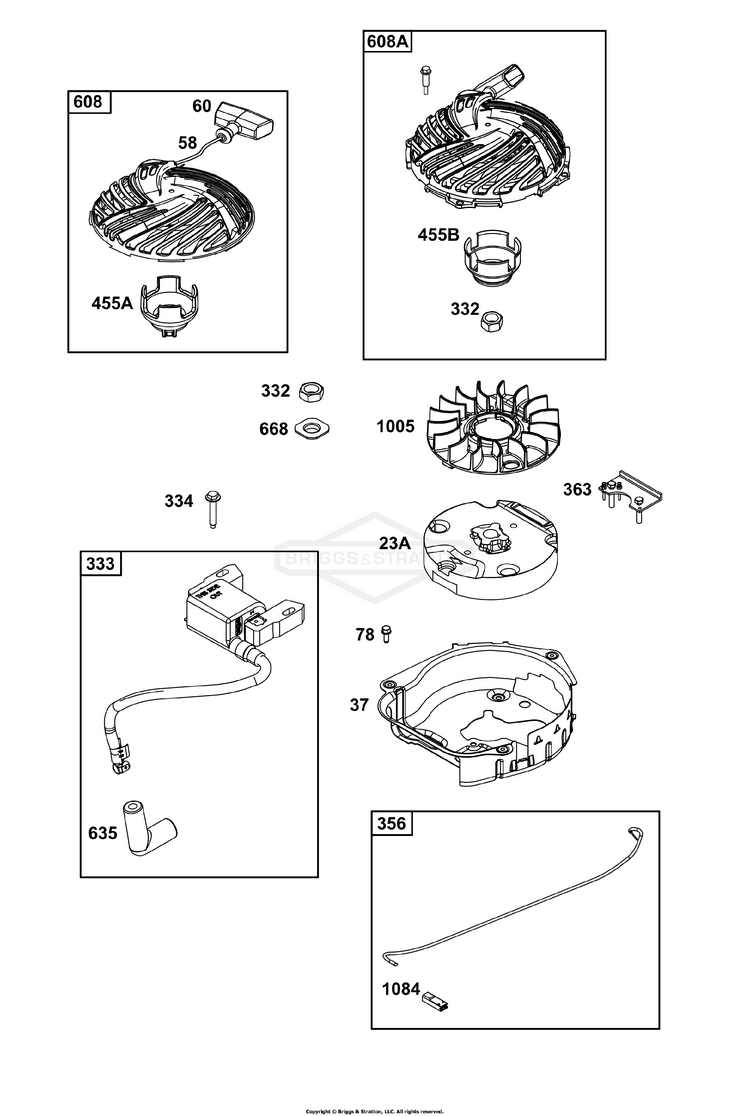

Flywheel, Ignition, and Starter Group

...
...
23A
FLYWHEEL BS-592005
...
37
GUARD, Flywheel BS-594726
...
58
ROPE, Starter BS-591108
...
60
GRIP, Starter Rope BS-691915
...
78
SCREW (Flywheel Guard) BS-793480
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, MAGNETO BS-84005272
...
334
SCREW (Magneto Armature) BS-691061
...
356
WIRE, Stop BS-692390
...
363
PULLER, Flywheel BS-19619
...
455A
CUP, Flywheel Used Before Code Date 19031800 BS-84013130
...
455B
CUP, Flywheel Used After Code Date 19031700 BS-84013130
...
608
STARTER, REWIND Used Before Code Date 25040200 BS-84010941
...
608A
STARTER, Rewind Used After Code Date 25040100 BS-84013626
...
668
SPACER BS-590546
...
1005
FAN, Flywheel BS-592050
...
1084
CONNECTOR, Terminal BS-399365S
