Briggs and Stratton 083152-1174-H5

Model: 083152-1174-H5

Back To Assemblies

Save Part Not Listed?
product name

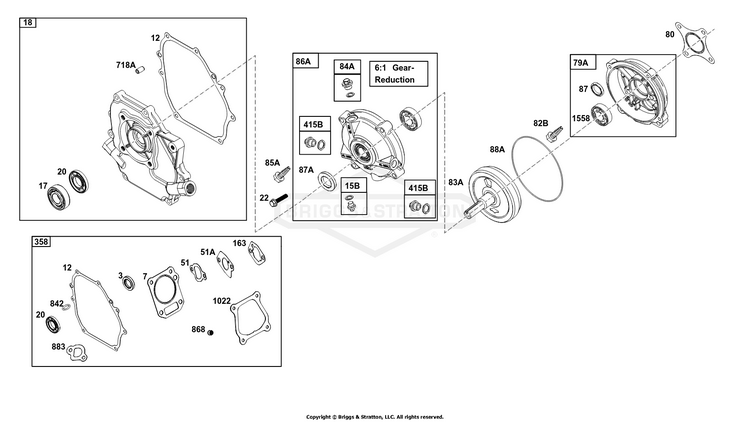

Crankcase Cover/Sump Group

...
...
12
GASKET, Crankcase BS-797211
...
15B
PLUG, Oil Drain BS-792750
...
18
COVER, CRANKCASE BS-84004386
...
20
SEAL, Oil (PTO Side) BS-797330
...
22
SCREW (Crankcase Cover/Sump) BS-797656
...
79A
CASE, Gear Reduction BS-792746
...
80
GASKET, Gear Case BS-792755
...
82B
SCREW (Gear Reduction Case) BS-792753
...
83A
SHAFT, Auxiliary Drive BS-792756
...
84A
PLUG, Breather BS-792759
...
85A
SCREW (Gear Cover) BS-690711
...
86A
COVER-GEAR BS-792748
...
87
SEAL, Oil BS-299819S
...
87A
SEAL, Gear Reduction BS-792752
...
88A
GASKET, Gear Cover/Housing BS-792760
...
415B
PLUG BS-792749
...
1558
BEARING-BALL BS-99158
