product name

Briggs and Stratton 083132-0919-H5 Engine

Model: 083132-0919-H5

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

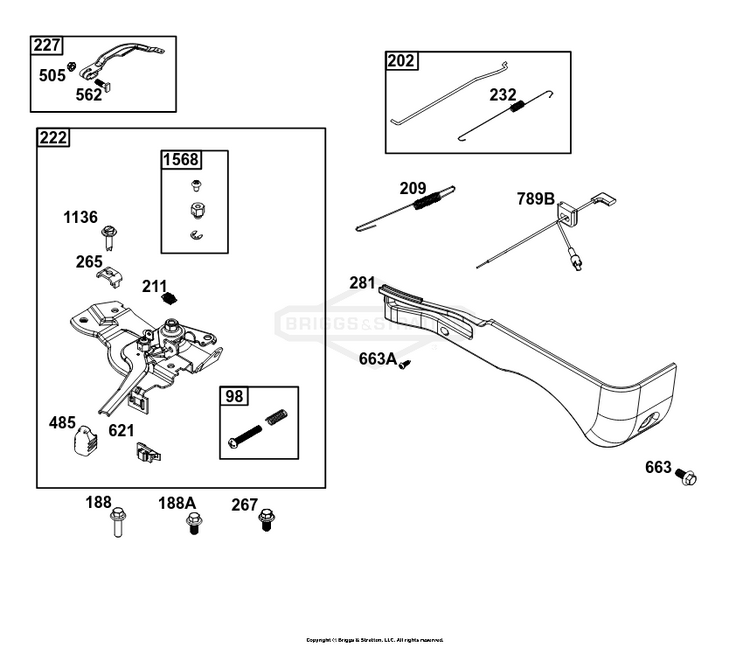

Controls Group

...
...
98
KIT, Idle Speed BS-797333
...
188
SCREW (Control Bracket) BS-797686
...
188A
SCREW (Control Bracket) BS-798618
...
202
LINK, Mechanical Governor BS-797233
...
209
SPRING, Governor BS-797236
...
211
SPRING, Governed Idle BS-797337
...
222
BRACKET, Control BS-591024
...
227
LEVER, Governor Control BS-84005261
...
232
SPRING/LINK, Governor BS-797232
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-699492
...
281
PANEL, Control BS-591048
...
485
KNOB, Control BS-797339
...
505
NUT (Governor Control Lever) BS-690939
...
562
BOLT (Governor Control Lever) BS-797230
...
621
SWITCH, Stop BS-692310
...
663
SCREW (Control Panel) BS-799846
...
663A
SCREW (Control Panel) BS-591049
...
789B
HARNESS, Wiring BS-797706
...
1136
SCREW (Control Bracket) BS-597020
...
1568
RETAINER, Link BS-590378
Schematic Image Zoomed
