Briggs & Stratton CMXGWAS020733-01 - 2,800 PSI Craftsman

Model: CMXGWAS020733-01 - 2,800 PSI

Save Part Not Listed?
product name

Main Unit

...
...
1
BASE (Includes Item 3) BS-84001724
...
2
HANDLE BS-84001718
...
3
PLUG, Hole BS-189332GS
...
4
DECAL-Warning Spark BS-705851
...
5
KIT-BILLBOARD BS-84001735
...
6
CLIP BS-B1797GS
...
7
PUMP BS-84003457
...
8
HOSE-CHEMICAL BS-705076
...
9
KIT, Hardware, Pump Mounting BS-706617
...
10
Kit-Nozzles BS-84004410
...
11
Nozzle-QC, Red BS-84004411
...
12
NOZZLE-QC, YELLOW BS-709746
...
13
NOZZLE, QC, White BS-195983AMGS
...
14
NOZZLE, QC, Black BS-198841GS
...
15
WIREFORM BS-84001723
...
16
TAG, Warning, English BS-705854
...
17
KEY BS-23139GS
...
18
WAND-QC BS-706595
...
19
KIT-CHEMICAL TANK BS-84001725
...
20
CLIP BS-195964GS
...
21
CAP BS-84001722
...
22
GUN BS-84003228
...
23
HOSE ASSEMBLY BS-84006753
...
24
WHEEL BS-84001734
...
25
AXLE BS-314957GS
...
26
KIT-O-RING BS-705001
...
27
Washer, Flat 1/2 BS-22304GS
...
28
PUSHNUT BS-315543GS
...
29
OIL-4 CYCLE 30W 18OZ. BS-100005
...
30
KIT-GUIDE ROPE BS-84001719
...
31
MOUNT-VIBRATION BS-707979
...
32
STRAP BS-84001717
...
33
KIT-HANDLE BS-84001720
...
900
* ENGINE (Refer to Note:*) BS-104M02-0126-F1
...
--
PUMP Saver (Optional Accessory - Not Included) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Included) BS-6059
...
--
PERFECT MIX CONCRETE BRICK & TILE CLEANER (Optional Accessory - Not Included) BS-6060

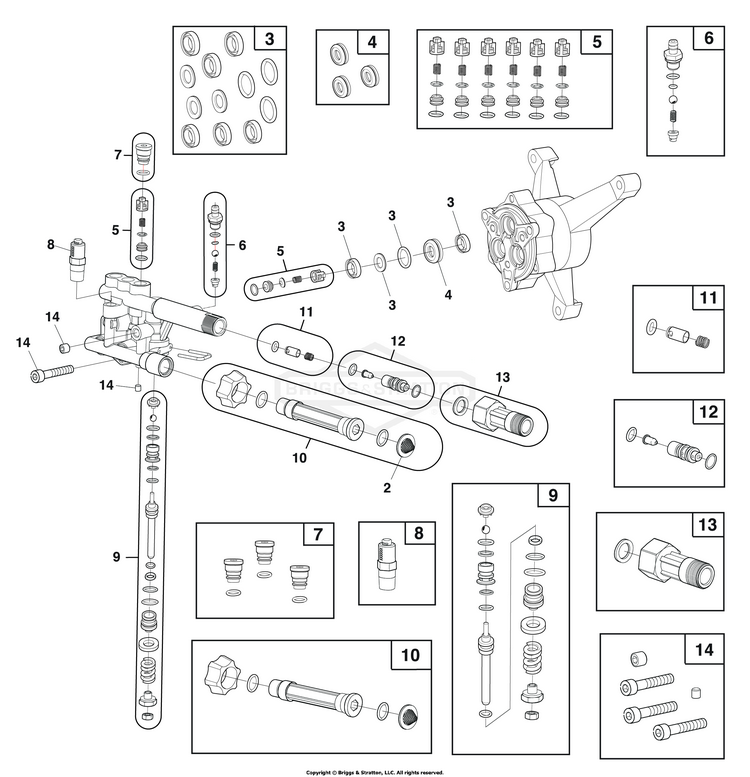

Pump

...
...
2
FILTER, Garden Hose BS-B2384GS
...
3
KIT-WATER SEAL BS-84003681
...
4
KIT-SEAL RETAINER BS-84003682
...
5
KIT-VALVE BS-709999
...
6
KIT-CHEMICAL INJECT BS-84003684
...
7
KIT-PLUG BS-84003685
...
8
VALVE-THERMAL RELIEF BS-709998
...
9
KIT-UNLOADER BS-709990
...
10
KIT-INLET WATER BS-84003688
...
11
KIT-TRAPPER VALVE BS-84003689
...
12
KIT-VENTURI REPAIR BS-84003690
...
13
KIT-OUTLET WATER BS-84003691
...
14
KIT-PUMP HARDWARE BS-84003692
...
--
PUMP Saver (Optional Accessory) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory) BS-6160
