Briggs & Stratton 9785-1 - 580.328391, 8,000 Watt Craftsman

Model: 9785-1 - 580.328391, 8,000 Watt

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Control Panel

...
...
1
Control Panel BS-95909
...
2
Control Box BS-95906
...
3
120/240V, 30 Amp Locking Type Outlet BS-43437
...
4
OUTLET, 20A,120V BS-68759GS
...
5
OUTLET-120V TL30A BS-705932
...
6
BOARD, System Control BS-83970GS
...
7
HRNSS, ENG BS-95996GS
...
8
GROMMET, Rubber Connector BS-84134GS
...
9
OUTLET, 50A, 240V BS-74191GS
...
10
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
11
STAND OFF BS-93929GS
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
#8 Lockwasher BS-22264
...
14
SCREW, M3-0.5 x 10mm BS-43181GS
...
15
M40.7 x 10mm Screw BS-75475
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
19
WASHER, M3 Lock BS-43182GS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, Run - Stop BS-78653GS
...
22
SCREW BS-93986GS
...
23
MS-0.8 x 12mm Screw BS-91526
...
24
WASHER, M5 Lock BS-49226GS
...
25
WASHER, Rivet, 3/16 BS-1910531SM
...
26
BREAKER-CIRCUIT 20A BS-209872GS
...
27
120v/20A Twistlock Outlet BS-74190
...
31
BLOCK, 50 A, 3 - Terminal BS-92953GS
...
32
SCREW BS-80077GS
...
33
SCREW BS-791680
...
34
TRANSFORMER, Idle Control BS-84028GS
...
35
3/4" Hex Stand-Off BS-64525
...
36
#6-32 x 3/8" Tap Screw BS-64526

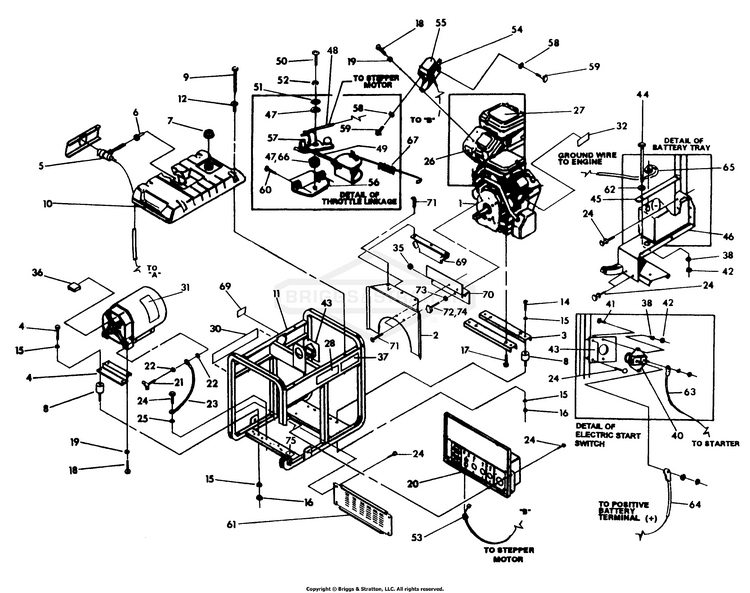

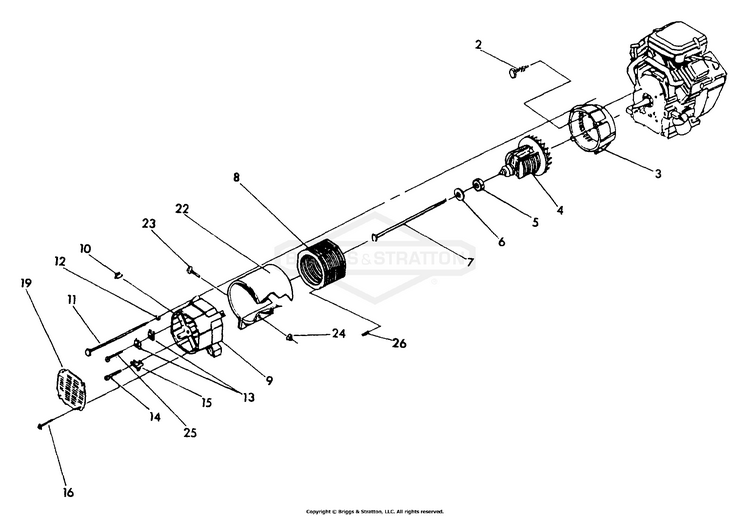

Generator

...
...
2
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
3
HOUSING, Engine Adapter BS-66365GGS
...
4
ASSY, RTR, 7200VR170 BS-92553GGS
...
5
BEARING BS-65791GS
...
6
FLAT WASHER (SPECIAL) BS-67451
...
7
HHCS, 5/16-24 X 11 BS-51810GS
...
8
ASSY, STATOR, 8500VR170, 10A-BC BS-94982GGS
...
9
REAR BEARING CARRIER BS-66825B
...
10
GROMMET, RUBBER BS-67022GS
...
11
BOLT BS-66449LGS
...
12
CAP BS-5022097SM
...
13
RECTIFIER, BATTERY CHARGE BS-65795GS
...
14
HHCS, M5-0.8 X 16 BS-49815GS
...
15
BRUSH HOLDER ASSEMBLY BS-80812
...
16
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
19
COVER, Bearing Carrier BS-B4871GS
...
22
ALTERNATOR WRAPPER BS-81887D
...
23
SCREW, M5 x 0.8 x 12 BS-52618GS
...
24
NUT, LOCKING-M5 BS-52856GS
...
25
TAPTITE, M5-0.8 x 30 LG. BS-66849CGS
...
26
PIN, ROLL 4MM x 10 BS-81917GS

Generator Cradle

...
...
1
16 HP V-Twin Engine BS-85110
...
2
Heat Shield BS-98216
...
3
Engine Support BS-77304
...
4
SPPRT, ALT BS-78512GS
...
5
Kit, Valve BS-192980GS
...
6
Kit, Valve BS-192980GS
...
7
CAP, Fuel Tank BS-846987
...
8
MNT, VBRTN, 30 DURO BS-35097GS
...
9
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
10
ASSY, TANK, FUEL, TEST, 5 GAL BS-93615GS
...
11
CRDL, VTWIN BS-92558GS
...
12
GROMMET, TANK BS-83465GS
...
14
WHEEL ASSEMBLY BS-84010756
...
15
LOCKWASHER, SPLIT 3/8 BS-703454
...
16
DECAL, ProCut Z Text BS-5022241
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
CAPSCREW M8-1.25X16 BS-703988
...
19
WASHER, Lock BS-22129GS
...
20
PNL, CNTRL, 8000, ES, SRS BS-95919AGS
...
21
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
23
WIRE, Ground BS-195373GS
...
24
SCREW BS-313085GS
...
25
WASHER, #10 Ext. Shakeproof BS-23762GS
...
26
Engine Decal BS-79661H
...
27
DECAL, AIR BOX, 16H VTW BS-77581GS
...
28
DECAL, Danger BS-194799GS
...
29
Control Panel Decal BS-95922
...
30
DECAL, PNL, SIDE, SRS-8K BS-95923GS
...
31
Data Plate Decal BS-77026
...
32
DECAL, Hot Muffler BS-77816GS
...
35
GROMMET, Rubber BS-62265GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
DECAL, START INSTRUCTIONS BS-93826GS
...
38
CAP BS-5022097SM
...
40
Starter Switch BS-77282
...
41
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
42
1/4"-20 Hex Nut BS-22127
...
43
BRACKET, STARTER SWITCH BS-78289GS
...
44
HHCS, 1/4-20 X 7 BS-45000GS
...
45
CONTROL, Hydro, Right BS-5044951B
...
46
Battery Tray BS-84650
...
47
WASHER, Nylon BS-96716GS
...
48
LINKAGE, Stepper Motor to Bell Crank BS-95920GS
...
49
LINKAGE, Bell Crank to Throttle BS-95921GS
...
50
#10-32 x 3/4" Screw BS-36935
...
51
WASHER, M5 BS-51713GS
...
52
WASHER, M5 Lock BS-49226GS
...
53
GROMMET, Rubber BS-62265GS
...
54
Stepper Motor BS-92102
...
55
BRACKET BS-200107GS
...
56
PLATE, Adjust BS-95349GS
...
57
BRACKET, Bell Crank BS-95348GS
...
58
WASHER-LOCK BS-70005GS
...
59
SCREW BS-43146GS
...
60
M5-0.8 x 20mm Screw BS-74041
...
62
ASSY, Wire BS-18253621GS
...
63
WIRE-A, 6AWG, RED, #13, 597MM BS-18353621GS
...
64
WIRE-A, 8AWG, BLK, #55, 597MM BS-18453621GS
...
65
SPACER BS-96378GS
...
66
SPRING BS-96717GS
...
69
Heat Shield BS-93074
...
70
BRCKT, HTSHLD BS-98214GS
...
71
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
72
BAIL ZONE CONTROL C BS-7026539YP
...
73
BUSHING, FLANGE, 7/8" BS-5022250SM
...
74
Thread Locker BS-86495
...
75
DECAL, 1-800 BS-96409GS

Handle & Wheel

...
...
1
HANDLE BS-93393B
...
2
WHEEL BS-93682
...
3
Axle BS-191267WGS
...
4
PIN, Quick Release BS-87005GS
...
5
WHEEL SPACER BS-93685
...
6
SCREW BS-691666
...
7
VIBE MOUNT, with Washer BS-191413GS
...
8
SCREW BS-42909GS
...
9
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
10
WASHER, 5/8" SAE (WHEEL) BS-5025281SM
...
11
CAPSCREW M8-1.25X16 BS-703988
...
13
SCREW BS-39287GS

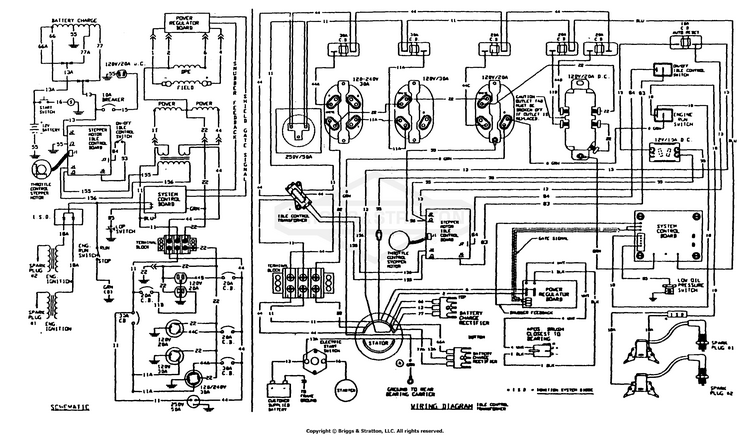

Wiring Diagram

...
