Briggs & Stratton 9784-1 - 580.327071, 8,000 Watt Craftsman

Model: 9784-1 - 580.327071, 8,000 Watt

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Control Panel

...
...
1
PNL, CNTRL BS-92354GS
...
2
CONTROL BOX BS-92355
...
3
120/240V 30 A TWISTLOCK OUTLET BS-43437
...
4
OUTLET, 20A,120V BS-68759GS
...
5
OUTLET-120V TL30A BS-705932
...
6
BOARD, System Control BS-83970GS
...
7
PIN, Shaft BS-691616
...
8
RUBBER GROMMET CONNECTOR BS-81434
...
9
OUTLET, 50A, 240V BS-74191GS
...
10
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
13
GASKET-ENGINE BASE BS-67547
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
#8 LOCKWASHER BS-22264
...
14
SCREW, M3-0.5 x 10mm BS-43181GS
...
15
M4-0.7 x 10mm SCREW BS-75475
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
19
WASHER, M3 Lock BS-43182GS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, Run - Stop BS-78653GS
...
22
#6-32 x 3/8" SCREW BS-64526
...
23
M5-0.8 x 12mm SCREW BS-52749
...
24
WASHER, M5 Lock BS-49226GS
...
25
WASHER, Rivet, 3/16 BS-1910531SM
...
26
BREAKER-CIRCUIT 20A BS-209872GS
...
27
120V/20A TWISTLOCK OUTLET BS-74190
...
28
BLOCK, 50 A, 3 - Terminal BS-92953GS
...
29
PPHMS, M4-0.7 x 16 BS-75476GS

Cradle & Generator

...
...
1
V-twin Engine BS-85109
...
2
Heat Shield BS-98216
...
3
Engine Support BS-77304
...
4
SPPRT, ALT BS-78512GS
...
5
Kit, Valve BS-192980GS
...
6
Kit, Valve BS-192980GS
...
7
Fuel Tank Cap BS-84582
...
8
MNT, VBRTN, 30 DURO BS-35097GS
...
9
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
10
ASSY, TANK, FUEL, TEST, 5 GAL BS-93615GS
...
11
CRDL, VTWIN BS-92558GS
...
12
GROMMET, TANK BS-83465GS
...
14
WHEEL ASSEMBLY BS-84010756
...
15
LOCKWASHER, SPLIT 3/8 BS-703454
...
16
DECAL, ProCut Z Text BS-5022241
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
CAPSCREW M8-1.25X16 BS-703988
...
19
WASHER, Lock BS-22129GS
...
20
PNL, CNTRL, 8000XL, SRS BS-92555AGS
...
21
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
23
WIRE, Ground BS-195373GS
...
24
SCREW BS-313085GS
...
25
WASHER, #10 Ext. Shakeproof BS-23762GS
...
26
Engine Decal BS-79661G
...
27
DECAL, AIR BOX, 16H VTW BS-77581GS
...
28
DECAL, Danger BS-194799GS
...
29
Control Panel Decal BS-92519
...
30
Unit Decal BS-92668
...
31
Data Plate Decal BS-78837
...
32
DECAL, Hot Muffler BS-77816GS
...
35
GROMMET, Rubber BS-62265GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
DECAL, START INSTRUCTIONS BS-93826GS
...
38
DECAL, 1-800 BS-96409GS
...
39
Fuel Shut-off Decal BS-73054
...
40
Heat Shield BS-93074
...
41
BRCKT, HTSHLD BS-98214GS
...
42
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
43
7/16-14 X 3/4" Bolt BS-26359
...
44
BUSHING, FLANGE, 7/8" BS-5022250SM
...
45
Loctite 272 Thread Locker Contact Generac For Quantity Required BS-86495

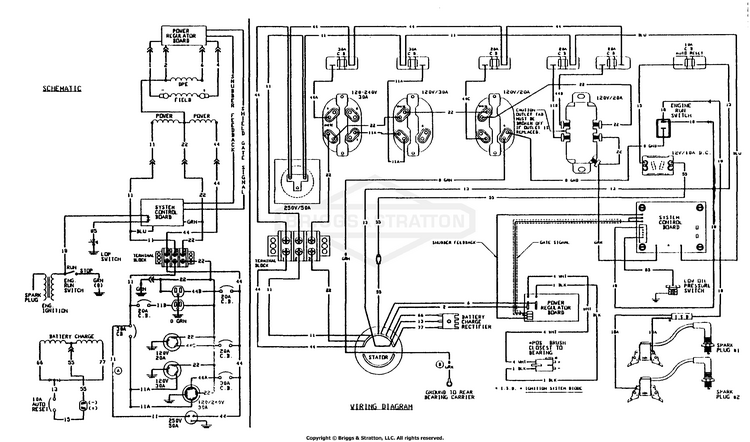

Electrical Data

...

No Parts Available for this Schematic

Engine Part 3

...
...
23
807531 - Magneto flywheel & ring gear assembly BS-70166
...
55
492193 - Starter housing BS-79252
...
56
280918 - Rewind starter pulley BS-79253
...
57
492194 - Rewind starter spring BS-79254
...
58
66894 - Rope starter - cut to 69-1/2" BS-79255
...
59
490653 - Starter handle insert BS-79256
...
60
490652 - Rewind starter handle BS-79257
...
69
94464 - Pulley washer BS-79258
...
69A
94462 - Washer retainer BS-79259
...
75
805007 - Spring washer BS-67198N
...
305
805406 - Screw BS-66886
...
332
805021 - Hex nut BS-67890
...
333
492341 - Magneto armature BS-67891
...
334
805407 - Mtg. Screw BS-72356
...
351
HHCS, M5-0.8 X 12, W/LW BS-70116GS
...
354
805496 - Nylock nut BS-79289
...
356
807594 - Ground wire (cyl. #1) BS-79290
...
356A
COTTER PIN, 3/8 (cyl. 02) BS-703355
...
363
19203 - Flywheel puller BS-79292
...
455
805153 - Starter hub BS-70198A
...
456
224228 - Retainer BS-79293
...
459
(C) PIN SPIROL 3/16 BS-7079294YP
...
461
HN 1/2F NYLOCK BS-7079295YP
...
515
262565 - Dog spring BS-79298
...
515A
262564 - Torsion spring BS-79299
...
520
807527 - Ground terminal BS-70520
...
851
COVER RH BS-7075272YP

Generator

...
...
2
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
3
HOUSING, Engine Adapter BS-66365GGS
...
4
ROTOR ASSEMBLY BS-92553
...
5
BEARING BS-65791GS
...
6
FLAT WASHER (SPECIAL) BS-67451
...
7
HHCS, 5/16-24 X 11 BS-51810GS
...
8
STATOR ASSEMBLY BS-92350
...
9
REAR BEARING CARRIER BS-66825B
...
10
GROMMET, RUBBER BS-67022GS
...
11
BOLT BS-66449LGS
...
12
CAP BS-5022097SM
...
13
RECTIFIER, BATTERY CHARGE BS-65795GS
...
14
HHCS, M5-0.8 X 16 BS-49815GS
...
15
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
16
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
19
COVER, Bearing Carrier BS-B4871GS
...
22
ALTERNATOR WRAPPER BS-81887D
...
23
SCREW, M5 x 0.8 x 12 BS-52618GS
...
24
NUT, LOCKING-M5 BS-52856GS

Handle & Wheel

...
...
1
HANDLE BS-93393B
...
2
WHEEL BS-93682
...
3
Axle BS-191267WGS
...
4
PIN, Quick Release BS-87005GS
...
5
WHEEL SPACER BS-93685
...
6
SCREW BS-691666
...
7
VIBE MOUNT, with Washer BS-191413GS
...
8
SCREW BS-42909GS
...
9
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
10
WASHER, 5/8" SAE (WHEEL) BS-5025281SM
...
11
CAPSCREW M8-1.25X16 BS-703988
...
13
SCREW BS-39287GS
