Briggs & Stratton 9514-0 - 580.327250, 3,500 Watt Craftsman

Model: 9514-0 - 580.327250, 3,500 Watt

Save Part Not Listed?
product name

Popular Parts

Popular Parts

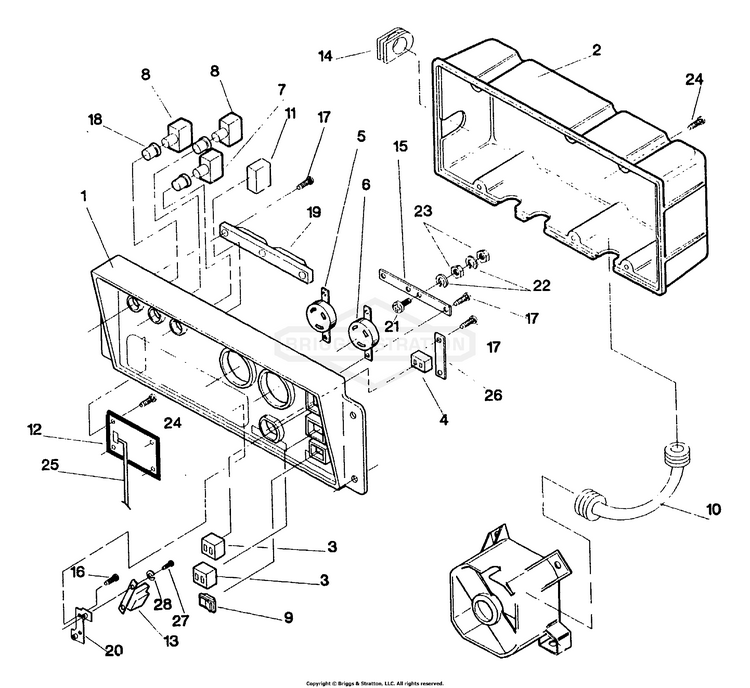

Control Panel

...
...
1
PANEL, Control BS-83976GS
...
2
BOX, Control BS-83975GS
...
3
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
4
OUTLET, 12 V DC BS-66821GS
...
5
OUTLET, 120/240 V AC, 20 A Locking BS-68867CGS
...
6
OUTLET-120V TL30A BS-705932
...
7
BREAKER-CIRCUIT 30A BS-706178
...
8
BREAKER, Circuit BS-75207GGS
...
9
SWITCH, Idle Control BS-82538GS
...
10
GROMMET, Rubber Connector BS-84134GS
...
11
BREAKER, Circuit BS-83514GS
...
12
BOARD, System Control BS-83970GS
...
13
IDLE CONTROL TRANSFORMER BS-77278G
...
14
GROMMET, RUBBER BS-67022GS
...
15
BAR, Bus BS-85584GS
...
16
SCREW BS-84543AGS
...
17
SCREW, Phillips, Head 3.5 x 18 BS-84543CGS
...
18
CAP, Breaker, Circuit BS-84198GS
...
19
BAR, Circuit Breaker Retaining BS-84197GS
...
20
TRANSFORMER BRACKET BS-86265
...
21
PPHMS, M4-0.7 x 16 BS-75476GS
...
22
M4 LOCK WASHER BS-22264
...
23
NUT, M4-0.7 Hex BS-51715GS
...
24
SCREW BS-84543BGS
...
25
ASSEMBLY, Wire Harness BS-84335GS
...
26
BAR, DC Outlet Retaining BS-82542GS
...
27
SCREW, M3-0.5 x 10mm BS-43181GS
...
28
PULLEY, Taper Lock BS-5022159SM

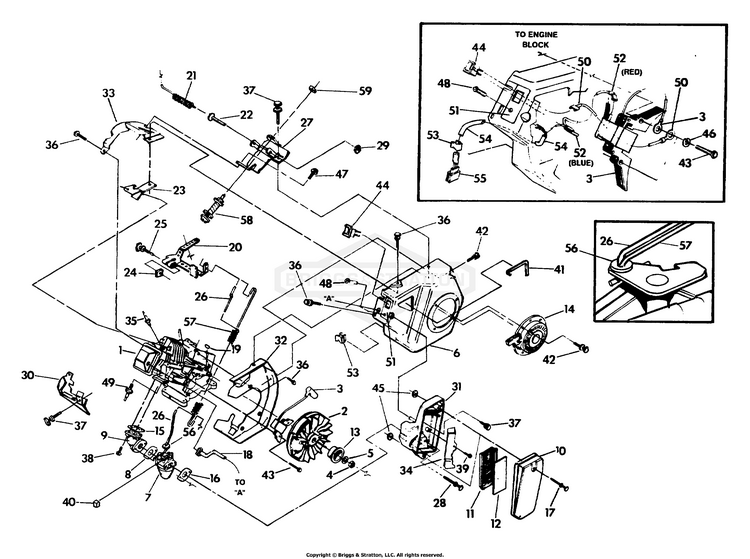

Engine Accessory Assembly

...
...
1
6 HP HS LONG BLOCK BS-83561
...
2
FLYWHEEL ASSEMBLY BS-84426A
...
3
IGNITION COIL ASSEMBLY BS-81675
...
4
M16-1.5 HEX NUT BS-81810
...
5
CONICAL WASHER BS-83312
...
6
COMPLETE BLOWER HOUSING BS-85118
...
7
CARBURETOR HS ASSEMBLY BS-83666B
...
8
CARBURETOR/MANIFOLD GASKET BS-78631
...
9
HS INTAKE MANIFOLD BS-77197
...
10
AIR CLEANER COVER BS-78608
...
11
AIR FILTER ELEMENT BS-84892
...
12
AIR FILTER PRE-CLEANER BS-78602
...
13
RECOIL CUP BS-83015
...
14
RECOIL ASSEMBLY BS-81671
...
15
MANIFOLD/HEAD GASKET BS-82776
...
16
CARBURETOR/AIR CLEANER GASKET BS-78632
...
17
AIR CLEANER COVER BOLT BS-78609
...
18
BREATHER HOSE BS-82755
...
19
4 x 19 WOODRUFF KEY BS-82774
...
20
GOVERNOR LEVER BS-83779
...
21
GOVERNOR SPRING BS-78604
...
22
GOVERNOR ADJUSTING SCREW BS-83502
...
23
AIR DEFLECTOR BS-83198
...
24
M6-1.0 SQUARE NUT BS-80317
...
25
M6-1.0 x 30mm CAPSCREW BS-83532
...
26
GOVERNOR ROD BS-77199
...
27
GOVERNOR ADJUST BRACKET BS-83781
...
28
CARBURETOR MOUNTING BOLT BS-78643
...
29
M5-0.8 MOUNTING LOCK NUT BS-83503
...
30
BOTTOM WRAPPER BS-83197
...
31
AIR CLEANER BASE BS-78607
...
32
BLOWER HOUSING BACK PLATE BS-786511
...
33
TOP WRAPPER BS-83196
...
34
BREATHER CANAL COVER BS-80303
...
35
PLUG, SPARK BS-84007216
...
36
M6-1.0 x 10mm TAPTITE BOLT BS-45756
...
37
M6-1.0 x 12mm CAPSCREW WITH LOCK WASHER BS-66746
...
38
M6-1.0 x 30mm CAPSCREW WITH LOCK WASHER BS-80316
...
39
No. 8 x 3/8" PLASTITE SCREW BS-59635
...
40
CHOKE LEVER KNOB BS-83504
...
41
AIR CLEANER/BLOWER HOUSING SEAL BS-84867
...
42
M6-1.0 x 10mm CAPSCREW WITH LOCK WASHER BS-81688
...
43
M6-1.0 x 30mm TAPTITE BOLT BS-82981
...
44
SWITCH, Run - Stop BS-78653GS
...
45
NUT, M6 BS-49813GS
...
46
CAP BS-5022097SM
...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
48
LOW OIL INDICATOR LED BS-85272
...
49
8-12 PSI OIL PRESSURE SWITCH BS-60108
...
50
GROUND WIRE ASSEMBLY BS-00285271
...
51
LOS ENGINE DECAL BS-84195
...
52
IGNITION WIRE ASSEMBLY BS-00185271
...
53
CABLE TINNERMAN CLAMP BS-84274
...
54
No. 3, 145mm SLEEVING BS-85620
...
55
3-PIN, MALE HOUSING BS-84329
...
56
CARBURETOR WEAR WASHER BS-85953
...
57
ANTI-LASH EXTENSION SPRING BS-86037
...
58
IDLE CONTROL COIL BS-83782
...
59
M8-1.25 JAM HEX NUT BS-66311

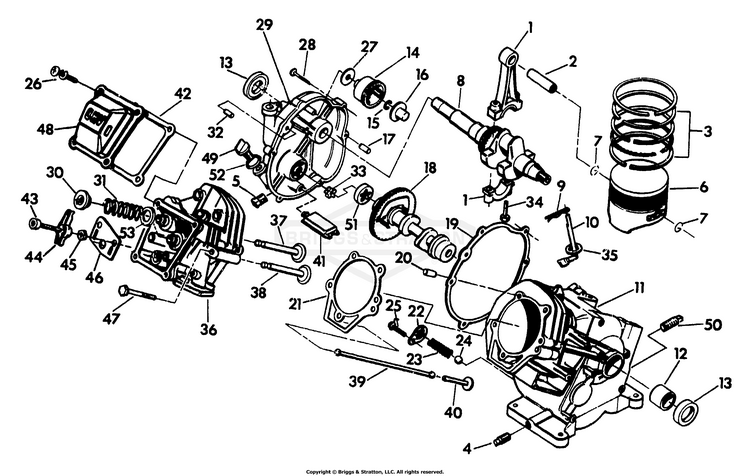

Engine Block Assembly

...
...
1
CONNECTING ROD WITH CAP & BOLT BS-78621
...
2
PISTON PIN BS-76389
...
3
PISTON RING SET BS-78660
...
4
1/4" MAGNETIC PIPE PLUG BS-81694
...
5
1/8" NPTF PIPE PLUG BS-72683
...
6
PISTON BS-76386
...
7
(C) BELT SHIELD WELD BS-7047947YP
...
8
CRANKSHAFT ASSM. W/GEAR BS-83337
...
9
GOVERNOR ARM "R" PIN BS-78658
...
10
GOVERNOR ARM BS-76354
...
11
CRANKCASE BS-83136
...
12
SLEEVE BEARING BS-76439
...
13
CRANKSHAFT SEAL BS-81695
...
14
GOVERNOR GEAR ASSEMBLY BS-76359
...
15
GOVERNOR RETAINER ("C" RING) BS-78645
...
16
GOVERNOR SPOOL BS-76365
...
17
SLEEVE DOWEL (10" DIA)) BS-78699A
...
18
CAMSHAFT ASSEMBLY BS-83335
...
19
CRANKCASE GASKET BS-76350
...
20
SLEEVE DOWEL (12" DIA.) BS-78699B
...
21
CYLINDER HEAD GASKET BS-77165B
...
22
OIL PRESSURE SPRG RETAINER BS-78691
...
23
OIL PRESSURE SPRING BS-76367
...
24
PRESSURE RELIEF BALL BS-76362
...
25
M5-0.8 X 8MM SCREW BS-78692
...
26
M6-1.0 X 12MM SCREW BS-78606
...
27
THRUST WASHER WITH WASHER BS-76361
...
28
FLANGED HEX CAPSCREW BS-78661
...
29
CRANKCASE COVER BS-83138B
...
30
VALVE SPRING RETAINER BS-77157
...
31
VALVE SPRING BS-76398
...
32
10" DIA. X 20" DOWEL PIN BS-78633
...
33
INNER GEROTOR BS-83152
...
34
CONNECTING ROD BS-76381
...
35
GOVERNOR ARM WASHER BS-78659
...
36
CYLINDER HEAD WITH VALVE SEATS AND GUIDES BS-78623
...
37
EXHAUST VALVE BS-73121
...
38
CAP DUST BS-7073120YP
...
39
PUSH ROD BS-76392
...
40
TAPPET BS-83235
...
41
OIL PICKUP ASSEMBLY BS-80336
...
42
ROCKER COVER GASKET BS-77167
...
43
PIVOT BALL STUD BS-77161
...
44
ROCKER ARM BS-77160
...
45
JAM NUT (ROCKER ARM) BS-76307
...
46
PUSH ROD GUIDE PLATE BS-77162
...
47
M8 X 50MM HEAD BOLT BS-77168
...
48
ROCKER COVER BRTHR. ASSM. BS-81690
...
49
BRCKT, MFFLR, COMB 4K BS-76239GS
...
50
BELT,TRACTION DRIVE BS-7072657YP
...
51
OUTER GEROTOR -- 6/5 BS-83153
...
52
OIL FILL PLUG GASKET BS-83238
...
53
VALVE SPRING WASHER BS-84186

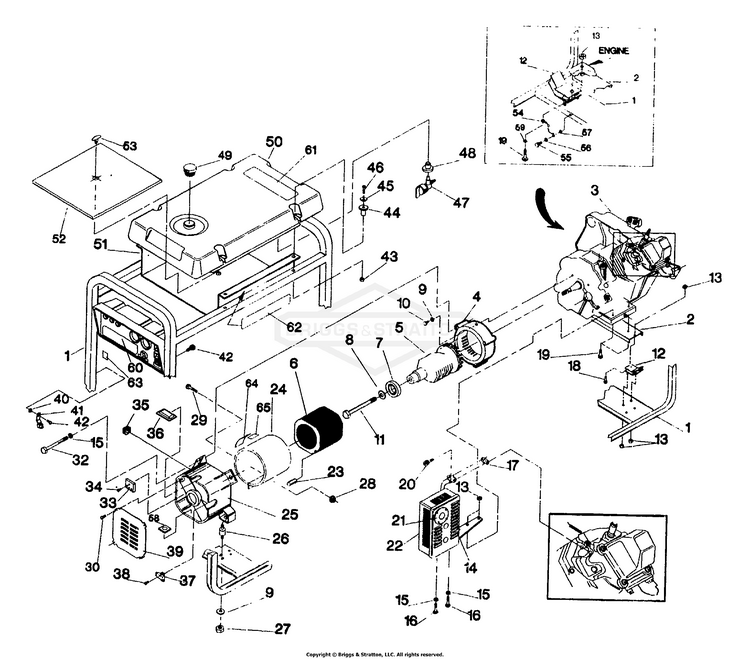

Stator Assembly, Cradle & Fuel Tank

...
...
1
Cradle BS-83533
...
2
SUPPORT, Engine BS-B84021GS
...
3
GN-190 Engine BS-83232
...
4
Engine Adaptor Housing BS-68365
...
5
Rotor Assembly BS-84141
...
6
Stator Assembly BS-83540
...
7
BEARING BS-65791GS
...
8
M8 Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
5/16-24 x 3/4" Capscrew BS-22336
...
11
FLOOR PLATE BS-5047480B
...
12
MOUNT, Vibration BS-84508GS
...
13
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
14
BRACKET, Muffler BS-83208GS
...
15
CAP BS-5022097SM
...
16
SCREW, M6 x 12 BS-43116GS
...
17
GSKT, EXHAUST BS-80314GS
...
18
SCREW BS-70644GS
...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
20
M8-1.25 x 20mm Capscrew BS-40976
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
MUFFLER BS-83071GS
...
23
PIN, ROLL 4MM x 10 BS-81917GS
...
24
Stator Wrap BS-81887B
...
25
Rear Bearing Carrier BS-66825
...
26
MOUNT-VIBRATION BS-194153GS
...
27
SKID PLATE BS-5045771B
...
28
NUT, LOCKING-M5 BS-52856GS
...
29
SCREW, M5 x 0.8 x 12 BS-52618GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
M6-1.0 X 115mm Stator Bolt BS-66449E
...
33
RECTIFIER, BATTERY CHARGE BS-65795GS
...
34
SCREW BS-66849AGS
...
35
GROMMET, RUBBER BS-67022GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
38
HHCS, M5-0.8 X 16 BS-49815GS
...
39
Bearing Carrier Cover BS-67025
...
40
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
41
Ground Lug BS-25433
...
42
Self-drill Capscrew, #10-16 BS-86282
...
43
NUT, FLANGE LOCK - M6 BS-77395GS
...
44
GROMMET, TANK BS-83465GS
...
45
WSHR, SPCL, BLK BS-78830GS
...
46
M6-1.0 x 60mm Capscrew BS-78831A
...
47
Kit, Valve BS-192980GS
...
48
Plastic Tank Bushing BS-80269
...
49
Fuel Cap BS-84582
...
50
Fuel Tank BS-83311
...
51
Heat Shield BS-84042
...
52
INSULATION BS-84687GS
...
53
CLIP, INSULATION BS-85000GS
...
54
Ground Wire BS-10953621
...
55
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
56
WASHER BS-38150GS
...
57
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
58
MOUNT, CABLE TIE BS-57593GS
...
60
Control Panel Decal BS-85386
...
61
Start/Danger Decal BS-78992
...
62
Heat Shield Decal BS-85402
...
63
DECAL, GRD BS-67210GS
...
64
Data Decal BS-77026
...
65
DECAL, STA-BIL BS-81886GS

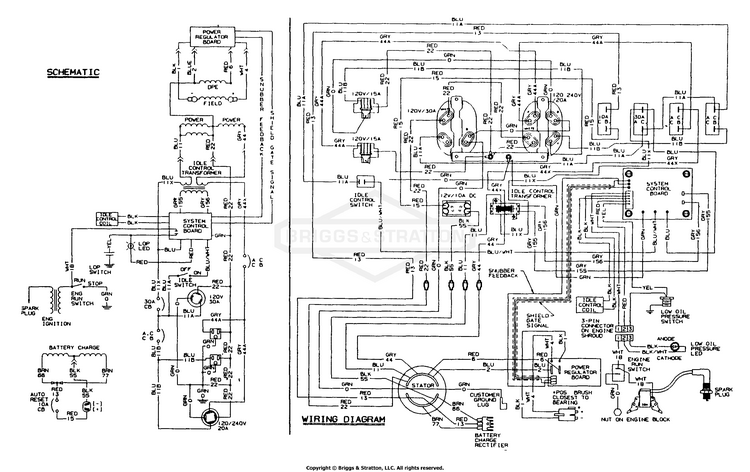

Wiring Diagram

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
