product name

Briggs & Stratton 9450-1 - 580.327161, 5,000 Watt Craftsman

Model: 9450-1 - 580.327161, 5,000 Watt

Save Part Not Listed?
product name

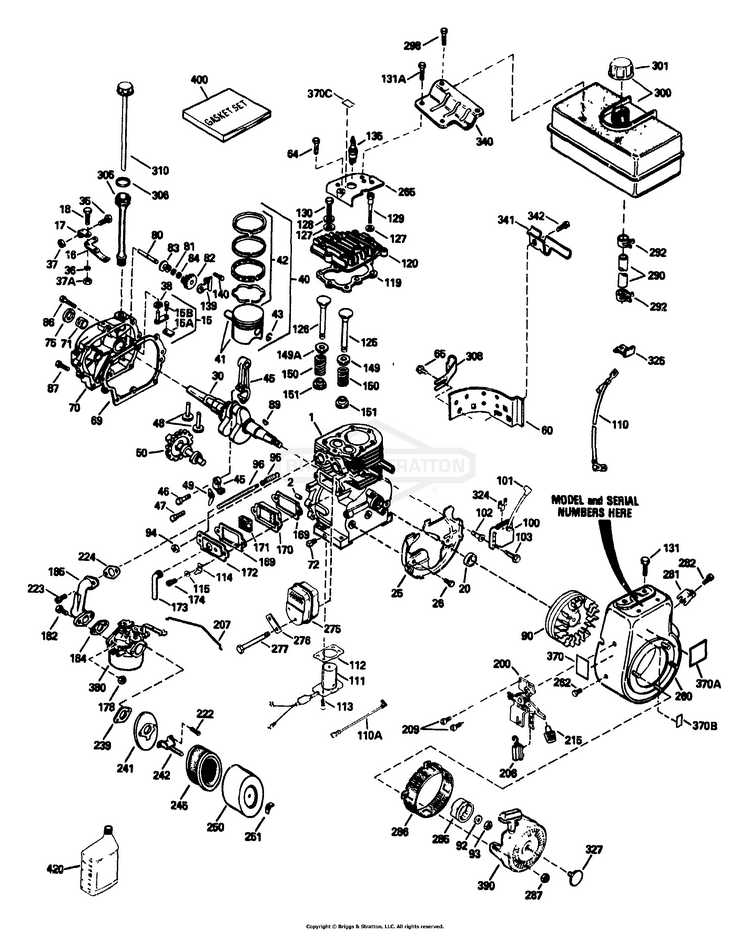

4-Cycle Engine

...
...
1
Cylinder (Includes 2 & 20) BS-35968
...
2
GEAR, WORM, BS-7027652YP
...
15
Governor Rod Assy. (Incl. 15A & 15B); Contact Generac for quantity required BS-30699C
...
15A
Governor Yoke BS-30700
...
15B
No. 6-40 x 5/16" Screw BS-650494
...
16
Governor Lever BS-33454
...
17
Governor Lever Clamp BS-29916
...
18
No. 8-32 x 5/16" Hex Screw BS-650548
...
20
Oil Seal BS-35319
...
25
Blower Housing Baffler BS-35326
...
26
1/4-20 x 5/8" Hex Screw BS-650561
...
30
Crankshaft Contact Generac for quantity required BS-35441
...
35
No. 10-32 x 3/4" Hex Screw BS-29826
...
36
Lock Washer BS-29918
...
37
(C) WIRE HARNESS PIS BS-7029216YP
...
37A
No. 8-32 Lock Nut BS-30322
...
38
Retaining Ring Contact Generac for quantity required BS-29642
...
40
Piston, Pin & Ring Assy. (STD) Contact Generac for quantity required BS-35776
...
Piston, Pin & Ring Assy. (0.01 O.S.) Contact Generac for quantity required BS-35777
...
Piston, Pin & Ring Assy. (0.02 O.S.) Contact Generac for quantity required BS-35778
...
41
Piston & Pin Assy. (STD.) Contact Generac for quantity required BS-35773
...
Piston & Pin Assy. (0.01 O.S.) Contact Generac for quantity required BS-35774
...
Piston & Pin Assy. (0.02 O.S.) Contact Generac for quantity required BS-35775
...
42
Piston Ring Set (STD.) Contact Generac for quantity required BS-35779
...
Piston Ring Set (0.01 O.S.) Contact Generac for quantity required BS-35780
...
Piston Ring Set (0.02 O.S.) Contact Generac for quantity required BS-35781
...
43
Piston Pin Retaining Ring BS-35772
...
45
Connecting Rod Assy. BS-35681
...
46
Connecting Rod Bolt BS-650908
...
47
Connecting Rod Bolt BS-650882
...
48
Valve Lifter BS-34034
...
49
Oil Dipper BS-35374
...
50
Camshaft BS-35375
...
60
Blower Housing BS-33273A
...
64
1/4-20 x 5/8" Screw Contact Generac for quantity required BS-650802
...
65
No. 10-24 x 1/2" Screw BS-650128
...
69
Cylinder Cover Gasket Included in Gasket Set, P/N 33279G BS-35262
...
70
Cyliner Cover Assy. BS-35376
...
71
Cylinder Cover Bushing BS-35377
...
72
Pipe Plug BS-27642
...
75
Oil Seal BS-35319
...
80
Governor Shaft BS-31845
...
81
Flat Washer BS-30590A
...
82
Governor Gear BS-35378
...
83
Governor Spool BS-30588A
...
84
DECAL BAFFLE FRONT BS-7029193YP
...
86
1/4-20 x 1-3/16" Screw BS-650833
...
87
1/4-20 x 1-11/16" Screw BS-650832
...
89
Flywheel Key BS-32589
...
90
Flywheel BS-611090
...
92
Lock Washer BS-650880
...
93
Flywheel Nut BS-650881
...
94
No. 10-32 Lock Nut BS-33450
...
95
Governor Bolt Spring BS-30886A
...
96
Gov. Spring Adjusting Bolt BS-30845A
...
100
Solid State Assembly BS-35135
...
101
Spark Plug Cover BS-610118
...
102
Solid State Mounting Stud BS-650872
...
103
No. 10-24 x 1" Torx Screw BS-650814
...
110
Ground Wire Contact Generac for quantity required BS-35187
...
110A
Oil Shutdown Wire & Term. Assy. Contact Generac for quantity required BS-35987
...
111
Low Oil Shutdown Device BS-611162
...
112
Low Oil Shutdown Gasket BS-35967
...
113
No. 10-24 x 5/8" Screw BS-650950
...
114
Ground Terminal BS-33932
...
115
Lock Washer Contact Generac for quantity required BS-650518
...
119
Cylinder Head Gasket Included in Gasket Set, P/N 33279G BS-34923A
...
120
Cylinder Head BS-34030
...
125
Std. Exhaust Valve BS-27878A
...
O.S. Exhaust Valve BS-27880A
...
126
Std. Intake Valve BS-34035
...
O.S. Intake Valve BS-34036
...
127
Flat Washer BS-650691
...
128
Belleville Washer BS-650690
...
129
5/16-18 x 1-3/4" Screw BS-650727
...
130
5/16-18 x 2" Flange Screw BS-650694A
...
131
5/16-18 x 3/4" Screw BS-650788
...
131A
5/16-18 x 5/8" Screw BS-650713
...
135
Spark Plug (RJ-17LM) BS-33636
...
139
Governor Gear Bracket BS-33369
...
140
No. 10-24 x 1/2" Screw BS-650836
...
149
Upper Valve Spring Cap BS-27882
...
149A
Intake Valve Seal Assembly BS-35862
...
150
Valve Spring BS-27881
...
151
Lower Valve Spring Cap BS-32581
...
169
Breather Gasket Included in Gasket Set, P/N 33279G BS-27896A
...
170
Breather Body BS-28423
...
171
Breather Element BS-28424
...
172
SCRAPER BLADE, 17 BS-7035947YP
...
173
Breather Tube BS-35350
...
174
No. 10-24 x 1/2" Screw BS-650128
...
178
1/4-28 Lock Nut BS-29752
...
182
1/4-28 x 1" Screw BS-30088A
...
184
Carburetor Gasket Included in Gasket Set, P/N 33279G BS-33263
...
185
Intake Pipe BS-33877
...
200
Control Bracket Assembly BS-34677
...
206
Terminal Assembly BS-610973
...
207
Governor-to-Throttle Link BS-33878
...
209
No. 10-32 x 1/2" Screw BS-650821
...
215
Control Knob BS-32410
...
222
GRASS BAG, PLATINUM BS-7045199YP
...
223
5/16-18 x 1-1/8" Screw BS-65037~
...
224
Intake Pipe Gasket Included in Gasket Set, P/N 33279G BS-27915A
...
239
Air Cleaner Gasket Included in Gasket Set, P/N 33279G BS-27272A
...
241
Air Cleaner Bracket BS-33266
...
242
Air Cleaner Bracket BS-33267
...
245
Air Cleaner Element BS-33268
...
250
Air Cleaner Cover BS-33269A
...
251
1/4-20 Wing Nut BS-650513
...
260
Blower Housing BS-36236
...
262
5/16-24 x 21/32" Screw BS-29747B
...
265
Cylinder Head Cover BS-33272B
...
275
Muffler BS-35056
...
276
Lock Plate BS-31588
...
277
5/16-18 x 4-3/16" Screw BS-792093
...
281
Starter Hole Cover BS-33013
...
282
No. 8-32 x 3/8" Screw BS-650760
...
285
Starter Hub BS-35985
...
286
Starter Screen BS-35446
...
287
1/4-28 Nut & Lock Washer BS-29752
...
290
Gas Tank Mount (Manual) BS-5030705
...
292
Fuel Line Clamp BS-26460
...
298
1/4-15 x 7/8" Screw BS-650665
...
300
Fuel Tank Assembly BS-34156A
...
301
Fuel Tank Cap BS-35355
...
305
Oil Filler Tube BS-35554
...
306
"O" Ring BS-35499
...
308
Oil Fill Tube Clip BS-35540
...
310
Oil Dipstick BS-36205
...
324
Terminal Lamination BS-33177
...
325
GREASE, Transmission (24 oz. Required) BS-7061017YP
...
327
Starter Plug BS-35392
...
340
Fuel Tank Bracket BS-34155
...
341
PHMS, #10-24 X 1/2 LG Contact Generac for quantity required BS-34154GS
...
342
1/4-20 x 5/8" Screw BS-650561
...
370
Instruction Decal BS-34346
...
370A
Name Decal BS-34686
...
370B
Control Decal BS-33107
...
370C
Instruction Decal BS-35274
...
380
Carburetor (Incl. No. 184) BS-632596
...
390
SENSOR, Oil BS-84004948
...
400
Gasket Set BS-33279G
...
420
SAE30 4-cycle Engine Oil (quart) Contact Generac for quantity required BS-730225

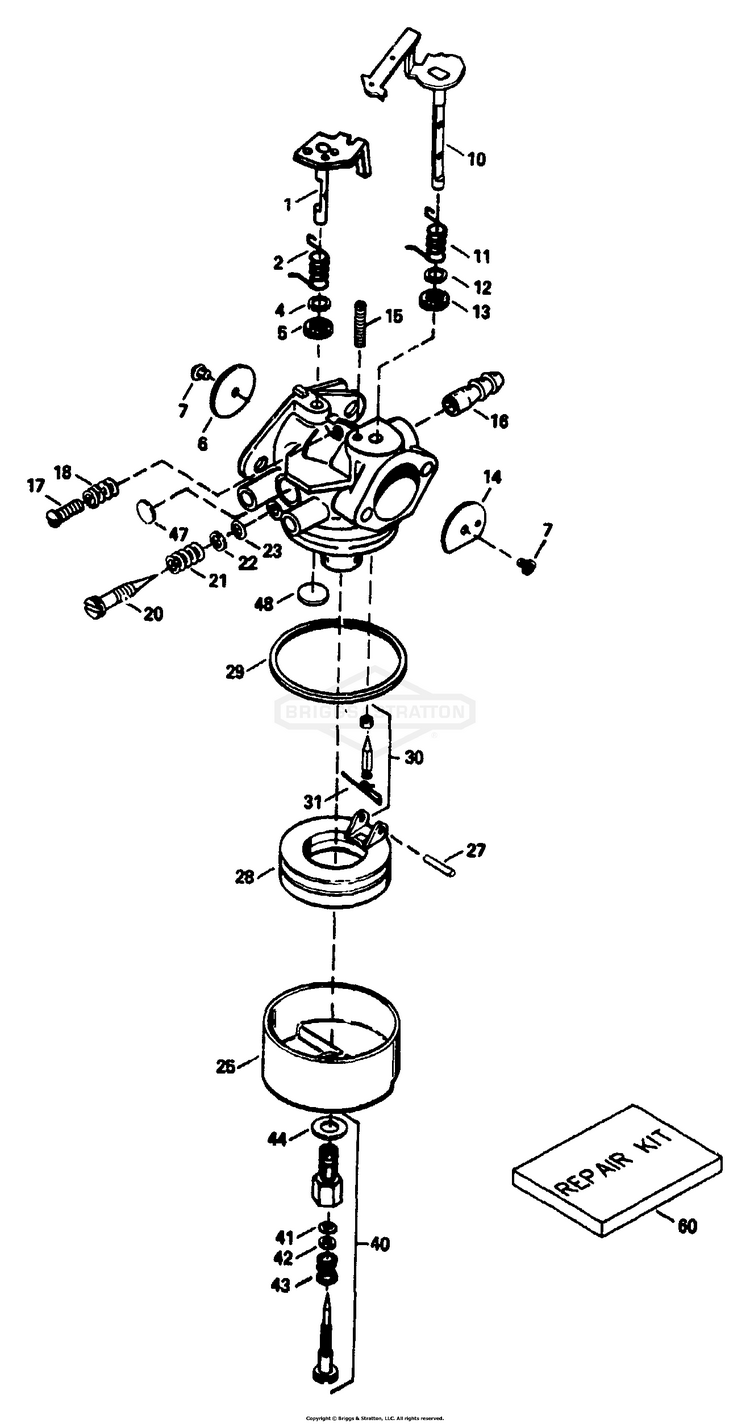

Carburetor

...
...
1
THROTTLE SHAFT AND LEVER ASSEMBLY BS-632243
...
2
THROTTLE RETURN SPRING BS-632244
...
4
DUST SEAL WASHER BS-631184
...
5
DUST SEAL (THROTTLE) BS-631971
...
6
THROTTLE SHUTTLE BS-632517
...
7
THROTTLE & CHOKE SHUTTER SCREW BS-650506
...
10
CHOKE SHAFT & LEVER ASSEMBLY BS-632603
...
11
CHOKE RETURN SPRING BS-632043
...
12
DUST SEAL WASHER (CHOKE) BS-631184
...
13
DUST SEAL (CHOKE) BS-631183
...
14
CHOKE SHUTTER BS-632248
...
15
CHOKE POSITIONING SPRING BS-630735
...
16
FUEL FITTING BS-632164
...
17
IDLE SPEED SCREW BS-650417
...
18
TENSION SPRING BS-630766
...
20
IDLE MIXTURE SCREW Included in Repair Kit, P/N 632347 BS-632281
...
21
IDLE TENSION SPRING BS-630766
...
22
IDLE SCREW WASHER Contact Generac for quantity required BS-630739
...
23
"O" RING, IDLE SCREW Included in Repair Kit, P/N 632347 BS-630740
...
25
FLOAT BOWL BS-631867
...
27
SHAFT, FLOAT Included in Repair Kit, P/N 632347 BS-631024
...
28
FLOAT BS-632019
...
29
"O" RING, FLOAT BOWL-TO-BODY Included in Repair Kit, P/N 632347 BS-631028
...
30
INLET NEEDLE, SEAT & SPRING CLIP (Incl. No. 31); Included in Repair Kit, P/N 632347 BS-631021
...
31
SPRING CLIP BS-631022
...
40
HIGH SPEED MIXTURE SCREW ASSY. (Incl. Nos. 41, 42, 43, 44); Included in Repair Kit, P/N 632347 BS-632239
...
41
"O" RING, HIGH SPEED MIXTURE SCREW Included in Repair Kit, P/N 632347 BS-630740
...
42
WASHER, HIGH SPEED MIXTURE SCREW BS-630739
...
43
TENSION SPRING, HIGH SPEED MIXTURE SCREW BS-630738
...
44
(C) FITTING 90 DEG W Included in Repair Kit, P/N 632347 BS-7027110YP
...
47
WELCH PLUG, IDLE MIXING WELL Included in Repair Kit, P/N 632347 BS-630748
...
48
WELCH PLUG, ATMOSPHERIC VENT Included in Repair Kit, P/N 632347 BS-631027
...
60
REPAIR KIT BS-632347

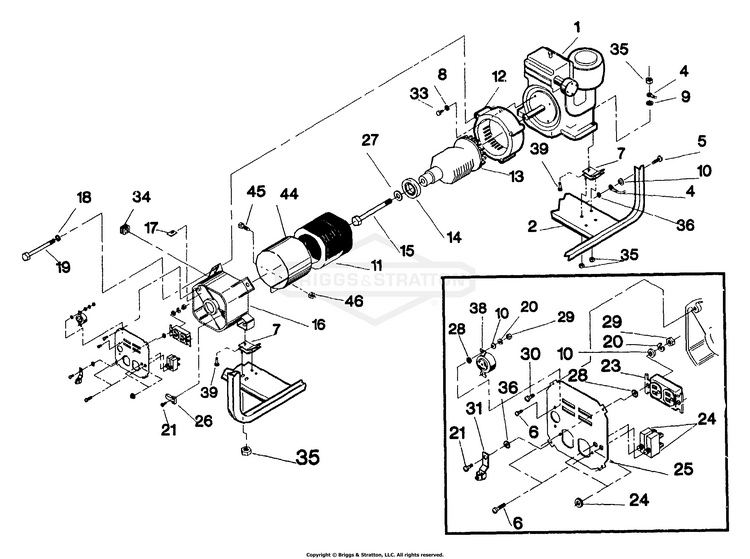

Generator & Control Panel

...
...
1
10 HP TECUMSEH ENGINE BS-83953
...
2
CRADLE ASSEMBLY BS-75987
...
4
GROUND WIRE BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
SCREW, PAN HEAD MACHINE - M4-0.7 x 10mm BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
ASSY, STATOR, 5000DPE105 BS-93585JGS
...
12
ADPTR, HSNG, 8 HP BS-66365DGS
...
13
ROTOR ASSEMBLY BS-74716
...
14
BEARING BS-65791GS
...
15
CAPSCREW, Hex Head BS-75431GS
...
16
CARRIER, REAR BEARING BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
BOLT, STATOR -- M6-1.0 x 115mm BS-66449D
...
20
LOCK WASHER -- No. 8 BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
CONTROL PANEL, SHEET METAL BS-83859
...
26
ASSEMBLY, BRUSH HOLDER Contact Generac for quantity required BS-66386GS
...
27
FLAT WASHER -- SPECIAL BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
LUG, GROUNDING BS-25433
...
33
SCREW, HEX HEAD -- 5/16"-24 x 3/4" BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
44
ALTERNATOR WRAP BS-81887C
...
45
SCREW, M5 x 0.8 x 12 BS-52618GS
...
46
NUT, LOCKING-M5 BS-52856GS

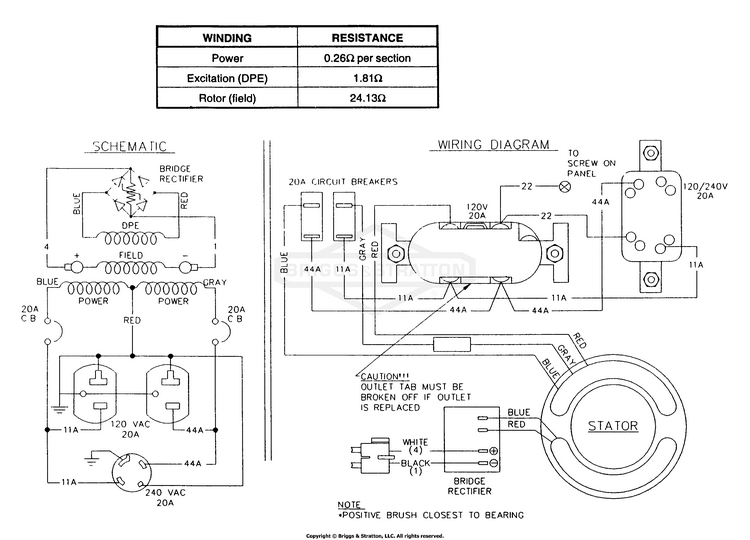

Wiring Diagram

...

No Parts Available for this Schematic
