product name

Briggs & Stratton 9450-0 - 580.327020, 5,000 Watt Craftsman

Model: 9450-0 - 580.327020, 5,000 Watt

Save Part Not Listed?
product name

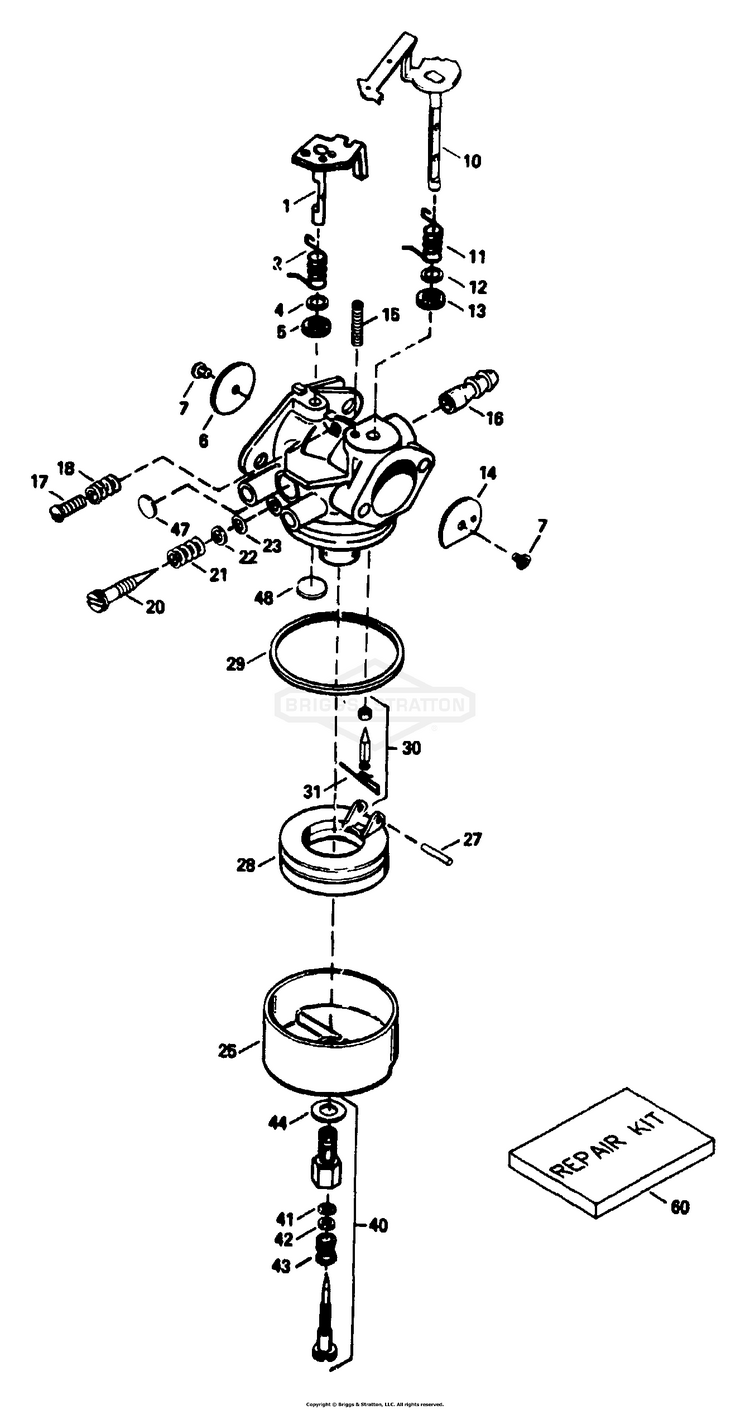

Carburetor

...
...
1
THROTTLE SHAFT AND LEVER ASSEMBLY BS-632243
...
2
THROTTLE RETURN SPRING BS-632244
...
4
DUST SEAL WASHER BS-631184
...
5
DUST SEAL (THROTTLE) BS-631971
...
6
THROTTLE SHUTTLE BS-632517
...
7
THROTTLE & CHOKE SHUTTER SCREW BS-650506
...
10
CHOKE SHAFT & LEVER ASSEMBLY BS-632603
...
11
CHOKE RETURN SPRING BS-632043
...
12
DUST SEAL WASHER (CHOKE) BS-631184
...
13
DUST SEAL (CHOKE) BS-631183
...
14
CHOKE SHUTTER BS-632248
...
15
CHOKE POSITIONING SPRING BS-630735
...
16
FUEL FITTING BS-632164
...
17
IDLE SPEED SCREW BS-650417
...
18
TENSION SPRING BS-630766
...
20
IDLE MIXTURE SCREW Included in Repair Kit, P/N 632347 BS-632281
...
21
IDLE TENSION SPRING BS-630766
...
22
IDLE SCREW WASHER Contact Generac for quantity required BS-630739
...
23
"O" RING, IDLE SCREW Included in Repair Kit, P/N 632347 BS-630740
...
25
FLOAT BOWL BS-631867
...
27
SHAFT, FLOAT Included in Repair Kit, P/N 632347 BS-631024
...
28
FLOAT BS-632019
...
29
"O" RING, FLOAT BOWL-TO-BODY Included in Repair Kit, P/N 632347 BS-631028
...
30
INLET NEEDLE, SEAT & SPRING CLIP (incl. No. 31) Included in Repair Kit, P/N 632347 BS-631021
...
31
SPRING CLIP BS-631022
...
40
HIGH SPEED MIXTURE SCREW ASSY. (incl. Nos. 41, 42, 43, 44) Included in Repair Kit, P/N 632347 BS-632239
...
41
"O" RING, HIGH SPEED MIXTURE SCREW Included in Repair Kit, P/N 632347 BS-630740
...
42
WASHER, HIGH SPEED MIXTURE SCREW BS-630739
...
43
TENSION SPRING, HIGH SPEED MIXTURE SCREW BS-630738
...
44
(C) FITTING 90 DEG W Included in Repair Kit, P/N 632347 BS-7027110YP
...
47
WELCH PLUG, IDLE MIXING WELL Included in Repair Kit, P/N 632347 BS-630748
...
48
WELCH PLUG, ATMOSPHERIC VENT Included in Repair Kit, P/N 632347 BS-631027
...
60
REPAIR KIT BS-632347

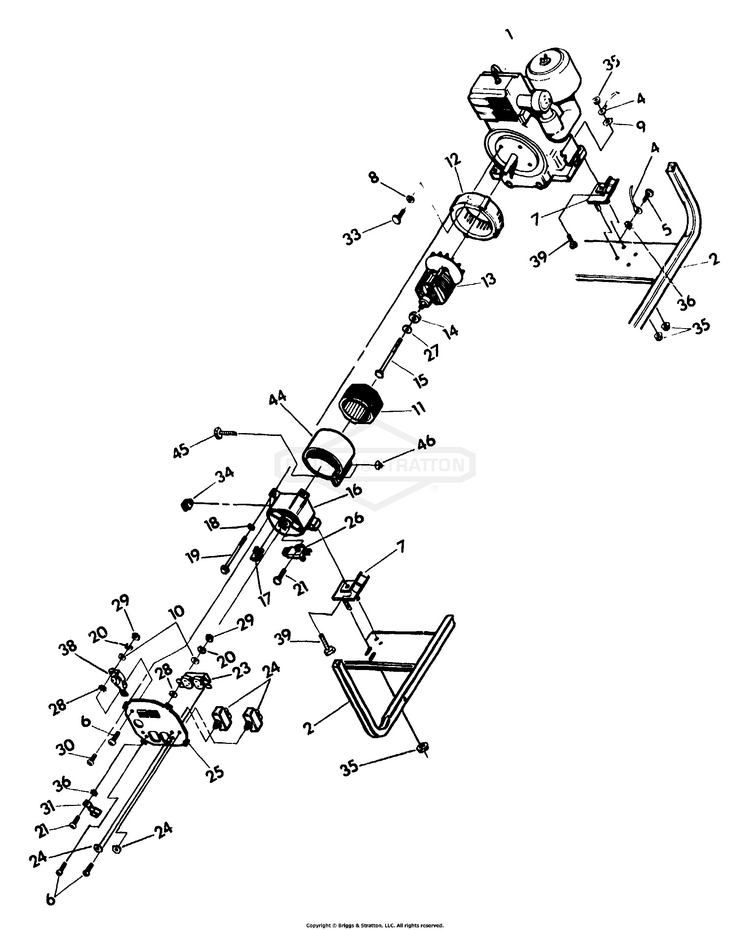

Generator

...
...
1
10 HP TECUMSEH ENGINE BS-83953
...
2
CRADLE ASSEMBLY BS-75987
...
4
GROUND WIRE BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
SCREW, PAN HEAD MACHINE - M4-0.7 x 10mm BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
STATOR ASSEMBLY BS-77257
...
12
ADPTR, HSNG, 8 HP BS-66365DGS
...
13
ROTOR ASSEMBLY BS-74716
...
14
BEARING BS-65791GS
...
15
CAPSCREW, Hex Head BS-75431GS
...
16
CARRIER, REAR BEARING BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
BOLT, STATOR -- M6-1.0 x 115mm BS-66449D
...
20
LOCK WASHER -- No 8 BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
CONTROL PANEL, SHEET METAL Contact Generac for quantity required BS-83859
...
26
ASSEMBLY, BRUSH HOLDER Contact Generac for quantity required BS-66386GS
...
27
FLAT WASHER -- SPECIAL BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
LUG, GROUNDING BS-25433
...
33
SCREW, HEX HEAD -- 5/16"-24 x 3/4" BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
44
ALTERNATOR WRAP BS-81887C
...
45
SCREW, M5 x 0.8 x 12 BS-52618GS
...
46
NUT, LOCKING-M5 BS-52856GS

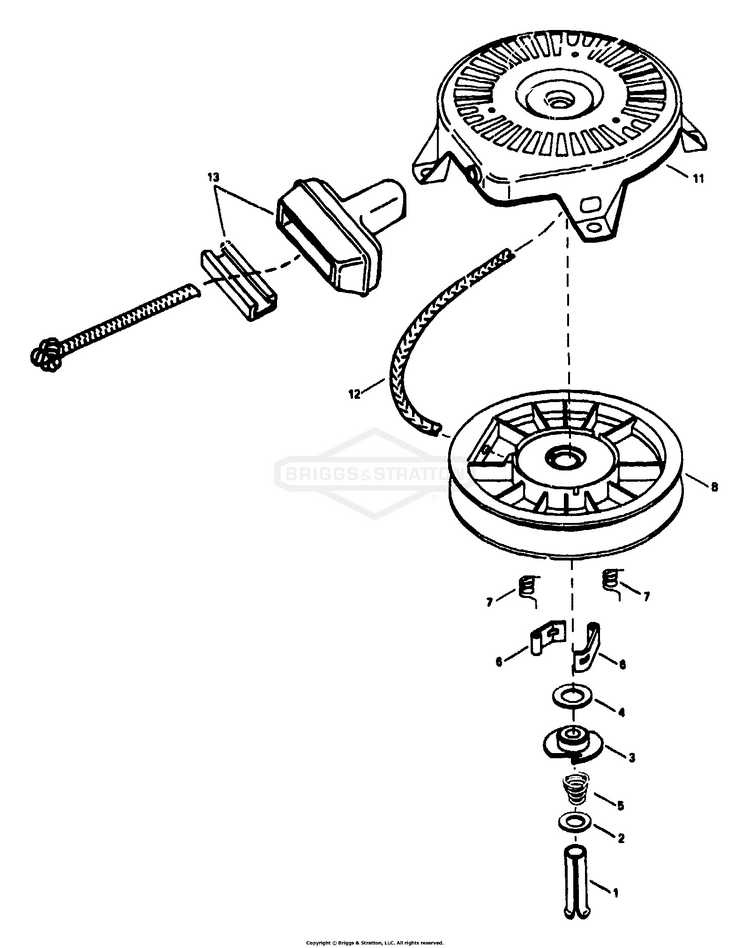

Rewind Starter

...
...
1
PIN, SPRING (includes No. 4) BS-590599A
...
2
WASHER BS-590600
...
3
FAN, Flywheel BS-590679
...
4
FILTER, A/C Cartridge BS-590601
...
5
PLUG, Oil Drain BS-590678
...
6
DOG, STARTER BS-590680
...
7
SPRING, DOG BS-590412
...
8
FLYWHEEL BS-590681
...
11
SCREW BS-590683
...
12
ROPE, STARTER (length 114" & 11/64" dia.) BS-590456

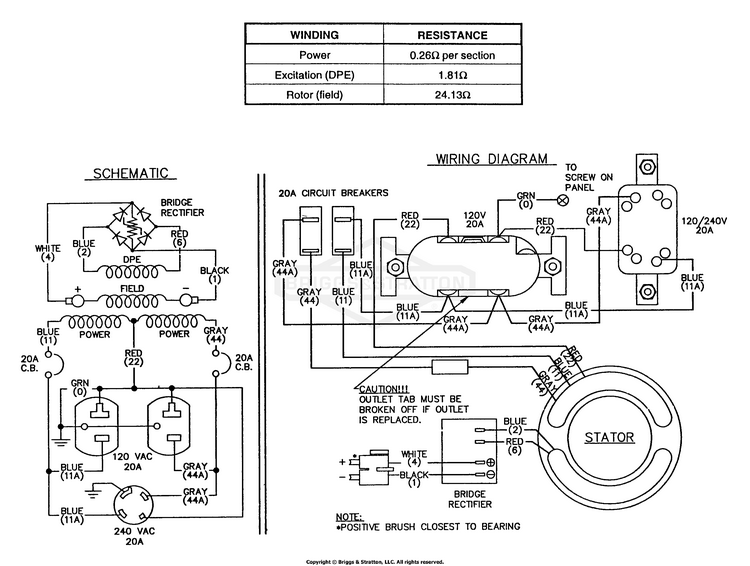

Wiring Diagram

...

No Parts Available for this Schematic
