product name

Briggs & Stratton 9320-0 - 3ZC11, 2,200 Watt Dayton

Model: 9320-0 - 3ZC11, 2,200 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

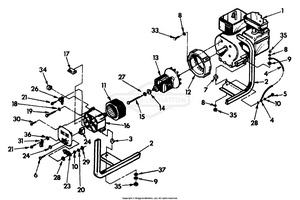

Replacement Parts List for 3ZC11 A-C Generator

...
...
1
BEARING, STRAIGHT BS-7076515YP
...
2
Cradle assembly BS-75987
...
3
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
4
Ground wire BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
M4-0.7 X 10mm Screw BS-75475
...
7
Vibration mount BS-66443A
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
BEARING, TAPERED ROLL BS-5020884SM
...
12
HSNG, ENG, FML BS-66365FGS
...
13
Rotor assembly BS-74713
...
14
BEARING BS-65791GS
...
15
5/16" -24 x 6-1/4" Bolt BS-24420
...
16
Rear Bearing Carrier BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.00 x 130mm Bolt BS-66449C
...
20
No. 8 Lockwasher BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
(C) WELD SEAT SUPPOR BS-7072092YP
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Flat washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
Grounding lug BS-25433
...
33
5/16"-24 x 3/4" Screw BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
SKID PLATE BS-5045771B
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS

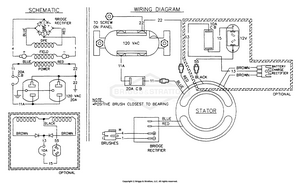

Wiring Diagram for 3ZC11 A-C Generator

...

No Parts Available for this Schematic

...
...
...
