Briggs & Stratton 9289-3 - 580.327075, 8,000 Watt Craftsman

Model: 9289-3 - 580.327075, 8,000 Watt

Save Part Not Listed?
product name

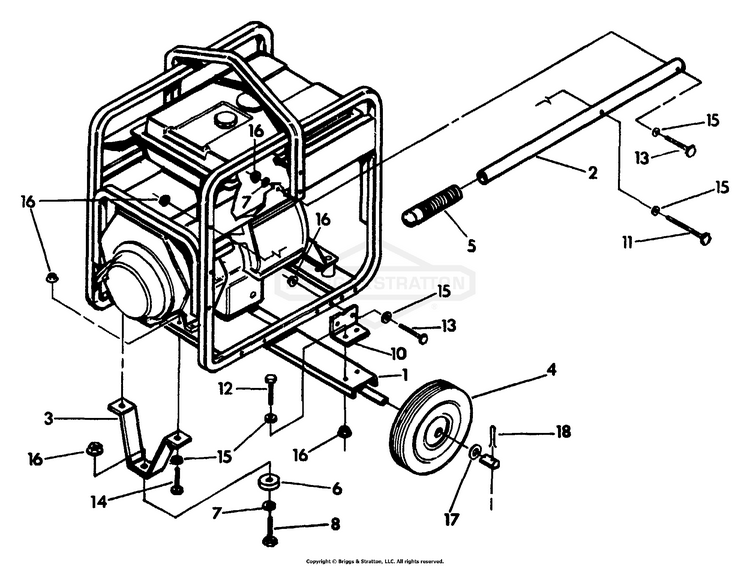

Axle Assembly. No. 80958

...
...
1
ASSY, AXLE BS-80953GS
...
2
HNDL, TRANSPORT BS-80955GS
...
3
MOUNTING LEG BS-45131
...
4
KIT, DISCHARGE CHUTE BS-7600147YP
...
5
GRIP, HNDL BS-77584GS
...
6
VIBE MOUNT, with Washer BS-191413GS
...
7
Washer, .34 x 1 x 10 BS-50190GS
...
8
SCREW BS-42909GS
...
10
BRCKT, AXLE BS-80954GS
...
11
SKID PLATE BS-5045771B
...
13
M8-1.25 x 40mm HEX HEAD CAPSCREW BS-57821
...
14
BOLT, M8-1.25 X 25MM BS-5025237X25YP
...
16
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
17
3/4" FLAT WASHER BS-45900
...
18
PIN, COTTER, 3/32-1 BS-22268GS

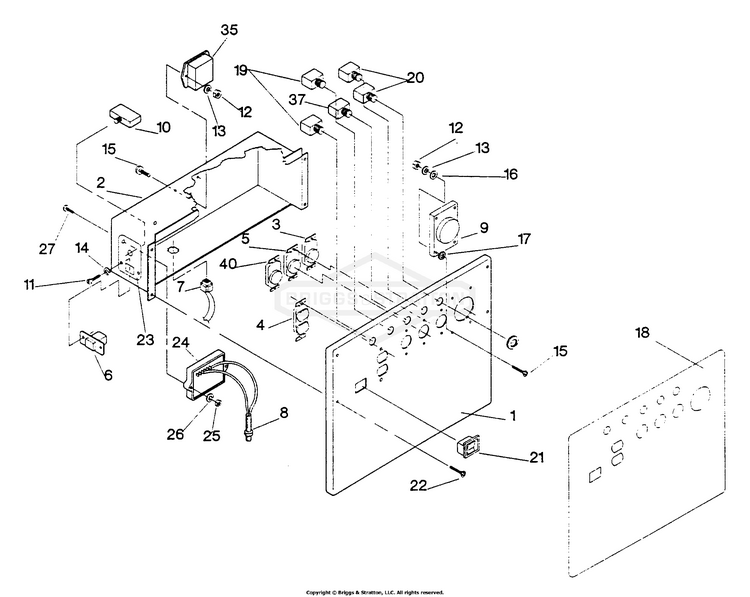

Control Panel No. 86208

...
...
1
CONTROL PANEL BS-79720
...
2
CONTROL PANEL COVER BS-86105
...
3
120/240-VOLT, 30 AMP TWISTLOCK OUTLET BS-43437
...
4
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
5
OUTLET-120V TL30A BS-705932
...
6
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418 BS-66822GS
...
7
CONNECTOR BS-63993
...
8
FIELD BOOST ASSEMBLY BS-77244
...
9
OUTLET, 50A, 240V BS-74191GS
...
10
BRKR, CRCT, 10A BS-75207BGS
...
11
M3-0.5 x 5mm SCREW BS-70728
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
M4 LOCK WASHER BS-22264
...
14
WASHER, M3 Lock BS-43182GS
...
15
M4-0.7 x 10mm SCREW BS-75475
...
16
Thumb Control Lever BS-5043180B
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
DECAL - SEARS 8kW BS-80273
...
19
BREAKER, Circuit BS-75207DGS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
22
CRIMPTITE, #8-18X1/4L BS-63036GS
...
23
BATTERY CHARGE DECAL BS-86107
...
24
ASSY, RGLTR, POTTED, W/FIN BS-83049GS
...
25
NUT, M5 x 0.8 BS-51716GS
...
26
WASHER, M5 Lock BS-49226GS
...
27
M5-0.8 x 30mm SCREW BS-79224
...
35
THERMAL RELAY BS-77314
...
37
BREAKER-CIRCUIT 20A BS-209872GS
...
40
120-VOLT, 20 AMP TWISTLOCK OUTLET BS-74190

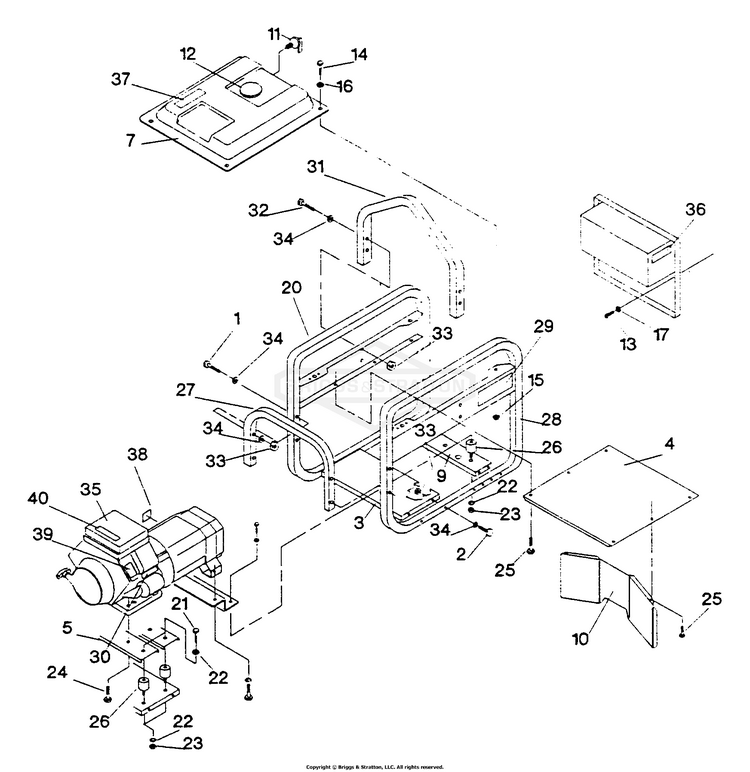

Cradle No. 86304

...
...
1
M8-1.25 x 70mm Capscrew BS-52203
...
2
M8-1.25 x 40mm Capscrew BS-57821
...
3
Mount, Engine BS-80946
...
4
Heat Shield (gas Tank) BS-77316
...
5
Support, Engine BS-77304
...
6
SPPRT, ALT BS-78512GS
...
7
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
8
Cradle, Manual Start BS-80943
...
9
Mount, Alternator BS-80947
...
10
Shield, Heat Deflecting BS-78513
...
11
Valve, Fuel Shut-off BS-86537
...
12
Cap Gauge, Fuel BS-76272
...
13
No. 10-24 x 5/8" Screw BS-75494
...
14
SCREW-M8 x 16 BS-42568GS
...
15
NUT-M6 FLANGE BS-52857GS
...
17
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
18
WASHER, Lock BS-22129GS
...
19
CAPSCREW M8-1.25X16 BS-703988
...
21
WHEEL ASSEMBLY BS-84010756
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
DECAL, ProCut Z Text BS-5022241
...
24
SCREW-HEX WSHR HD TAP BS-2828635SM
...
25
CRIMPTITE, #8-18X1/4L BS-63036GS
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
27
Support, Cradle BS-80943
...
28
Cradle Side, Left BS-64768
...
29
Decal, Sears Craftsman BS-69641
...
30
DECAL, Hot Muffler BS-77816GS
...
31
Lifting Bar BS-80949
...
32
SCREW BS-39287GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
34
Washer, .34 x 1 x 10 BS-50190GS
...
35
Engine, V-Twin, 15 HP BS-85109
...
36
Decal -- CSA BS-25717
...
37
Decal -- "Danger-Start/Stop" BS-78992
...
38
Decal -- Data BS-79552
...
39
Decal -- Engine BS-79661E

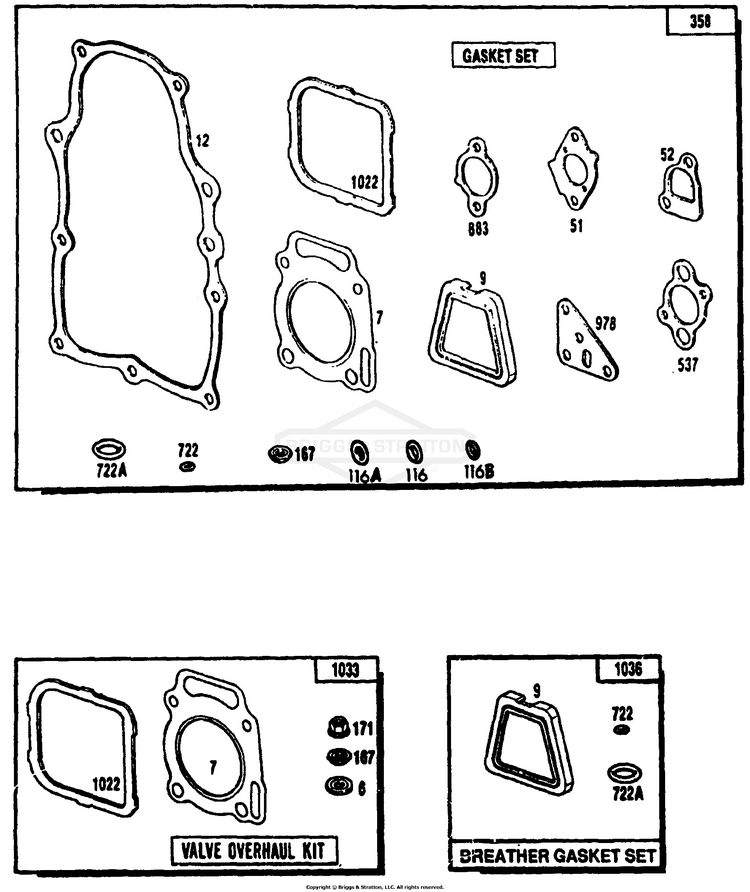

Gasket Set And Valve Overhaul Kit

...
...
6
805193 -- Cylinder head washer Contact Generac for quantity required BS-70169
...
7
805111 -- Cylinder head gasket Contact Generac for quantity required BS-69332
...
9
805379 -- Breather gasket Contact Generac for quantity required BS-72315
...
12
805112 -- Crankcase cover gasket Contact Generac for quantity required BS-69336
...
51
805264 -- Carburetor mounting gasket Contact Generac for quantity required BS-67290
...
52
GASKET, Intake Contact Generac for quantity required BS-692035
...
116
805058 -- O-ring (oil pump) Contact Generac for quantity required BS-68573
...
116A
805198 -- O-ring (crankcase cover) Contact Generac for quantity required BS-70506
...
116B
805316 -- O-ring (pick-up tube) Contact Generac for quantity required BS-70541
...
167
805420 -- Valve cover washer Contact Generac for quantity required BS-75253
...
171
NUT, Nylock, M6 Contact Generac for quantity required BS-67885GS
...
358
807640 -- Gasket set Contact Generac for quantity required BS-80055
...
537
805003 -- Air cleaner gasket Contact Generac for quantity required BS-68480
...
722
805482 -- Breather screw seal Contact Generac for quantity required BS-75262
...
722A
805483 -- Breather screw seal Contact Generac for quantity required BS-75263
...
883
GASKET, Exhaust Contact Generac for quantity required BS-691613
...
978
805250 -- Oil filter adapter gasket Contact Generac for quantity required BS-68548
...
1022
805028 -- Valve cover gasket Contact Generac for quantity required BS-67920
...
1033
807668 -- Valve overhaul kit Contact Generac for quantity required Includes Items Nos. 6, 7, 167, 171, 1022 BS-75271
...
1036
808688 -- Breather gasket set Contact Generac for quantity required Includes Items Nos. 9, 722, 722A BS-80012
...
807640 - Gasket Set Kit Contact Generac for quantity required BS-72528

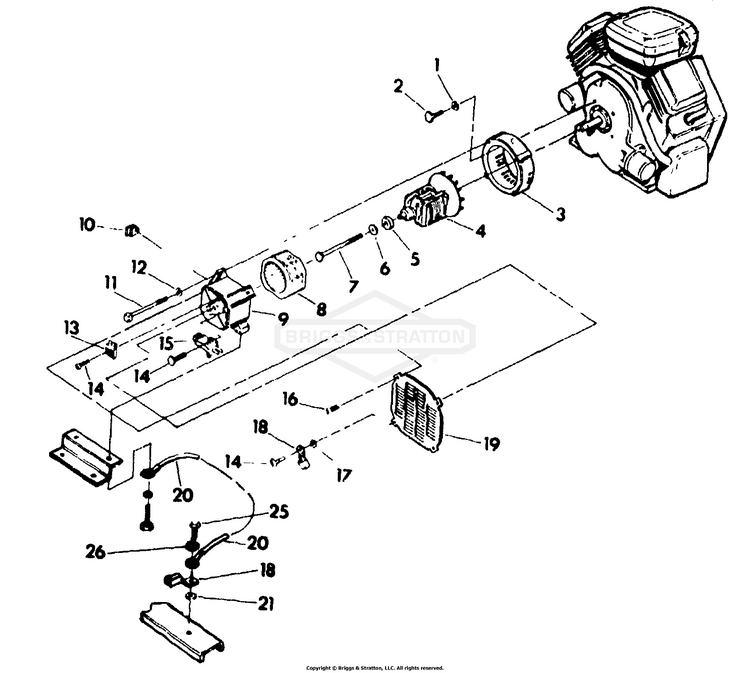

Stator Assembly And Generator - No. 86435

...
...
1
WASHER, Lock BS-22129GS
...
2
5/16-24 X 3/4" HEX HEAD CAPSCREW BS-22336
...
3
HOUSING, Engine Adapter BS-66365GGS
...
4
ROTOR ASSEMBLY BS-77308
...
5
BEARING BS-65791GS
...
6
FLAT WASHER (SPECIAL) BS-67451
...
7
HHCS, 5/16-24 X 11 BS-51810GS
...
8
STATOR ASSEMBLY BS-77260
...
9
REAR BEARING CARRIER BS-66825
...
10
GROMMET, RUBBER BS-67022GS
...
11
BOLT BS-66449LGS
...
12
CAP BS-5022097SM
...
13
RECTIFIER, BATTERY CHARGE BS-65795GS
...
14
HHCS, M5-0.8 X 16 BS-49815GS
...
15
BRUSH HOLDER ASSEMBLY BS-80812
...
16
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
18
GROUNDING LUG BS-25433
...
19
COVER, Bearing Carrier BS-B4871GS
...
20
WIRE-A, 12AWG, BLK, #0, 133MM BS-11853621GS
...
21
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
22
ALTERNATOR WRAPPER BS-81887D
...
23
SCREW, M5 x 0.8 x 12 BS-52618GS
...
24
NUT, LOCKING-M5 BS-52856GS
...
25
HHCS, M5-0.8 X 16 BS-49815GS
...
26
WASHER, Rivet, 3/16 BS-1910531SM

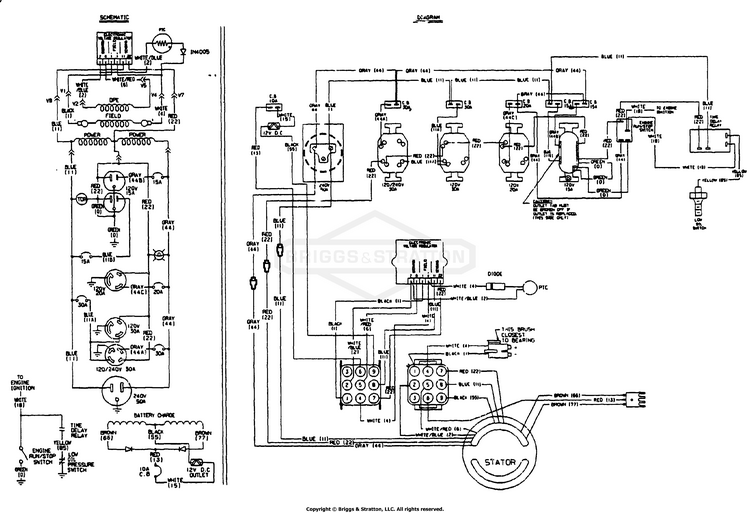

Wiring Diagram - No. 86106

...
