Briggs & Stratton 9218-1 - 580.327101, 4,000 Watt Craftsman

Model: 9218-1 - 580.327101, 4,000 Watt

Save Part Not Listed?
product name

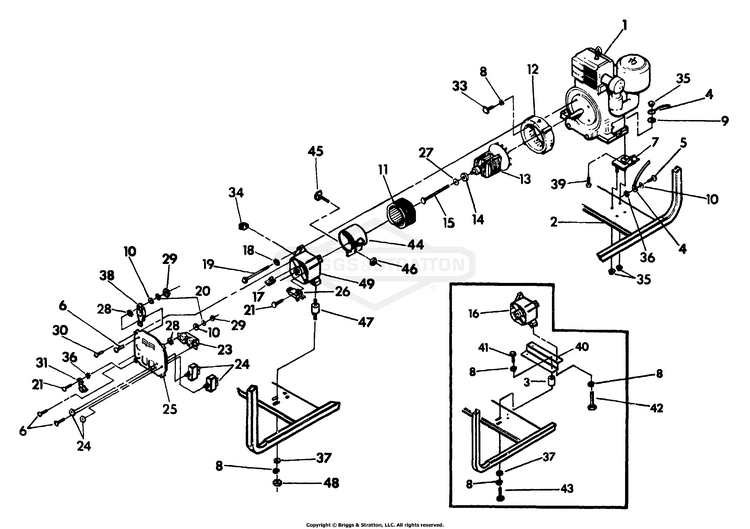

B & S Engine AC Generator No. 69125

...
...
1
BRIGGS & STRATTON ENGINE BS-76516
...
2
CRADLE ASSEMBLY BS-75987
...
3
VIBRATION MOUNT BS-44624
...
4
GROUND WIRE BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
M4-0.7 x 10mm PAN HEAD MACHINE SCREW BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
STATOR ASSEMBLY BS-77259
...
12
HOUSING, Engine Adapter BS-66365GGS
...
13
ROTOR ASSEMBLY BS-74715
...
14
BEARING BS-65791GS
...
15
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
16
REAR BEARING CARRIER BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.0 x 115mm STATOR BOLT BS-66449E
...
20
No. 8 LOCK WASHER BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
CONTROL PANEL SHEET METAL BS-72098
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
SPECIAL FLAT WASHER BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
GROUNDING LUG BS-25433
...
33
5/16"-24 x 3/4" HEX HEAD SCREW BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
240 VOLTS AC, 20 AMP OUTLET BS-68735
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
ALTERNATOR SUPPORT BS-73078
...
41
5/16"-18 x 1/2" HEX SCREW BS-36223
...
42
CAPSCREW M8-1.25X16 BS-703988
...
43
5/16"-18 x 3/4" HEX SCREW BS-30332
...
44
ALTERNATOR WRAP BS-81887B
...
45
SCREW, M5 x 0.8 x 12 BS-52618GS
...
46
NUT, LOCKING-M5 BS-52856GS
...
47
MOUNT, VIBRATION BS-82857GS
...
48
NUT, 5/16-18 HEX BS-25244GS
...
49
REAR BEARING CARRIER BS-66825A

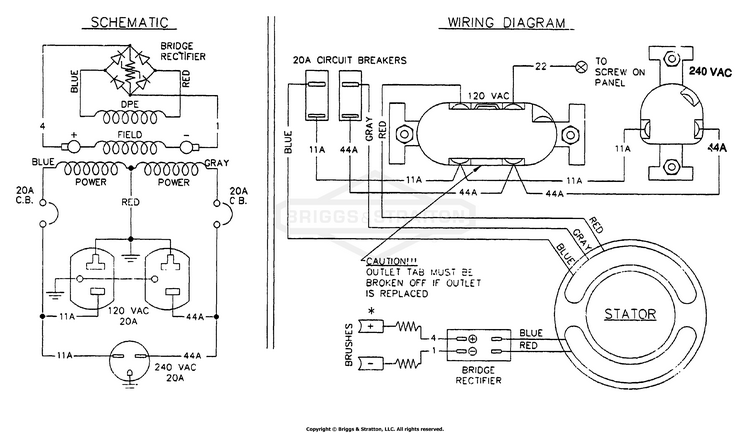

Wiring Diagram No. 74122

...

No Parts Available for this Schematic
