Briggs & Stratton 9162-0 - 580.327070, 8,000 Watt Craftsman

Model: 9162-0 - 580.327070, 8,000 Watt

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Axle Assembly Repair Parts No. 77583

...
...
1
(C) BEARING ROLLER BS-7077313YP
...
2
HANDLE, TRANSPORT BS-77317
...
3
LEG, MOUNTING BS-45131
...
4
KIT, DISCHARGE CHUTE BS-7600147YP
...
5
GRIP, HNDL BS-77584GS
...
6
VIBE MOUNT, with Washer BS-191413GS
...
7
Washer, .34 x 1 x 10 BS-50190GS
...
8
SCREW BS-42909GS
...
10
U-BOLT BS-26858
...
11
NUT, 5/16-18 HEX BS-5025032SM
...
12
WASHER, Lock BS-22129GS
...
13
CAP PLUG, Tubing BS-46476GS
...
14
BOLT, M8-1.25 X 25MM BS-5025237X25YP
...
16
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
17
WASHER, FLAT-3/4" BS-45900
...
18
PIN, COTTER, 3/32-1 BS-22268GS

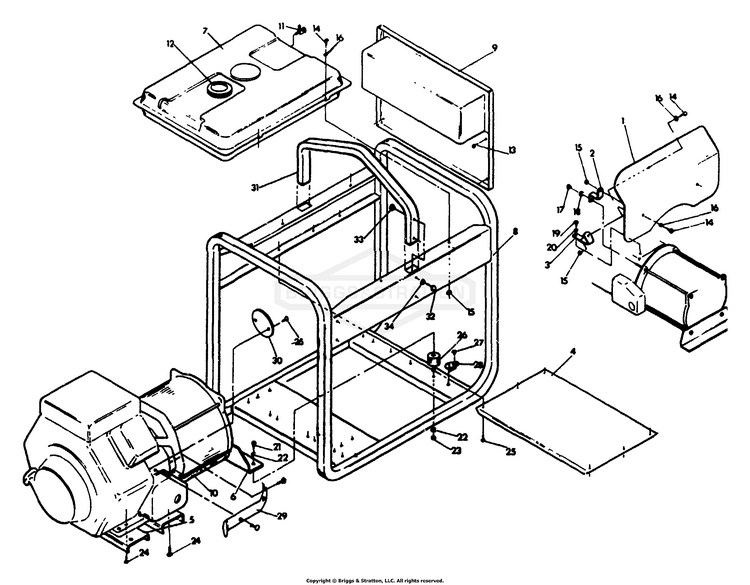

Cradle Repair Parts No. 77646

...
...
1
SHIELD, HEAT DEFLECTING BS-77318
...
2
BRACKET, HEAT SHIELD BS-77319
...
3
BRACKET, HEAT SHIELD BS-77306
...
4
HEAT SHIELD, (GAS TANK) BS-77316
...
5
SUPPORT, ENGINE BS-77304
...
6
SUPPORT, ALTERNATOR BS-77303
...
7
LEVER BRAKE BS-7075465YP
...
8
CRADLE, V-TWIN BS-77300
...
9
CONTROL PANEL COVER ASSEMBLY BS-77594C
...
10
EXPLODED VIEW-ALTERNATOR BS-77574
...
11
VALVE, FUEL SHUT-OFF BS-75938
...
12
CAP GAUGE, FUEL BS-76272
...
13
SCREW, SELF DRILLING, NO. 10 -24 x 5/8" BS-75494
...
14
SCREW-M8 x 16 BS-42568GS
...
15
NUT-M6 FLANGE BS-52857GS
...
17
NUT, HEX 5/16"-24 BS-24114
...
18
WASHER, Lock BS-22129GS
...
19
HHCS, M5-0.8 X 16 BS-49815GS
...
20
VALVE, FUEL SHUT OFF BS-84010414
...
21
WHEEL ASSEMBLY BS-84010756
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
DECAL, ProCut Z Text BS-5022241
...
24
SCREW-HEX WSHR HD TAP BS-2828635SM
...
25
CRIMPTITE, #8-18X1/4L BS-63036GS
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
LUG, GROUNDING BS-25433
...
29
SHIELD, WIRE BS-77323
...
30
COVER, STARTER BS-77326
...
31
LIFTING, BAR BS-77301
...
32
SCREW BS-39287GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS

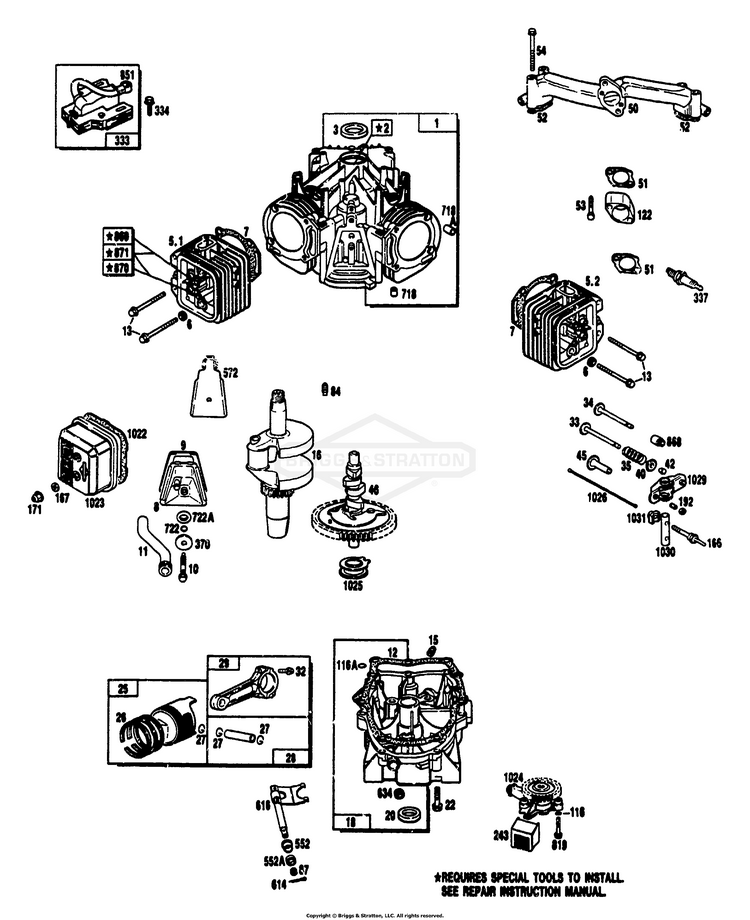

Engine Repair Parts No. 77583

...
...
1
CYLINDER ASSEMBLY BS-69331
...
2
SLEEVE BEARING - 30 DIA BS-69333
...
3
OIL SEAL - 30 DIA BS-67805
...
5.1
CYLINDER HEAD ASSY - NO. 1 BS-69311
...
5.2
CYLINDER HEAD ASSY - NO. 2 BS-69312
...
6
SEALING WASHER BS-70169
...
7
GASKET - CYLINDER HEAD BS-69332
...
8
BREATHER ASSY BS-72301
...
9
GASKET, BREATHER BS-72315
...
10
SCREW, BREATHER BS-70190
...
11
TUBE, BREATHER BS-70596
...
13
BOLT, CYLINDER HEAD BS-69325
...
16
CRANKSHAFT ASSY BS-72344
...
18
OIL PUMP ASSY BS-75247
...
20
OIL SEAL - 35 DIA BS-67924
...
22
BOLT, OIL PUMP BS-67878
...
25
PISTON ASSY - STD BS-75248
...
26
RING SET, PISTON - STD BS-75249
...
27
LOCKING RING, PISTON BS-69327
...
28
PISTON PIN - STD BS-75250
...
29
CONNECTING ROD ASSY BS-75251
...
32
BOLT, CONNECTING ROD BS-72346
...
33
EXHAUST VALVE BS-69316
...
34
INTAKE VALVE BS-69317
...
35
VALVE SPRING BS-67816
...
40
RETAINER, VALVE SPRING BS-69320
...
42
KEEPER, VALVE BS-70513
...
45
TAPPET, VALVE BS-70584
...
46
CAMSHAFT ASSY BS-70530
...
50
INTAKE MANIFOLD BS-72358
...
51
GASKET, CARB MOUNTING BS-69379
...
52
GASKET, Intake BS-692035
...
53
BOLT, CARBURETOR MOUNT BS-70594
...
54
BOLT, INTAKE MANIFOLD MOUNT BS-67158
...
84
PIPE PLUG - 1/8" NPT BS-68574
...
87
SEAL, GOVERNOR SHAFT BS-68554
...
116
O-RING, OIL PUMP BS-68573
...
116A
O-RING, OIL GALLEY BS-70506
...
122
SPACER, CARBURETOR BS-70554
...
166
STUD, ROCKER ARM BS-70568
...
167
SEAL WASHER - VALVE COVER BS-75253
...
171
NUT, Nylock, M6 BS-67885GS
...
192
SCREW, VALVE ADJUST BS-75254
...
243
SCREEN - OIL BS-70535
...
333
IGNITION ARMATURE ASSY BS-67891
...
334
SCREW, IGNITION ARMATURE BS-72356
...
337
PLUG, SPARK BS-84007216
...
370
WASHER, BREATHER SCREW BS-75259
...
552
BUSHING, GOVERNOR SHAFT BS-72361
...
552A
ISOLATOR ENGINE BS-7072362YP
...
572
BAFFLE, BREATHER BS-70199
...
614
COTTER PIN BS-72366
...
616
GOVERNOR FORK BS-72367
...
634
(C) BRACE SUNSHADE S BS-7072365YP
...
718
DOWEL, CRANKCASE BS-68555
...
722
SEAL, BREATHER SCREW BS-75262
...
722A
SEAL, BREATHER SCREW BS-75263
...
819
SCREW, OIL PUMP BS-68572
...
851
COVER RH BS-7075272YP
...
868
SEAL, VALVE STEM BS-70122
...
869
SEAT, INTAKE VALVE BS-67910
...
870
SEAT, EXHAUST VALVE BS-67911
...
871
GUIDE, VLV BS-67813GS
...
1022
GASKET - VALVE COVER BS-67920
...
1023
VALVE COVER BS-69328
...
1024
OIL PUMP ASSY BS-70547
...
1025
GOVERNOR SLIDER BS-70536
...
1026
PUSH ROD BS-70577
...
1029
ROCKER ARM ASSY BS-70599
...
1030
SHAFT - ROCKER ARM BS-70567
...
1031
SUPPORT - ROCKER ARM BS-70566

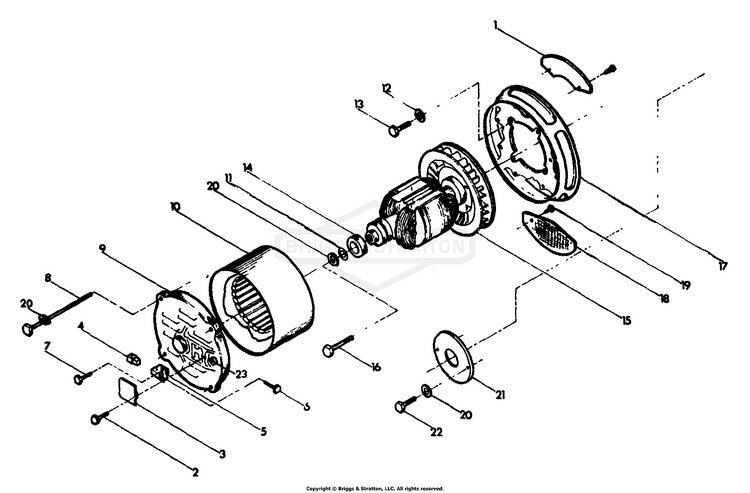

Generator Repair Parts No. 77574

...
...
1
PLATE, COVER BS-71791
...
2
SCREW, NO. 8-32 x 1/4" BS-26902
...
3
BELT, 73.75 AA BS-7043844YP
...
4
ASSY, BRUSH BS-A24044AGS
...
5
HLDR, BRUSH, UNIV BS-23877DGS
...
6
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
7
SCREW-NO. 0-32 x 5/8" BS-24488
...
8
CAPSCREW, HEX HEAD-5/16"-24 x 12.25 BS-77324
...
9
CARRIER-BEARING BS-49410AGS
...
10
ASSY, STATOR BS-77218GS
...
STATOR ASSEMBLY 6-KW BS-77571
...
11
Washer, .34 x 1 x 10 BS-50190GS
...
12
LOCKWASHER, SPLIT 3/8 BS-703454
...
13
WHEEL ASSEMBLY BS-84010756
...
14
BEARING BS-24049
...
15
ROTOR ASSEMBLY 8-KW BS-77321
...
ROTOR ASSEMBLY 6-KW BS-77572
...
16
CAPSCREW, HEX HEAD-5/16"-24 x 9.50" BS-39654
...
17
SPINDLE, CUTTER BS-7023418YP
...
18
GUARD, FAN BS-55275
...
19
SCREW, NO. 10-32 x 1/4" BS-48852
...
20
WASHER, Lock BS-22129GS
...
21
GUARD, CENTER BS-55277
...
22
CAPSCREW, HEX HEAD-5/16"-24 x 3/4" BS-22336
...
23
Grommet BS-38057GS

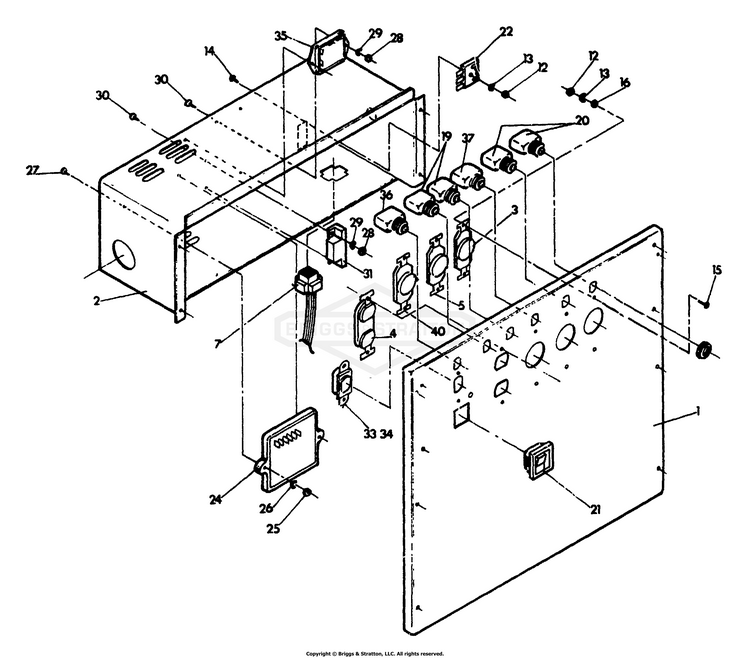

Panel Repair Parts No. 77591B

...
...
1
(C) WHEEL ASSY 4.1X3 BS-7077346YP
...
2
COVER, CONTROL PANEL BS-77315
...
3
OUTLET-120/240V. TWISTLOCK BS-08867
...
4
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
5
OUTLET-120V TL30A BS-705932
...
7
CONNECTOR BS-63993
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
LOCK WASHER-#8 BS-22264
...
14
P.P.H.M.S. M4-0.7 x 20 BS-70439
...
15
P.P.H.M.S. M4-0.7 x 10 BS-75475
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
WHEEL, 12 X 8.5 BS-5023364YP
...
19
BREAKER, Circuit BS-75207DGS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
22
RECTIFIER, BATTERY CHARGE BS-65795GS
...
23
ELECTRIC TAPE P-248 38 LONG BS-27565
...
24
AC VOLTAGE REGULATOR BS-74074
...
25
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
26
VALVE, FUEL SHUT OFF BS-84010414
...
27
P.H.M.S. #10-32 x 1.125 BS-33534
...
28
HEX NUT #6-32 BS-22188
...
29
PULLEY, PUMP DRIVE BS-5022155SM
...
30
SCREW BS-36902GS
...
31
BRKR, CRCT BS-48476GS
...
32
SCREW, M3-0.5 x 10mm BS-43181GS
...
33
OUTLET, 12 V DC BS-66821GS
...
34
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
35
THERMAL RELAY BS-77314
...
36
BRKR, CRCT, 10A BS-75207BGS
...
37
BREAKER-CIRCUIT 20A BS-209872GS
...
38
SLEEVING, 650MM BS-22661Y
...
39
SLEEVING, 700MM BS-22661Y
...
40
OUTLET 120/20AMP. TWISTLOCK BS-74190

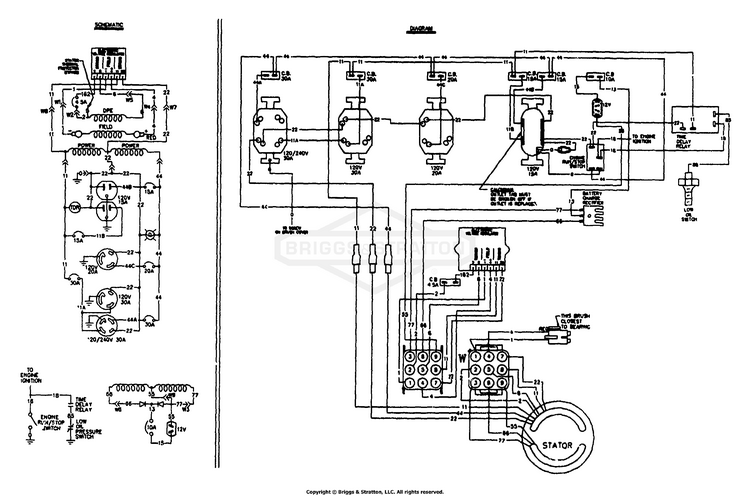

Wiring Diagram No. 74182

...

No Parts Available for this Schematic
