product name

Briggs & Stratton 9085-0 - 580.327050, 4,000 Watt Craftsman

Model: 9085-0 - 580.327050, 4,000 Watt

Save Part Not Listed?
product name

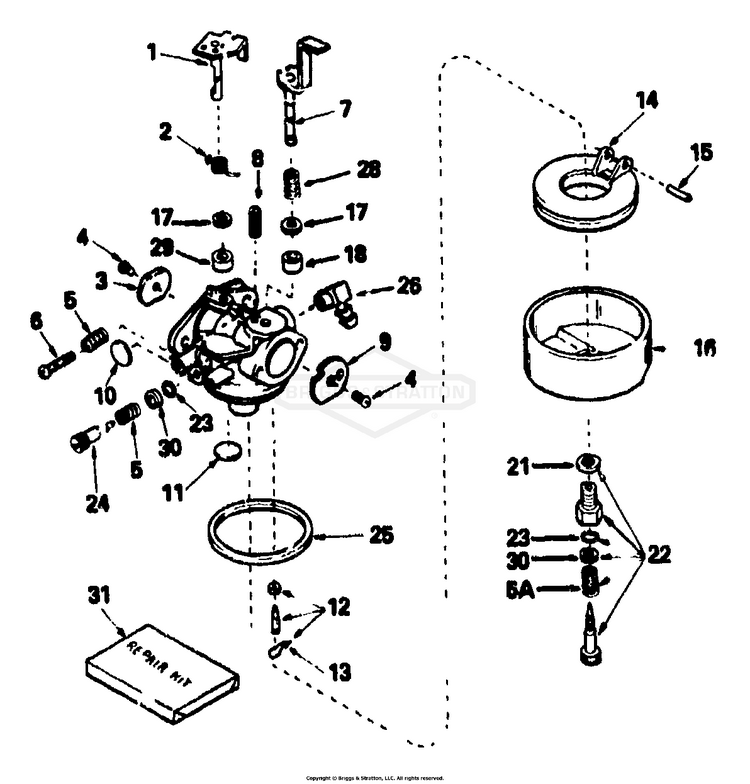

Carburetor No. 632499

...
...
Carburetor Contact Generac for quantity required BS-632499
...
1
Shaft & Lever Assy., Throttle Contact Generac for quantity required BS-631776
...
2
Spring, Throttle return Contact Generac for quantity required BS-631970
...
3
Shutter, Throttle Contact Generac for quantity required BS-631778
...
4
Screw, Throttle & Choke shutter Contact Generac for quantity required BS-650506
...
5
Spring, Idle regulating screw Contact Generac for quantity required BS-630766
...
5A
Spring, Main adjustment screw Contact Generac for quantity required BS-630738
...
6
Screw, Idle regulating Contact Generac for quantity required BS-650417
...
7
Shaft & Lever Assy., Choke Contact Generac for quantity required BS-631812
...
8
Spring, Choke positioning Contact Generac for quantity required BS-630735
...
9
Shutter, Choke Contact Generac for quantity required BS-631753
...
10
Plug, Welch Contact Generac for quantity required; Included in Repair Kit BS-630748
...
11
Plug, Welch Contact Generac for quantity required; Included in Repair Kit BS-631027
...
12
Inlet Needle, Seat & Clip Assy, (Incl. No. 13); Contact Generac for quantity required; Included in Repair Kit BS-631021
...
13
Clip, Inlet needle Contact Generac for quantity required BS-631022
...
14
Float, Carburetor Contact Generac for quantity required BS-632019
...
15
Shaft, Float Contact Generac for quantity required; Included in Repair Kit BS-631024
...
16
Bowl, Float Contact Generac for quantity required BS-631867
...
17
Washer, Flat Contact Generac for quantity required BS-631184
...
18
Washer, Felt Contact Generac for quantity required BS-631183
...
21
(C) FITTING 90 DEG W Contact Generac for quantity required BS-7027110YP
...
22
Adjustment Screw Assy., Main (Incl. Nos. 5A, 21, 23 & 30); Contact Generac for quantity required; Included in Repair Kit BS-632239
...
23
"O" Ring, Adjustment screw Contact Generac for quantity required; Included in Repair Kit BS-630740
...
24
Screw, Idle adjustment Contact Generac for quantity required; Included in Repair Kit BS-632281
...
25
Gasket, Bowl-to-body Contact Generac for quantity required; Included in Repair Kit BS-631028
...
26
Fitting, Fuel Contact Generac for quantity required BS-631807
...
28
Spring, Choke return Contact Generac for quantity required BS-632043
...
29
Seal, Dust Contact Generac for quantity required BS-631971
...
30
Washer, Flat Contact Generac for quantity required BS-630739
...
31
Repair Kit (Incl. items noted) Contact Generac for quantity required BS-632347

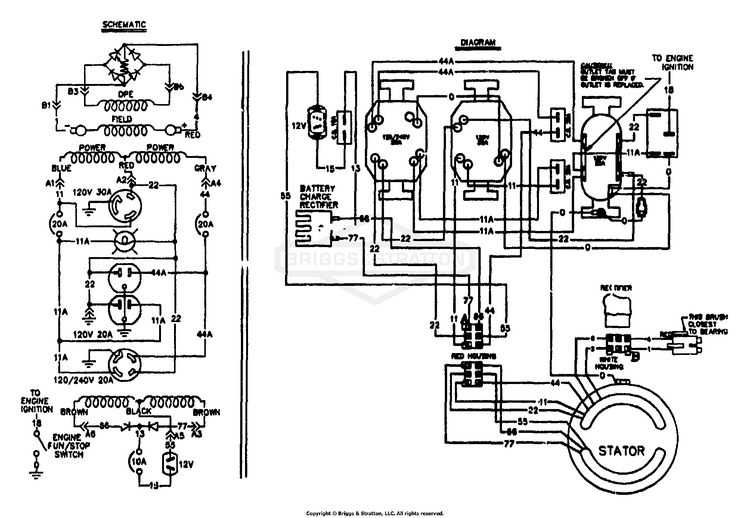

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

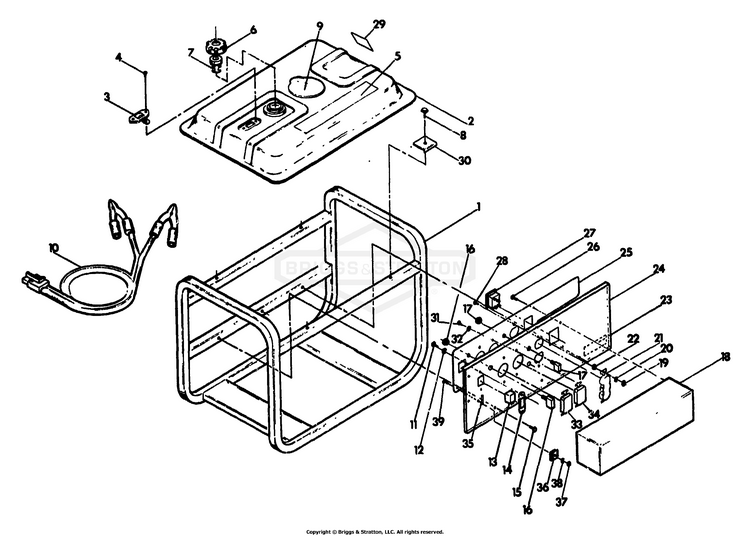

Repair Parts - Cradle

...
...
1
CRADLE ASSY BS-75932
...
2
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
3
GAUGE, Fuel Level BS-66391B
...
4
SCREW, Pan Head Machine- M5-0.80 x 12mm BS-52749
...
5
DECAL- Portable information BS-70365
...
6
CAP, Fuel Tank BS-69658
...
7
STRAINER, Fuel Tank Filler BS-70630
...
8
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
9
CVR, ACC, SPARKPLUG BS-64680BGS
...
10
CABLE, Battery Charge BS-65787
...
11
SCREW, Pan Head Machine- M3-0.50 x 5mm BS-70728
...
12
WASHER, M3 Lock BS-43182GS
...
13
OUTLET, 12 V DC BS-66821GS
...
14
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418 BS-66822GS
...
15
SCREW, Self Drilling BS-75494
...
16
BRKR, CRCT, 10A BS-75207BGS
...
17
BREAKER-CIRCUIT 20A BS-209872GS
...
18
COVER, Back Panel BS-75937
...
19
NUT, #8-32 BS-22471GS
...
20
LOCKWASHER- No. 8 BS-22264
...
21
OUTLET, 20A,120V BS-68759GS
...
22
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
23
DECAL- USDA Approval BS-29084
...
24
PANEL, Receptacle BS-75936
...
25
DECAL- Receptacle Panel BS-75924
...
26
CRIMPTITE, #8-18X1/4L BS-63036GS
...
27
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
28
SCREW BS-797483
...
29
DECAL- Fuel Shutoff BS-73054
...
30
CLIP, Fuel Tank BS-76221
...
31
SCREW, Pan Head Machine- No. 6-32 x 3/8" BS-36901
...
32
PULLEY, PUMP DRIVE BS-5022155SM
...
33
OUTLET, 120/240V Locking, 20A BS-68867GS
...
34
OUTLET-120V TL30A BS-705932
...
35
TAPE, Electrical- 38" long BS-27565
...
36
RECTIFIER, BATTERY CHARGE BS-65795GS
...
37
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
38
VALVE, FUEL SHUT OFF BS-84010414
...
39
SCREW, Pan Head Machine- No. 8-32 x 3/4" BS-36935
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

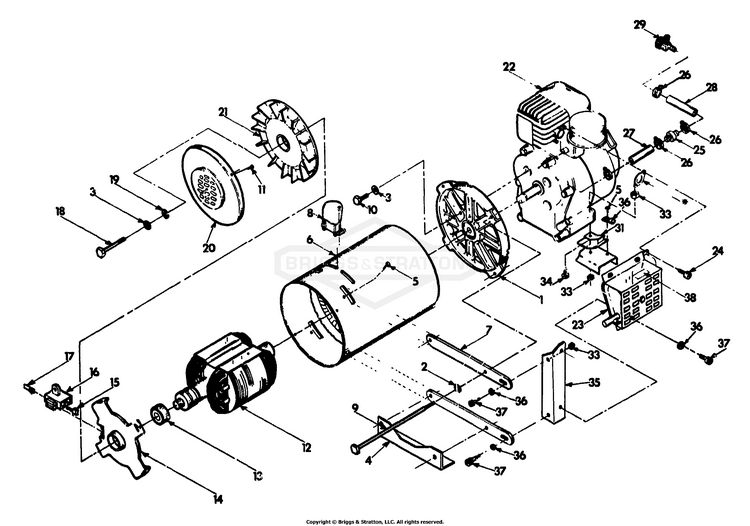

Repair Parts - Generator

...
...
1
HOUSING, Adapter BS-60220F
...
2
CAP BS-5022097SM
...
3
WASHER, Lock BS-22129GS
...
4
SUPPORT, Rear Generator BS-70634
...
5
CREW (Taptite)- No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSY BS-75948
...
7
BAR, Stator Bolt BS-75950
...
8
RECTIFIER, Bridge BS-28293
...
9
BOLT, Stator BS-44395H
...
10
SCREW- 5/16" 24 x 3/4" BS-22336
...
11
SCREW (Taptite)- No. 10-32 x 1/4" BS-46852
...
12
ROTOR ASSY BS-68397A
...
13
BEARING, Rotor BS-24049
...
14
CARRIER, Bearing BS-44943
...
15
ASSY, BRUSH BS-A24044AGS
...
16
HLDR, BRUSH, UNIV BS-23877DGS
...
17
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
18
SCREW BS-28092GS
...
19
Washer, .34 x 1 x 10 BS-50190GS
...
20
COVER, Fan BS-75941
...
21
FAN, Cooling BS-44331
...
22
(C) DRAWBAR BS-7072269YP
...
23
MUFFLER ASSY BS-72084
...
24
ABSORBER, SHOCK BS-84011453
...
25
FILTER, FUEL, 150 MICRN BS-68740GS
...
26
CLAMP, Hose BS-48031C
...
27
HOSE- 1/4" ID x 3" long BS-47662B
...
28
HOSE- 1/4" ID X 7" long BS-47662BA
...
29
VALVE, Fuel Shutoff BS-75938
...
30
LUG, Grounding BS-25433
...
31
MOUNT, Vibration 45°. BS-70642GS
...
32
SCREW BS-70644GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
34
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
35
SPPRT, MFFLR, GNRC STYLE BS-75949GS
...
37
SHCS, M8-1.25 X 14 BS-52829GS
...
38
DECAL- Caution!- Hot! BS-68824
...
MANUAL-OPERATOR BS-76226GS

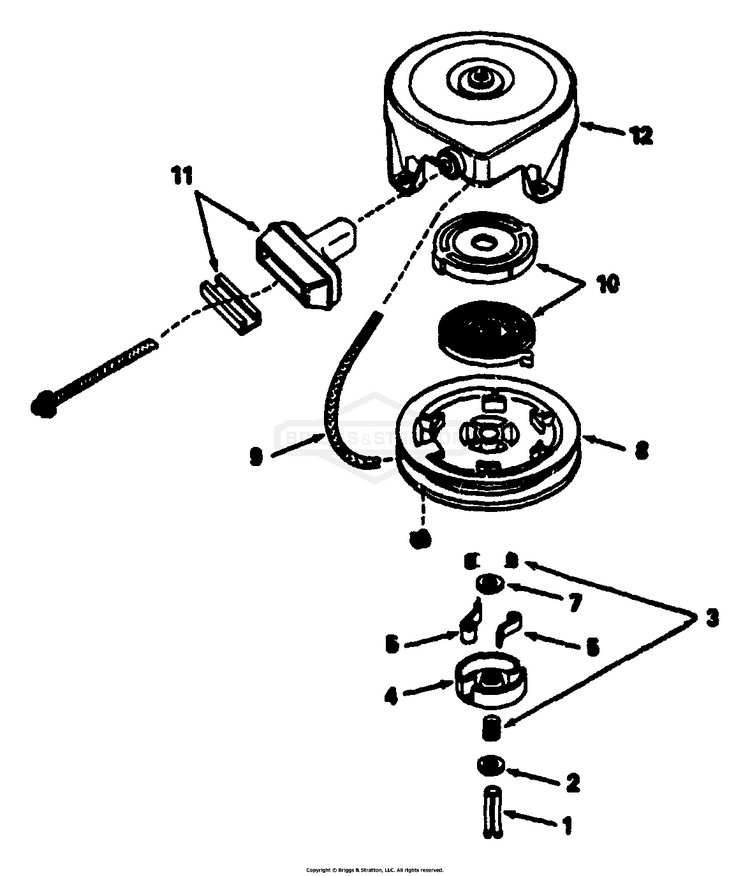

Rewind Starter No. 590633

...
...
WASHER Contact Generac for quantity required BS-590633
...
1
Pin, Spring (Incl. No. 7) Contact Generac for quantity required BS-590699A
...
2
Washer Contact Generac for quantity required BS-590600
...
3
ARM, Rocker Contact Generac for quantity required BS-590651
...
4
Retainer Contact Generac for quantity required BS-590627
...
5
NUT Contact Generac for quantity required BS-590641
...
7
FILTER, A/C Cartridge Contact Generac for quantity required BS-590601
...
8
NUT Contact Generac for quantity required BS-590632
...
9
Rope, Starter Contact Generac for quantity required BS-590451A
...
10
Spring & Keeper Assy. Contact Generac for quantity required BS-590629
...
11
Handle Assy., Starter Contact Generac for quantity required BS-590367
...
12
Housing Assy., Starter Contact Generac for quantity required BS-590634
