Briggs & Stratton 9024-2 - 580.328451, 5,000 Watt Craftsman

Model: 9024-2 - 580.328451, 5,000 Watt

Save Part Not Listed?
product name

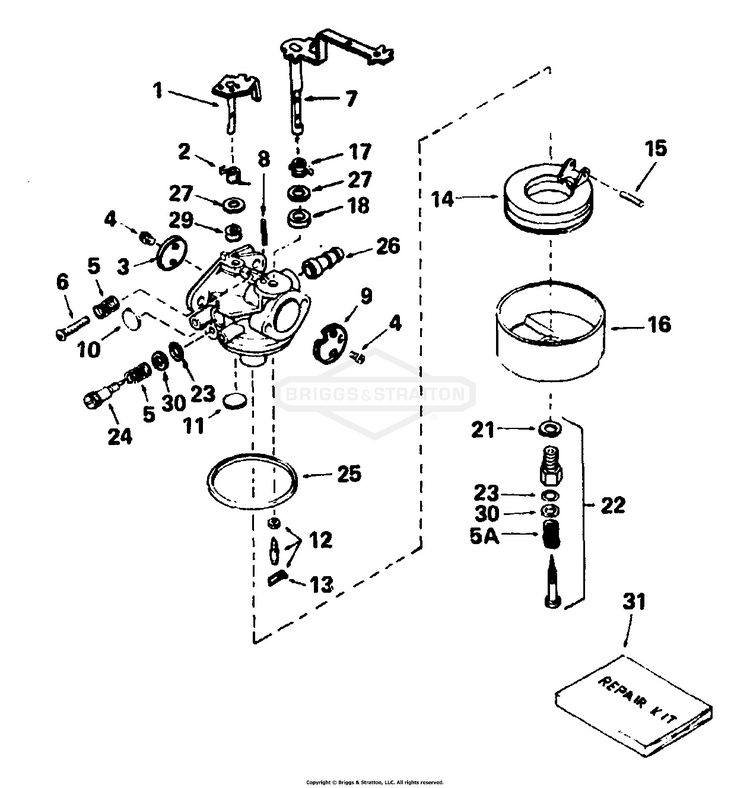

Carburetor No. 632242

...
...
Carburetor Contact Generac for quantity required BS-632242
...
1
Shaft & Lever Assy., Throttle Contact Generac for quantity required BS-632243
...
2
Spring, Throttle return Contact Generac for quantity required BS-632244
...
3
Shutter, Throttle Contact Generac for quantity required BS-632245
...
4
Screw, Throttle & Choke shutter Contact Generac for quantity required BS-650506
...
5
Spring, Idle regulating screw Contact Generac for quantity required BS-630766
...
5A
Spring, Main adjustment screw Contact Generac for quantity required BS-630738
...
6
Screw, Idle regulating Contact Generac for quantity required BS-650417
...
7
Shaft & Lever Assy., Choke Contact Generac for quantity required BS-632249
...
8
Spring, Choke return Contact Generac for quantity required BS-630735
...
9
Shutter, Choke Contact Generac for quantity required BS-632248
...
10
Plug, Welch Contact Generac for quantity required BS-630748
...
11
Plug, Welch Contact Generac for quantity required BS-631027
...
12
Inlet Needle, Seat & Clip Assy. (Incl. No. 13) Contact Generac for quantity required BS-631021
...
13
Clip, Inlet needle Contact Generac for quantity required BS-631022
...
14
Float, Carburetor Contact Generac for quantity required BS-632019
...
15
Shaft, Float Contact Generac for quantity required BS-631024
...
16
Bowl, Float Contact Generac for quantity required BS-631867
...
17
Spring Contact Generac for quantity required BS-632043
...
18
Washer, Felt Contact Generac for quantity required BS-631183
...
21
(C) FITTING 90 DEG W Contact Generac for quantity required BS-7027110YP
...
22
Adjustment Screw Assy., Main (Incl. Nos. 5A, 21, 23 & 30) Contact Generac for quantity required BS-632239
...
23
"O" Ring, Adjustment screw Contact Generac for quantity required BS-630740
...
24
Screw, Idle adjustment Contact Generac for quantity required BS-632281
...
25
Gasket, Bowl-to-body Contact Generac for quantity required BS-631028
...
26
Fuel Fitting Contact Generac for quantity required BS-632164
...
27
Washer Contact Generac for quantity required BS-631184
...
29
Seal, Dust Contact Generac for quantity required BS-631971
...
30
Washer, Flat Contact Generac for quantity required BS-630739
...
31
Repair Kit (Incl. items 10, 11, 12, 15, 22, 23, 24, 25) Contact Generac for quantity required BS-632347

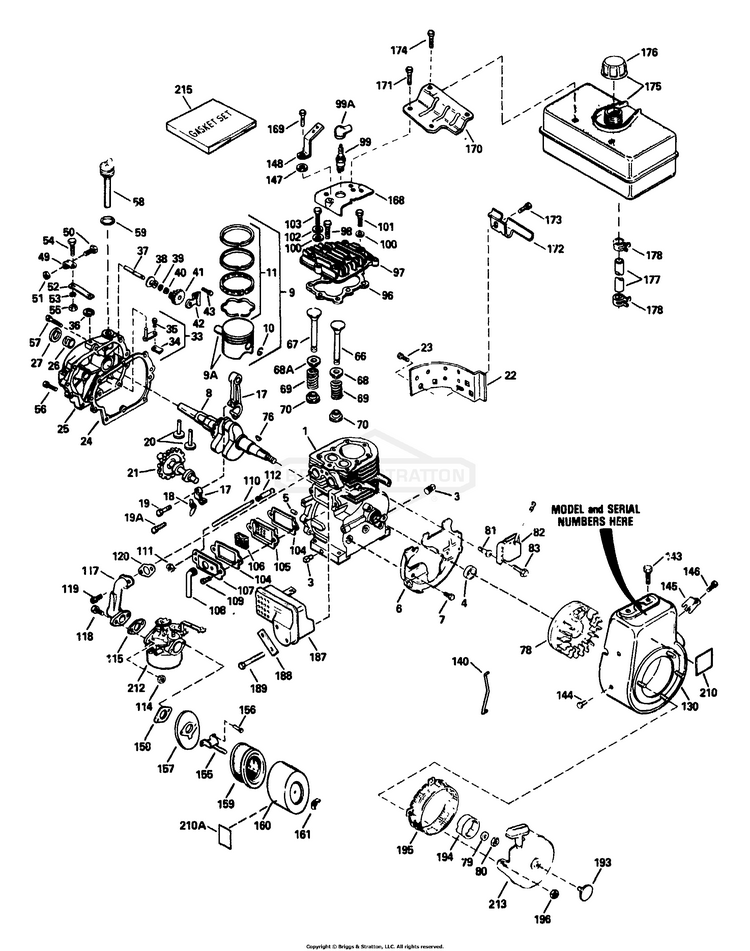

Craftsman 4-Cycle Engine

...
...
1
Cylinder (Incl. Nos. 3, 4 & 5) Contact Generac for quantity required BS-35371
...
3
Plug, Pipe Contact Generac for quantity required BS-27642
...
4
Seal, Oil Contact Generac for quantity required BS-35319
...
5
GEAR, WORM, Contact Generac for quantity required BS-7027652YP
...
6
Baffle, Blower housing Contact Generac for quantity required BS-35326
...
7
Screw, Hex washer hd. Durlock, 1/4-20 x 5/8 Contact Generac for quantity required BS-650561
...
8
Crankshaft Contact Generac for quantity required BS-35425
...
9
Piston, Pin & Ring Assy. (Std.) (Incl. Nos. 9A, 10 & 11) Contact Generac for quantity required BS-34860
...
9
Piston, Pin & Ring Assy. (.010 oversize) (Incl. Nos. 3A, 10 & 11) Contact Generac for quantity required BS-34861
...
9
Piston, Pin & Ring Assy. (.020 oversize) (Incl. Nos. 9A, 10 & 11) Contact Generac for quantity required BS-34862
...
9A
Piston & Pin Assy. (Std.) (Incl. No. 10) Contact Generac for quantity required BS-34863
...
9A
Piston & Pin Assy. (.010 oversize) (Incl. No. 10) Contact Generac for quantity required BS-34864
...
9A
Piston & Pin Assy. (.020 oversize) (Incl. No. 10) Contact Generac for quantity required BS-34865
...
10
ROD BRAKE ADJUSTMENT Contact Generac for quantity required BS-7027888YP
...
11
Ring Set, Piston (Std.) Contact Generac for quantity required BS-34866
...
11
Ring Set, Piston (.010 oversize) Contact Generac for quantity required BS-34867
...
11
Ring Set, Piston (.020 oversize) Contact Generac for quantity required BS-34868
...
17
Rod Assy., Connecting (Incl. Nos. 18, 19 & 19A) Contact Generac for quantity required BS-35373A
...
18
Dipper, Oil Contact Generac for quantity required BS-35374
...
19
Bolt, Connecting rod Contact Generac for quantity required BS-650882
...
19A
Bolt, Connecting rod Contact Generac for quantity required BS-650908
...
20
Lifter, Valve Contact Generac for quantity required BS-34034
...
21
Camshaft (Mechanical Compression Release) Contact Generac for quantity required BS-35375
...
22
Extension, Blower housing Contact Generac for quantity required BS-33273A
...
23
Screw, Fil. hd. Sems, 10-24 x 1/2 Included in Gasket Set. Contact Generac for quantity required BS-650128
...
24
Gasket, Cylinder cover Contact Generac for quantity required BS-35262
...
25
Cover Assy., Cylinder (Incl. Nos. 26, 27 & 37) Contact Generac for quantity required BS-35376
...
26
Bearing, Cylinder cover Contact Generac for quantity required BS-35377
...
27
Seal, Oil Contact Generac for quantity required BS-35319
...
33
Rod Assy., Governor (Incl. Nos. 34 & 35) Contact Generac for quantity required BS-30699C
...
34
Yoke, Governor Contact Generac for quantity required BS-30700
...
35
Screw, Fil. hd. Sems, 6-40 x 5/16 Contact Generac for quantity required BS-650494
...
36
Ring, Retaining Contact Generac for quantity required BS-29642
...
37
Shaft, Governor Contact Generac for quantity required BS-31845
...
38
Spool, Governor Contact Generac for quantity required BS-30588A
...
39
Washer, Flat Contact Generac for quantity required BS-30590A
...
40
DECAL BAFFLE FRONT Contact Generac for quantity required BS-7029193YP
...
41
Gear, Governor (Incl. No. 39) Contact Generac for quantity required BS-35378
...
42
Bracket, Governor gear Contact Generac for quantity required BS-33369
...
43
Screw, Hex washer hd. thread forming, 10-24 x 1/2 Contact Generac for quantity required BS-650836
...
49
Clamp, Governor lever Contact Generac for quantity required BS-29916
...
50
Screw, Hex washer hd., 10-32 x 3/4 Contact Generac for quantity required BS-29826
...
51
(C) WIRE HARNESS PIS Contact Generac for quantity required BS-7029216YP
...
52
Lever, Governor Contact Generac for quantity required BS-33454
...
53
Washer, E.T. Lock Contact Generac for quantity required BS-29918
...
54
Screw, Hex washer hd., 8-32 x 5/16 Contact Generac for quantity required BS-650548
...
55
Locknut, Hex "Keps", 8-32 Contact Generac for quantity required BS-30322
...
56
Screw, Hex washer hd. Powerlock, 1/4-20 x 1-11/16 Contact Generac for quantity required BS-650832
...
57
Screw, Hex washer hd. Powerlock, 1/4-20 x 1-3/16 Contact Generac for quantity required BS-650833
...
58
Dipstick, Oil (Incl. No. 59) Contact Generac for quantity required BS-33463
...
59
Gasket, Dipstick Included in Gasket Set. Contact Generac for quantity required BS-29673
...
66
Valve, Exhaust (Std.) (Incl. No. 70) Contact Generac for quantity required BS-27878A
...
66
Valve, Exhaust (1/32" oversize) (Incl. No. 70) Contact Generac for quantity required BS-27880A
...
67
Valve, intake (Std.) (Incl. No. 70) Contact Generac for quantity required BS-34035
...
67
Valve, Intake (1/32" oversize) (Incl. No. 70) Contact Generac for quantity required BS-34036
...
68
Cap, Upper valve spring Contact Generac for quantity required BS-27882
...
68A
Seal Assy., Intake valve Contact Generac for quantity required BS-34689
...
69
Spring, Valve Contact Generac for quantity required BS-27881
...
70
Cap, Lower valve spring Contact Generac for quantity required BS-32581
...
76
Key, Flywheel Contact Generac for quantity required BS-32589
...
78
Flywheel Contact Generac for quantity required BS-611090
...
79
Washer, Lock Contact Generac for quantity required BS-650880
...
80
Nut, Flywheel Contact Generac for quantity required BS-650881
...
81
Stud, Solid State mounting Contact Generac for quantity required BS-650872
...
82
Solid State Assy. Contact Generac for quantity required BS-35135
...
83
Screw, Hex hd. Sems, 10-24 x 1 Contact Generac for quantity required BS-650814
...
96
Gasket, Cylinder head Included in Gasket Set. Contact Generac for quantity required BS-34923
...
97
Head, Cylinder Contact Generac for quantity required BS-34030
...
98
Screw, Hex flange hd., 5/16-18 x 1-1/2 Contact Generac for quantity required BS-6021A
...
99
Resistor Spark Plug (Champion RJ-17LM or equivalent) Contact Generac for quantity required BS-34251
...
99A
Cover, Spark plug Contact Generac for quantity required BS-27276
...
100
Washer, Flat Contact Generac for quantity required BS-650691
...
101
Screw, Special hex hd. tapped, 5/16-18 x 1-3/4 Contact Generac for quantity required BS-650727
...
102
Washer, Belleville Contact Generac for quantity required BS-650690
...
103
Screw, Hex flange hd., 5/16-18 x 2 Contact Generac for quantity required BS-650694A
...
104
Gasket, Breather Included in Gasket Set. Contact Generac for quantity required BS-27896
...
105
Body, Breather Contact Generac for quantity required BS-28423
...
106
Element, Breather Contact Generac for quantity required BS-28424
...
107
SCRAPER BLADE, 17 Contact Generac for quantity required BS-7035947YP
...
108
Tube, Breather Contact Generac for quantity required BS-35350
...
109
Screw, Fil. hd. Sems, 10-24 x 1/2 Contact Generac for quantity required BS-650128
...
110
Bolt, Governor spring adjusting Contact Generac for quantity required BS-30845A
...
111
Nut, Lock, 10-32 Contact Generac for quantity required BS-33450
...
112
Spring, Governor bolt Contact Generac for quantity required BS-30886A
...
114
Nut & Lockwasher, 1/4-28 Contact Generac for quantity required BS-29752
...
115
Gasket, Carburetor Included in Gasket Set. Contact Generac for quantity required BS-33263
...
117
Pipe, Intake Contact Generac for quantity required BS-34707
...
118
Screw, Fil. hd. Sems, 1/4-28 x 1 Contact Generac for quantity required BS-30088A
...
119
Screw, Fil. hd. Sems, 5/16-18 x 1-1/8 Contact Generac for quantity required BS-650378
...
120
Tube, Grass Included in Gasket Set. Contact Generac for quantity required BS-7027915YP
...
130
Housing, Blower Contact Generac for quantity required BS-33375C
...
140
Link, Governor-to-throttle Contact Generac for quantity required BS-33878
...
143
Screw, Hex hd. spinlock thread forming, 5/16-18 x 3/4 Contact Generac for quantity required BS-650788
...
144
Screw, Phil. hex hd. Sems, 5/16-24 x 21/32 Contact Generac for quantity required BS-29747B
...
145
Cover, Starter hole Contact Generac for quantity required BS-33013
...
146
Screw, Pan hd. taptite, 8-32 x 3/8 Contact Generac for quantity required BS-650760
...
147
Washer, Internal lock Contact Generac for quantity required BS-650890
...
148
Main Harness Contact Generac for quantity required BS-5030747
...
155
Bracket, Air cleaner Contact Generac for quantity required BS-33287
...
156
GRASS BAG, PLATINUM Contact Generac for quantity required BS-7045199YP
...
157
Bracket, Air cleaner Contact Generac for quantity required BS-33266
...
158
Gasket, Air cleaner Included in Gasket Set. Contact Generac for quantity required BS-27272
...
159
Element, Air cleaner Contact Generac for quantity required BS-33268
...
160
Cover, Air cleaner Contact Generac for quantity required BS-33269A
...
161
Nut, Wing, 1/4-20 Contact Generac for quantity required BS-650513
...
168
Cover, Cylinder head Contact Generac for quantity required BS-33272A
...
169
Screw, Hex washer hd. taptite, 1/4-20 x 5/8 Contact Generac for quantity required BS-650802
...
170
PHMS, #10-24 X 1/2 LG Contact Generac for quantity required BS-34154GS
...
171
Screw, Hex hd., 5/16-18 x 5/8 Contact Generac for quantity required BS-650713
...
172
Bracket, Fuel tank Contact Generac for quantity required BS-34155
...
173
Screw, Hex washer hd. Durlock, 1/4-20 x 5/8 Contact Generac for quantity required BS-650561
...
174
Screw, Hex washer hd. thread cutting, 1/4-15 x 7/8 Contact Generac for quantity required BS-650665
...
175
Tank, Fuel (Incl. Nos. 176 & 178) Contact Generac for quantity required BS-34156A
...
176
Cap, Fuel tank Contact Generac for quantity required BS-35355
...
177
Gas Tank Mount (Manual) Contact Generac for quantity required BS-5030705
...
178
Clamp, Fuel line Contact Generac for quantity required BS-26460
...
187
Muffler Contact Generac for quantity required BS-33280A
...
188
Plate, Lock Contact Generac for quantity required BS-31588
...
189
Screw, Hex hd., 5/16-18 x 3-3/16 Contact Generac for quantity required BS-650729
...
193
Plug, Starter Contact Generac for quantity required BS-35392
...
194
Hub, Starter Contact Generac for quantity required BS-35287
...
195
Screen, Starter Contact Generac for quantity required BS-35446
...
196
Nut & Lockwasher, 1/4-28 Contact Generac for quantity required BS-29752
...
210
Decal, Name Contact Generac for quantity required BS-34686
...
210A
Decal, Instruction Contact Generac for quantity required BS-34346
...
212
Carburetor (Incl. No. 115) Contact Generac for quantity required BS-632242
...
213
WASHER Contact Generac for quantity required BS-590633
...
215
Gasket Set Contact Generac for quantity required BS-33279F

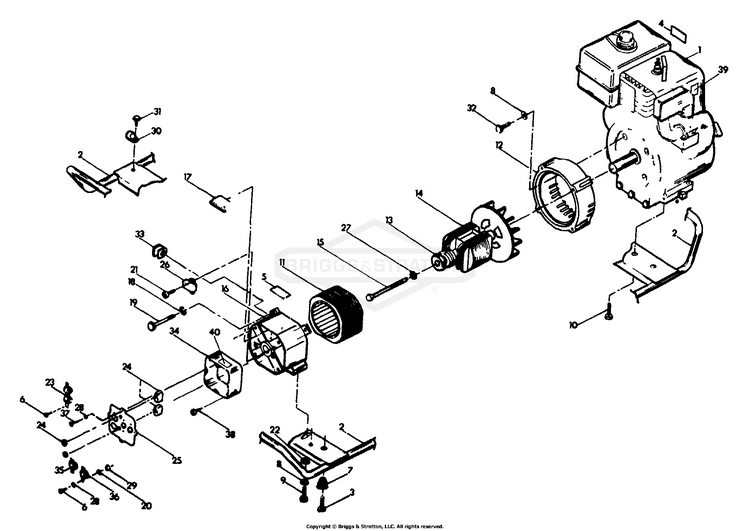

Generator

...
...
1
ENGINE, CRAFTSMAN Model 143.786202 Contact Generac for quantity required BS-74739
...
2
CRADLE ASSEMBLY BS-74766
...
3
SCREW - 5/16"-18 X 1/2" BS-24910
...
4
DECAL - CAUTION BS-39178
...
5
DECAL - WARNING BS-72079
...
6
SCREW BS-797483
...
7
VIBRATION MOUNT BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
SCREW - 3/8"-16 x 3/4" 1 BS-59637
...
11
STATOR ASSEMBLY BS-74709
...
12
ADPTR, HSNG, 8 HP BS-66365DGS
...
13
BEARING BS-65791GS
...
14
ROTOR ASSEMBLY BS-74716
...
15
SWIVEL, Shift Linkage, Powdered Metal BS-7073607SM
...
16
CARRIER, REAR BEARING BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
STATOR BOLT - M6-1.00 x 130mm BS-66449D
...
20
LOCKWASHER -- No. 8 BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
CIRCUIT BREAKER - 20 AMP BS-66819
...
25
RECEPTACLE PANEL BS-74702
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
FLAT WASHER - SPECIAL BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, #8-32 BS-22471GS
...
30
GROUNDING LUG BS-25433
...
31
SCREW - No. 10-24 x 1/2" Contact Generac for quantity required BS-24489
...
32
HEX SCREW - 5/16"-24 x 3/4" Contact Generac for quantity required BS-22336
...
33
GROMMET, RUBBER BS-67022GS
...
34
BRKT, TRACTION CABLE BS-7072280YP
...
35
OUTLET-120V TL30A BS-705932
...
36
OUTLET, 120/240V Locking, 20A BS-68867GS
...
37
SCREW - No. 10-32 x 1/4" Contact Generac for quantity required BS-33528
...
38
SCREW - M5-0.80mm Contact Generac for quantity required BS-73540
...
39
DECAL - WARRANTY Contact Generac for quantity required BS-63118
...
40
DECAL, Neutral Ground Contact Generac for quantity required BS-74728GS
...
PLUG, 125V 30A 3-Prong Contact Generac for quantity required BS-100523GS
...
PLUG-120/240V TL20A Contact Generac for quantity required BS-100522GS
...
OWNER'S MANUAL Contact Generac for quantity required BS-75429

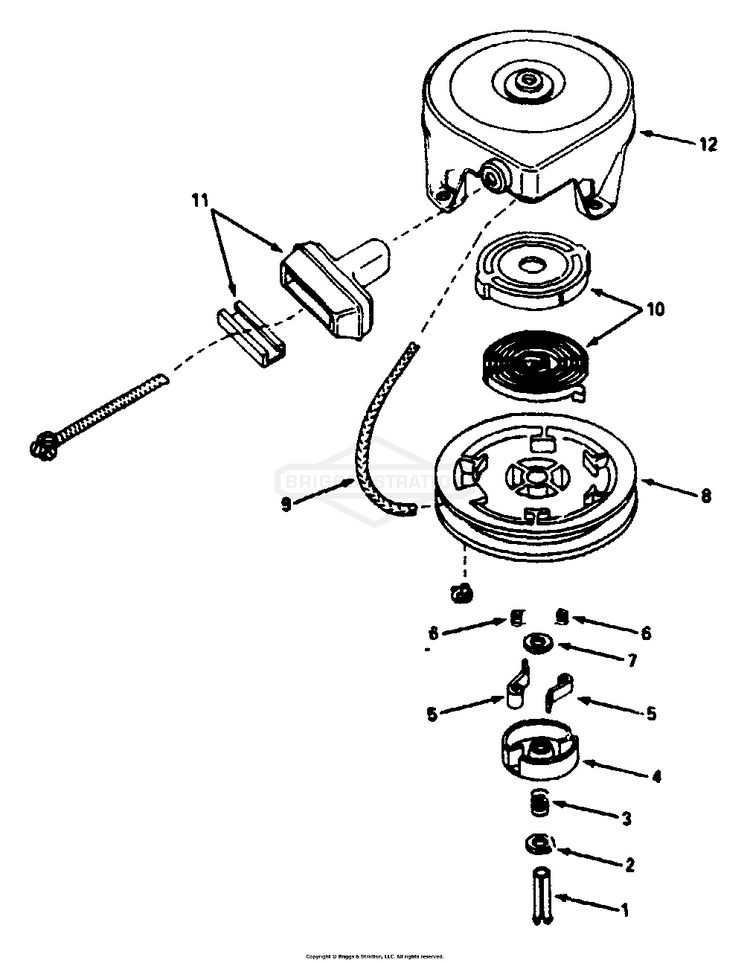

Rewind Starter No. 590633

...
...
WASHER Contact Generac for quantity required BS-590633
...
1
Pin, Spring (Incl. No. 7) Contact Generac for quantity required BS-590599A
...
2
Washer Contact Generac for quantity required BS-590600
...
3
TUBE, Breather Contact Generac for quantity required BS-590698
...
4
Retainer Contact Generac for quantity required BS-590627
...
5
NUT Contact Generac for quantity required BS-590641
...
6
Spring, Dog Contact Generac for quantity required BS-590617
...
7
FILTER, A/C Cartridge Contact Generac for quantity required BS-590601
...
8
NUT Contact Generac for quantity required BS-590632
...
9
Rope, Starter Contact Generac for quantity required BS-590451A
...
10
Spring & Keeper Assy. Contact Generac for quantity required BS-590629
...
11
Handle Assy., Starter Contact Generac for quantity required BS-590387
...
12
Housing Assy., Starter Contact Generac for quantity required BS-590634

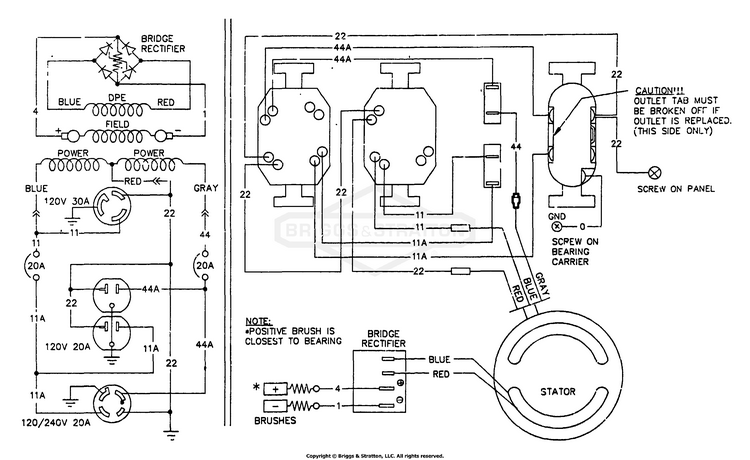

Wiring Diagram/Electrical Schematic

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
