Briggs & Stratton 9024-1 - 580.328451, 5,000 Watt Craftsman

Model: 9024-1 - 580.328451, 5,000 Watt

Save Part Not Listed?

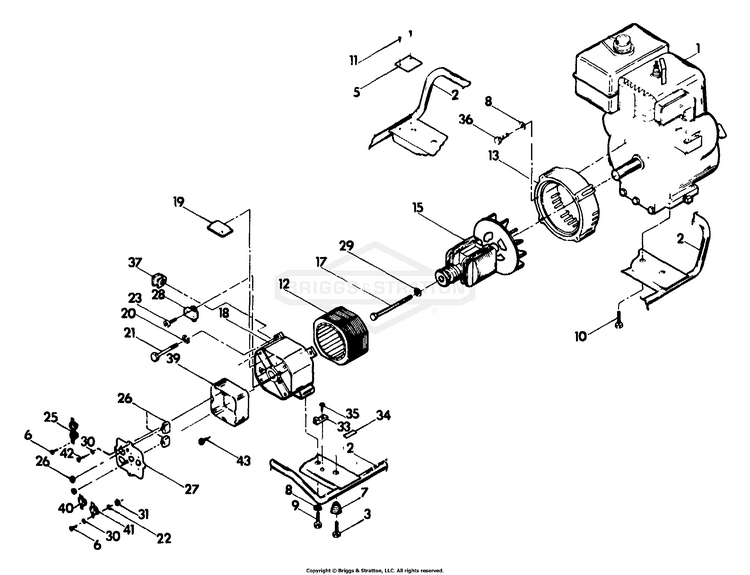

Generator

ENGINE- Craftsman 143.786202 BS-74739

CRADLE ASSY BS-72097

SCREW (Taptite)- 5/16"-18 x 1/2" BS-24910

PLATE, Serial BS-26656

SCREW BS-797483

MOUNT, Vibration BS-23594

WASHER, Lock BS-22129GS

CAPSCREW M8-1.25X16 Contact Generac for quantity required BS-703988

SCREW (Taptite)- 3/8"-16 x 3/4" Contact Generac for quantity required BS-59637

RIVET - Stainless Steel BS-36261

ADPTR, HSNG, 8 HP BS-66365DGS

ROTOR ASSY BS-73056

BOLT, Rotor-5/16"-24 x 8" BS-46958

CARRIER, Rear Bearing BS-66825

ASSY, RECTIFIER, BRIDGE BS-66850GS

CAP BS-5022097SM

BOLT, Stator- M6-1.00 x 140mm BS-66449F

LOCKWASHER- No. 8 BS-22264

HHCS, M5-0.8 X 16 BS-49815GS

OUTLET, 20A,120V BS-68759GS

BREAKER, Circuit - 20 amp BS-66819

PANEL, Receptacle BS-74702

ASSEMBLY, BRUSH HOLDER BS-66386GS

FLATWASHER- Special BS-67451

TIRE ASSM, 24X12.00-1 BS-5023365YP

NUT, #8-32 BS-22471GS

LUG, Grounding BS-25433

DECAL, GRD LUG BS-67210AGS

CRIMPTITE, 10-24 x 1/2 BS-56893GS

SCREW, Hex - 5/16"-24 x 3/4" BS-22336

GROMMET, RUBBER BS-67022GS

BRKT, TRACTION CABLE BS-7072280YP

OUTLET-120V TL30A BS-705932

OUTLET, 120/240V Locking, 20A BS-68867GS

SCREW, Pan Head Machine- No. 10-32 x 1/4" BS-33528

SCREW, Pan Head Machine- M5-0.80 BS-73540

PLUG, 125V 30A 3-Prong BS-100523GS

PLUG-120/240V TL20A BS-100522GS

MANUAL, Owners BS-74750

Wiring Diagram/Electrical Schematic

No Parts Available for this Schematic
