Briggs & Stratton 9024-0 - 580.328450, 5,000 Watt Craftsman

Model: 9024-0 - 580.328450, 5,000 Watt

Save Part Not Listed?
product name

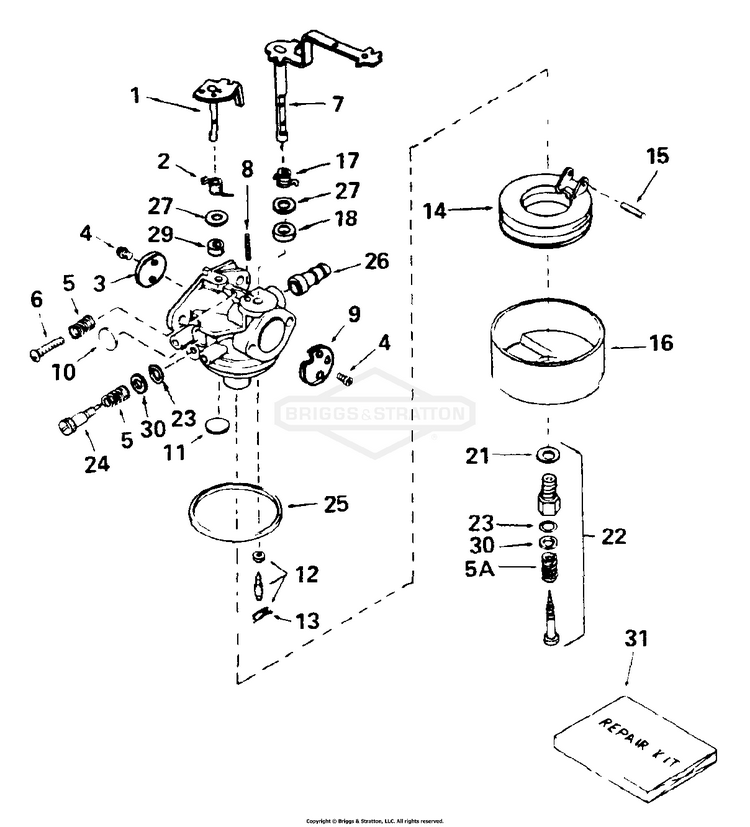

Carburetor No. 632242 (10/95)

...
...
Carburetor BS-632242
...
1
Shaft & Lever Assy., Throttle BS-632243
...
2
Spring, Throttle return BS-632244
...
3
Shutter, Throttle BS-632245
...
4
Screw, Throttle & Choke shutter BS-650506
...
5
Spring, Idle regulating screw BS-630766
...
5A
Spring, Main adjustment screw BS-630738
...
6
Screw, Idle regulating BS-650417
...
7
Shaft & Lever Assy., Choke BS-632249
...
8
Spring, Choke return BS-630735
...
9
Shutter, Choke BS-632248
...
10
Plug, Welch (Incl. in No. 31, P/N 632347, Repair Kit.) BS-630748
...
11
Plug, Welch (Incl. in No. 31, P/N 632347, Repair Kit.) BS-631027
...
12
Inlet Needle, Seat & Clip Assy. (Incl. No. 13. Incl. in No. 31, P/N 632347, Repair Kit.) BS-631021
...
13
Clip, Inlet needle BS-631022
...
14
Float, Carburetor BS-632019
...
15
Shaft, Float (Incl. in No. 31, P/N 632347, Repair Kit.) BS-631024
...
16
Bowl, Float BS-631867
...
17
Spring BS-632043
...
18
Washer, Felt BS-631183
...
21
(C) FITTING 90 DEG W BS-7027110YP
...
22
Adjustment Screw Assy., Main (Incl. Nos. 5A, 21, 23 & 30. Incl. in No. 31, P/N 632347, Repair Kit.) BS-632239
...
23
"O" Ring, Adjustment screw (Incl. in No. 31, P/N 632347, Repair Kit.) BS-630740
...
24
Screw, Idle adjustment (Incl. in No. 31, P/N 632347, Repair Kit.) BS-632281
...
25
Gasket, Bowl-to-body (Incl. in No. 31, P/N 632347, Repair Kit.) BS-631028
...
26
Fuel Fitting BS-632164
...
27
Washer BS-631184
...
29
Seal, Dust BS-631971
...
30
Washer, Flat BS-630739
...
31
Repair Kit (Incl. items 10, 11, 12, 15, 22, 23, 24, & 25.) BS-632347

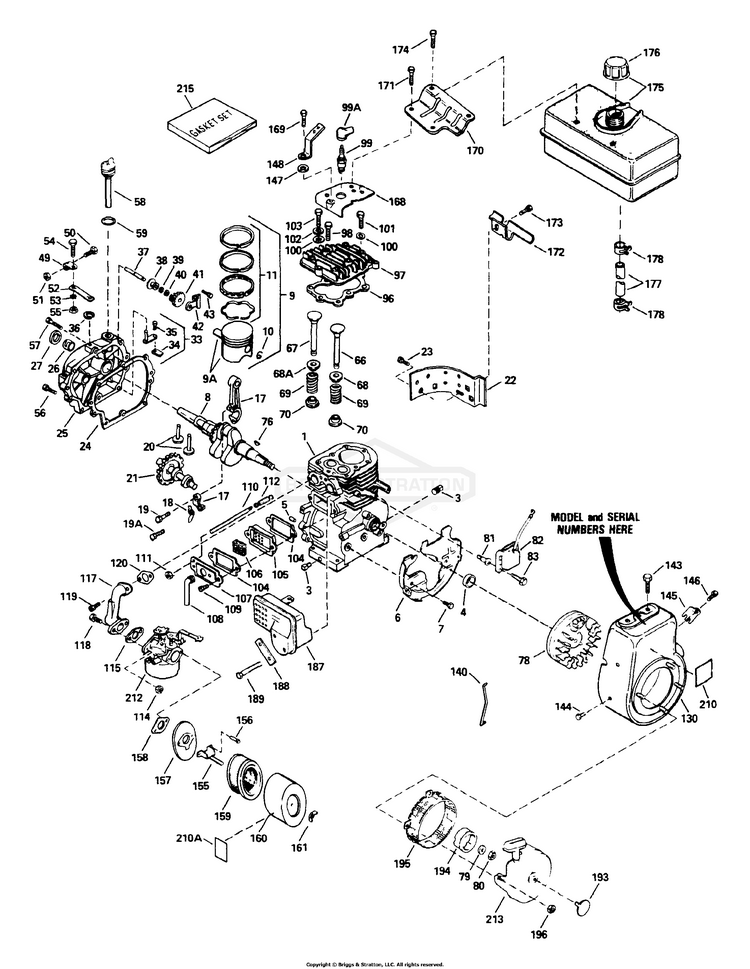

Craftsman 4-Cycle Engine (10/95)

...
...
1
Cylinder (Incl. Nos. 3, 4 & 5) BS-35371
...
3
Plug, Pipe BS-27642
...
4
Seal, Oil BS-35319
...
5
GEAR, WORM, BS-7027652YP
...
6
Baffle, Blower housing BS-35326
...
7
Screw, Hex washer hd. Durlock, 1/4-20 x 5/8 BS-650561
...
8
Crankshaft BS-35425
...
9
Piston, Pin & Ring Assy. (Std ) (Incl. Nos. 9A, 10 & 11) BS-34860
...
9
Piston, Pin & Ring Assy. (.010 oversize) (Incl. Nos. 9A, 10 & 11) BS-34861
...
9
Piston, Pin & Ring Assy. (.020 oversize) (Incl. Nos. 9A, 10 & 11) BS-34862
...
9A
Piston & Pin Assy. (Std.) (Incl. No. 10) BS-34863
...
9A
Piston & Pin Assy. (.010 oversize) (Incl. No. 10) BS-34864
...
9A
Piston & Pin Assy. (.020 oversize) (Incl. No. 10) BS-34865
...
10
ROD BRAKE ADJUSTMENT BS-7027888YP
...
11
Ring Set, Piston (Std.) BS-34866
...
11
Ring Set, Piston (.010 oversize) BS-34867
...
11
Ring Set, Piston (.020 oversize) BS-34868
...
17
Rod Assy., Connecting (Incl. Nos. 18, 19 & 19A) BS-35373A
...
18
Dipper, Oil BS-35374
...
19
Bolt, Connecting rod BS-650882
...
19A
Bolt, Connecting rod BS-650908
...
20
Lifter, Valve BS-34034
...
21
Camshaft (Mechanical Compression Release) BS-35375
...
22
Extension, Blower housing BS-33273A
...
23
Screw, Fil. hd. Sems, 10-24 x 1/2 BS-650128
...
24
Gasket, Cylinder cover BS-35262
...
25
Cover Assy, Cylinder (Incl. Nos. 26, 27 & 37) BS-35376
...
26
Bearing, Cylinder cover BS-35377
...
27
Seal, Oil BS-35319
...
33
Rod Assy., Governor (Incl. Nos. 34 & 35) BS-30699C
...
34
Yoke, Governor BS-30700
...
35
Screw, Fil. hd. Sems, 6-40 x 5/16 BS-650494
...
36
Ring, Retaining BS-29642
...
37
Shaft, Governor BS-31845
...
38
Spool, Governor BS-30588A
...
39
Washer, Flat BS-30590A
...
40
DECAL BAFFLE FRONT BS-7029193YP
...
41
Gear, Governor (Incl. No. 39) BS-35378
...
42
Bracket, Governor gear BS-33369
...
43
Screw, Hex washer hd. thread forming, 10-24 x 1/2 BS-650836
...
49
Clamp, Governor lever BS-29916
...
50
Screw, Hex washer hd., 10-32 x 3/4 BS-29826
...
51
(C) WIRE HARNESS PIS BS-7029216YP
...
52
Lever, Governor BS-33454
...
53
Washer, E.T. Lock BS-29918
...
54
Screw, Hex washer hd., 8-32 x 5/16 BS-650548
...
55
Locknut, Hex "Keps", 8-32 BS-30322
...
56
Screw, Hex washer hd. Powerlok, 1/4-20 x 1-11/16 BS-650832
...
57
Screw, Hex washer hd. Powerlok, 1/4-20 x 1-3/16 BS-650833
...
58
Dipstick, Oil (Incl. No. 59) BS-33463
...
59
Gasket, Dipstick BS-29673
...
66
Valve, Exhaust (Std.) (Incl, No. 70) BS-27878A
...
66
Valve, Exhaust (1/32" oversize) (Incl. No. 70) BS-27880A
...
67
Valve, Intake (Std.) (Incl. No. 70) BS-34035
...
67
Valve, Intake (1/32" oversize) (Incl. No. 70) BS-34036
...
68
Cap, Upper valve spring BS-27882
...
68A
Seal Assy, Intake valve BS-34689
...
69
Spring, Valve BS-27881
...
70
Cap, Lower valve spring BS-32581
...
76
Key, Flywheel BS-32589
...
78
Flywheel BS-611090
...
79
Washer, Lock BS-650880
...
80
Nut, Flywheel BS-650881
...
81
Stud, Solid State mounting BS-650872
...
82
Solid State Assy. BS-35135
...
83
Screw, Hex hd. Sems, 10-24 x 1 BS-650814
...
96
Gasket, Cylinder head BS-34923
...
97
Head, Cylinder BS-34030
...
98
Screw, Hex flange hd., 5/16-18 x 1-1/2 BS-6021A
...
99
Resistor Spark Plug (Champion RJ-17LM or equivalent) BS-34251
...
99A
Cover, Spark plug BS-27276
...
100
Washer, Flat BS-650691
...
101
Screw, Special hex hd. tapped, 5/16-18 x 1-3/4 BS-650727
...
102
Washer, Belleville BS-650690
...
103
Screw, Hex flange hd., 5/16-18 x 2 BS-650694A
...
104
Gasket, Breather BS-27896
...
105
Body, Breather BS-28423
...
106
Element, Breather BS-28424
...
107
SCRAPER BLADE, 17 BS-7035947YP
...
108
Tube, Breather BS-35350
...
109
Screw, Fil. hd. Sems, 10-24 x 1/2 BS-650128
...
110
Bolt, Governor spring adjusting BS-30845A
...
111
Nut, Lock, 10-32 BS-33450
...
112
Spring, Governor bolt BS-30886A
...
114
Nut & Lockwasher, 1/4-28 BS-29752
...
115
Gasket, Carburetor BS-33263
...
117
Pipe, Intake BS-34707
...
118
Screw, Fil. hd. Sems, 1/4-28 x 1 BS-30088A
...
119
Screw, Fil. hd. Sems, 5/16-18 x 1-1/8 BS-650378
...
120
Tube, Grass BS-7027915YP
...
130
Housing, Blower BS-33375C
...
140
Link, Governor-to-throttle BS-33878
...
143
Screw, Hex hd. spinlock thread forming, 5/16-18 x 3/4 BS-650788
...
144
Screw, Phil. hex hd. Sems, 5/16-24 x 21/32 BS-29747B
...
145
Cover, Starter hole BS-33013
...
146
Screw, Pan hd. taptite, 8-32 x 3/8 BS-650760
...
147
Washer, Internal lock BS-650890
...
148
Main Harness BS-5030747
...
155
Bracket, Air cleaner BS-33267
...
156
GRASS BAG, PLATINUM BS-7045199YP
...
157
Bracket, Air cleaner BS-33266
...
158
Gasket, Air cleaner BS-27272
...
159
Element, Air cleaner BS-33268
...
160
Cover, Air cleaner BS-33269A
...
161
Nut, Wing, 1/4-20 BS-650513
...
168
Cover, Cylinder head BS-33272A
...
169
Screw, Hex washer hd. taptite, 1/4-20 x 5/8 BS-650802
...
170
PHMS, #10-24 X 1/2 LG BS-34154GS
...
171
Screw, Hex hd, 5/16-18 x 5/8 BS-650713
...
172
Bracket, Fuel tank BS-34155
...
173
Screw, Hex washer hd. Durlok, 1/4-20 x 5/8 BS-650561
...
174
Screw, Hex washer hd. thread cutting, 1/4-15 x 7/8 BS-650665
...
175
Tank, Fuel (Incl. Nos. 176 & 178) BS-34156A
...
176
Cap, Fuel tank BS-35355
...
177
Gas Tank Mount (Manual) BS-5030705
...
178
Clamp, Fuel line BS-26460
...
187
Muffler BS-33280A
...
188
Plate, Lock BS-31588
...
189
Screw, Hex hd, 5/16-18 x 3-3/16 BS-650729
...
193
Plug, Starter BS-35392
...
194
Hub, Starter BS-35287
...
195
Screen, Starter BS-35446
...
196
Nut & Lockwasher, 1/4-28 BS-29752
...
210
Decal, Name BS-34686
...
210A
Decal, Instruction BS-34346
...
212
Carburetor (Incl. No. 115) BS-632242
...
213
WASHER BS-590633
...
215
Gasket Set (Incl. items 24, 59, 96, 104, 115, 120 & 158.) BS-33279F

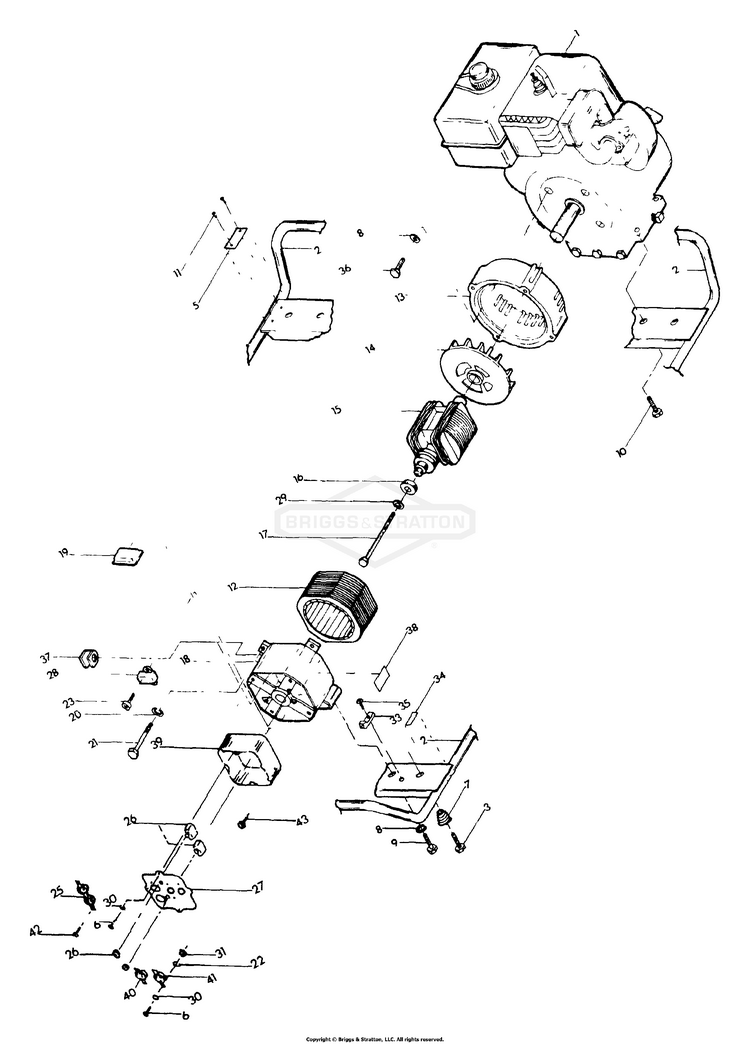

Generator (10/95)

...
...
1
ENGINE - Craftsman 10 Horsepower BS-74739
...
2
CRADLE BS-72097
...
3
SCREW (Taptite) - 5/16"-18 x 1/2" BS-24910
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
SCREW (Taptite) - 3/8"-16 x 3/4" BS-59637
...
11
RIVET - Stainless Steel BS-36261
...
12
(C) PUMP, HYDRO-GEAR BS-7075710YP
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
FAN, Cooling BS-66389
...
15
ROTOR ASSY BS-73063
...
16
BEARING BS-65791GS
...
17
BOLT, Rotor - 5/16"-24 x 8" BS-46958
...
18
CARRIER, Rear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator - M6-1.00 x 140mm BS-66449F
...
22
LOCKWASHER - No. 8 BS-22264
...
23
HHCS, M5-0.8 X 16 BS-49815GS
...
25
OUTLET, 20A,120V BS-68759GS
...
26
BREAKER, Circuit - 20 amp BS-66819
...
27
PANEL, Receptacle BS-74702
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
FLATWASHER (Special) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
33
LUG, Grounding BS-25433
...
34
DECAL, GRD LUG BS-67210AGS
...
35
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
36
SCREW, Hex - 5/16"-24 x 3/4" BS-22336
...
37
GROMMET, RUBBER BS-67022GS
...
39
BRKT, TRACTION CABLE BS-7072280YP
...
40
OUTLET-120V TL30A BS-705932
...
41
OUTLET, 120/240V Locking, 20A BS-68867GS
...
42
SCREW, Pan Head - No. 10-32 x 1/4" BS-33528
...
43
SCREW, Pan Head - M5-0.80 BS-73540
...
MANUAL, Owner's BS-74700
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

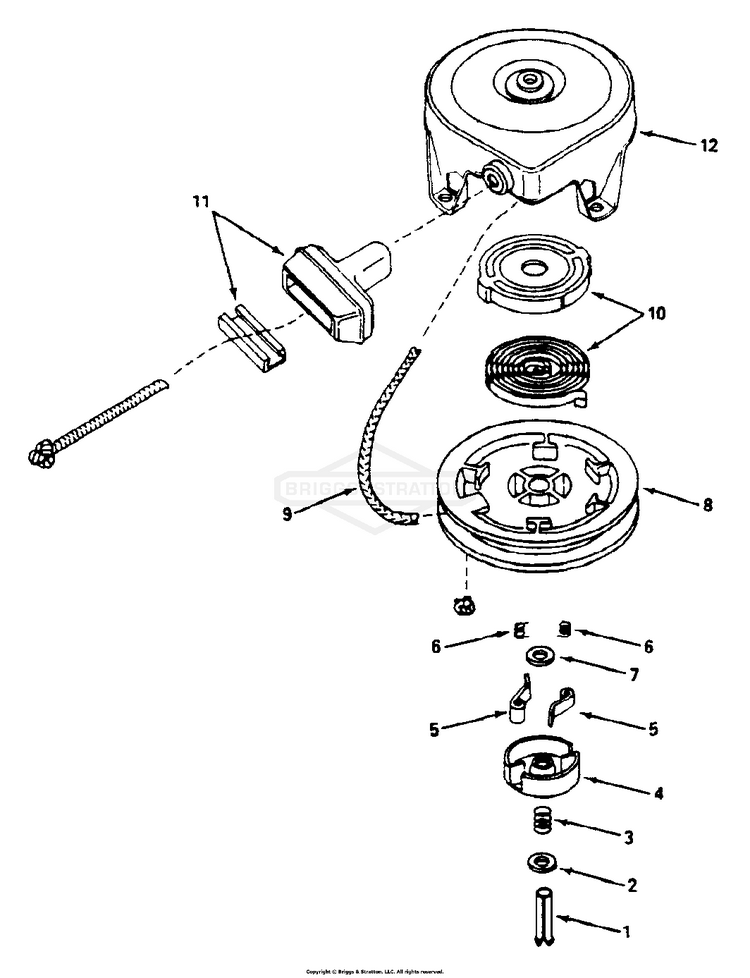

Rewind Starter No. 590633 (10/95)

...
...
WASHER BS-590633
...
1
Pin, Spring (Incl. No. 7) BS-590599A
...
2
Washer BS-590600
...
3
Spring, Brake BS-590598
...
4
Retainer BS-590627
...
5
NUT BS-590641
...
6
Spring, Dog BS-590617
...
7
FILTER, A/C Cartridge BS-590601
...
8
NUT BS-590632
...
9
Rope, Starter BS-590451A
...
10
Spring & Keeper Assy. BS-590629
...
11
Handle Assy., Starter BS-590387
...
12
Housing Assy., Starter BS-590634

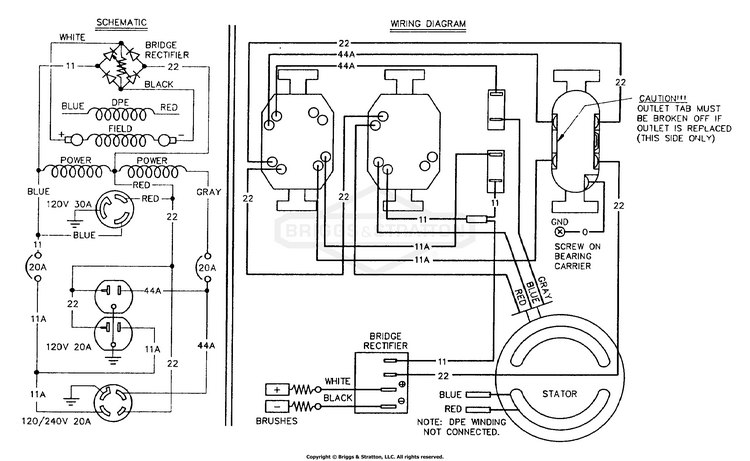

Wiring Diagram/Electrical Schematic (10/95)

...

No Parts Available for this Schematic

Schematic Image Zoomed
