Briggs & Stratton 8966-1 - 580.328341, 3,600 Watt Craftsman

Model: 8966-1 - 580.328341, 3,600 Watt

Save Part Not Listed?
product name

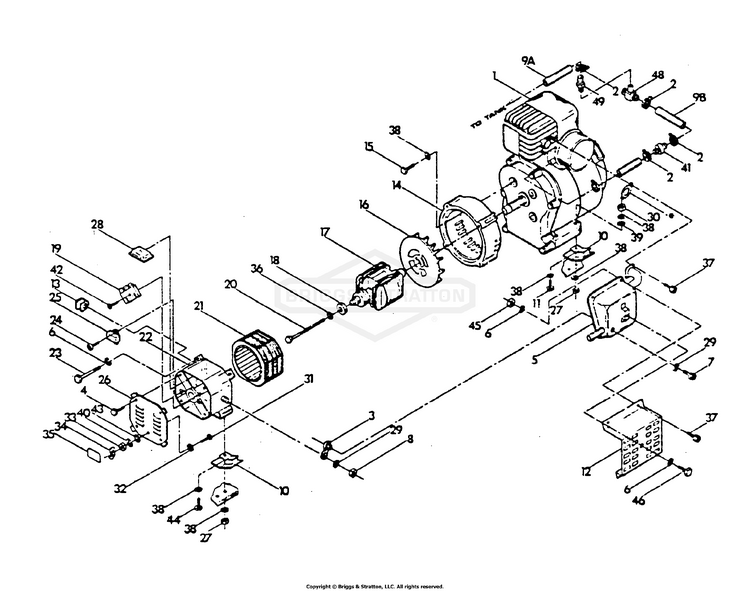

3600 Watt A-C Generator (10/95)

...
...
1
(C) DRAWBAR BS-7072269YP
...
2
CLAMP, Fuel Line BS-48031C
...
3
(C) FENDER UV REAR BS-7073021YP
...
4
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
5
MUFFLER, Spark Arrestor BS-72084
...
6
CAP BS-5022097SM
...
7
CAPSCREW, Socket Head 3/8" - 16 x 1/2" BS-73032
...
8
CAPSCREW - M10-1.50 x 16mm BS-51755
...
9A
HOSE, Fuel - 20" long BS-47662F
...
9B
HOSE, Fuel - 17" long BS-47662AN
...
9C
HOSE, Fuel - 3" long BS-47662B
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
SCREW - 5/16" - 18 x 1-3/4" BS-71752
...
12
HTSHLD, MFFLR BS-72292GS
...
13
GROMMET, RUBBER BS-67022GS
...
14
ADPTR, HSNG, 8 HP BS-66365DGS
...
15
CAPSCREW- 5/16" 18 x 3/4" BS-22336
...
16
FAN, Cooling BS-66389
...
17
ROTOR BS-70418
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
BOLT, Rotor - 5/16" - 24 x 8.62" BS-46958
...
21
STATOR BS-72062
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator BS-66449F
...
24
HHCS, M5-0.8 X 16 BS-49815GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
27
SKID PLATE BS-5045771B
...
28
REGULATOR, VOLT BS-67107GS
...
29
WASHER, Lock - M10 BS-46526
...
30
DECAL, ProCut Z Text BS-5022241
...
31
HHCS, M5-0.8 X 20 BS-52619GS
...
32
WASHER, Serrated- M5 BS-67444
...
33
NUT, M5 x 0.8 BS-51716GS
...
34
NUT, Wing- M5-0.80 BS-67435
...
35
DECAL, GRD BS-67210GS
...
36
WASHER, Flat - M8 (Special) BS-67451
...
37
CAPSCREW, Socket Head - 1/4" - 20 x 1/2" BS-39974
...
38
WASHER, Lock BS-22129GS
...
39
(S) WELD BRACE MOUNT BS-7049810YP
...
40
WASHER, M5 Lock BS-49226GS
...
41
FILTER, FUEL, 150 MICRN BS-68740GS
...
42
SCREW BS-66849AGS
...
43
WASHER, Rivet, 3/16 BS-1910531SM
...
44
SCREW BS-70644GS
...
45
NUT, Hex - 1/4" - 20 BS-22127
...
46
SCREW BS-43146GS
...
48
VALVE, Fuel Shutoff BS-71384
...
49
FITTING, Barbed - 1/4" BS-28414
...
MANUAL, Owners Not Shown BS-73066

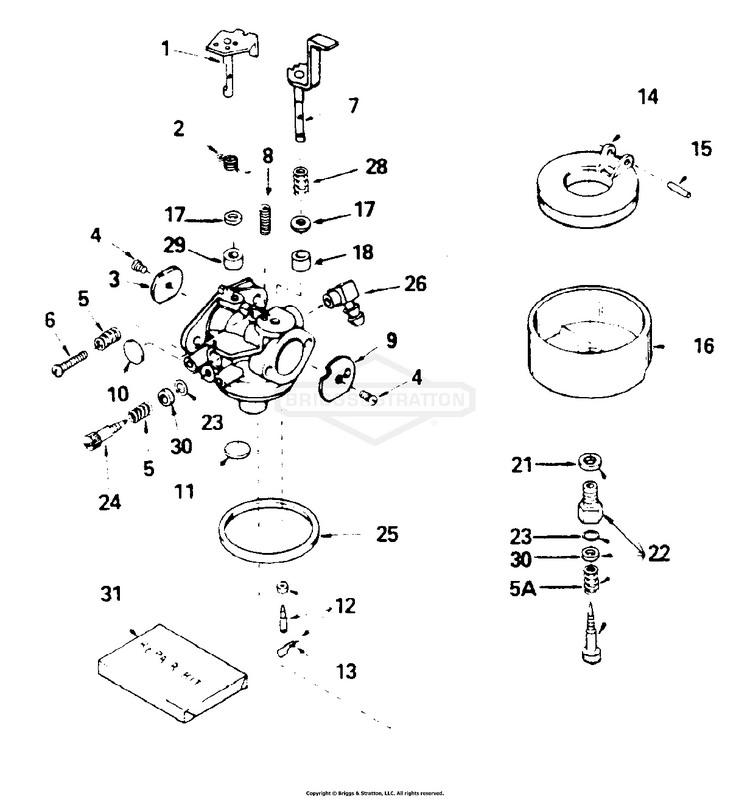

Carburetor (10/95)

...
...
Carburetor BS-632499
...
1
Shaft & Lever Assy., Throttle BS-631776
...
2
Spring, Throttle return BS-631970
...
3
Shutter, Throttle BS-631778
...
4
Screw, Throttle & Choke shutter BS-650506
...
5
Spring, Idle regulating screw BS-630766
...
5A
Spring, Main adjustment screw BS-630738
...
6
Screw, Idle regulating BS-650417
...
7
Shaft & Lever Assy., Choke BS-631812
...
8
Spring, Choke positioning BS-630735
...
9
Shutter, Choke BS-631753
...
10
Plug, Welch BS-630748
...
11
Plug, Welch BS-631027
...
12
Inlet Needle, Seat & Clip Assy. (Incl. No. 13) BS-631021
...
13
Clip, Inlet needle BS-631022
...
14
Float, Carburetor BS-632019
...
15
Shaft, Float BS-631024
...
16
Bowl, Float BS-631867
...
17
Washer, Flat BS-631184
...
18
Washer, Felt BS-631183
...
21
(C) FITTING 90 DEG W BS-7027110YP
...
22
Adjustment Screw Assy., Main (Incl. Nos. 5A, 21, 23 & 30) BS-632239
...
23
"O" Ring, Adjustment screw BS-630740
...
24
Screw, Idle adjustment BS-632281
...
25
Gasket, Bowl-to-body BS-631028
...
26
Fitting, Fuel BS-631807
...
28
Spring, Choke return BS-632043
...
29
Seal, Dust BS-631971
...
30
Washer, Flat BS-630739
...
31
Repair Kit (Incl. items 10, 11, 12, 15, 22, 23, 24 & 25 BS-632347

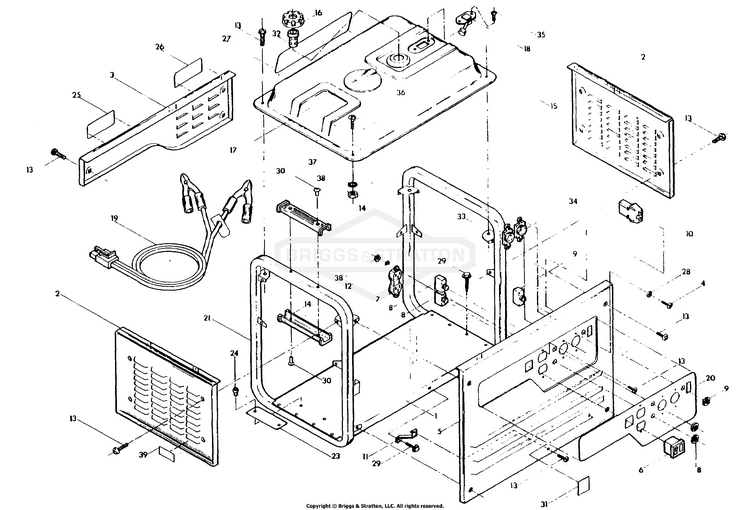

Cradle (10/95)

...
...
1
(C) DECAL CONSOLE BS-7073017YP
...
2
ROD END FEM 1/2- BS-7073012YP
...
3
PANEL, Exhaust Muffler BS-73016
...
4
SCREW - No. 6-32 x 3/8" BS-36901
...
5
TIRE MULTI TRAC BS-7073005YP
...
6
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
7
OUTLET, 20A,120V BS-68759GS
...
8
BREAKER, Circuit - 20 amp BS-66819
...
9
BREAKER, Circuit - 10 amp d-c BS-66820
...
10
RECEPTACLE - 12 volts d-c BS-6720730
...
11
BRACE, Receptacle Panel BS-73058
...
12
VALVE, FUEL SHUT OFF BS-84010414
...
13
SCREW - No. 10-32 x 1/2" BS-23964
...
14
COVER, Handle BS-66450
...
15
TANK, Fuel - 4.5 U.S. Gallons BS-69662
...
16
CAP, Fuel Tank Filler BS-69658
...
17
CVR, ACC, SPARKPLUG BS-64680BGS
...
18
INDICATOR, Fuel Level BS-66391B
...
19
CABLE, BTTRY CHARGE BS-71394GS
...
20
DECAL - Receptacle Panel BS-73014
...
21
CRADLE, Engine End BS-72272
...
22
CRADLE, Generator End BS-72099
...
23
PLATE, Data BS-60213R
...
24
RIVET, Data Plate BS-25832
...
25
DECAL - Choke BS-66823
...
26
DECAL - Caution! - Hot! BS-66824
...
27
DECAL - Starting Data BS-70365D
...
28
PULLEY, PUMP DRIVE BS-5022155SM
...
29
SCREW - 1/4"-20 x 3/8" BS-58441
...
30
RIVET - 4mm BS-66831
...
31
DECAL - U.S.D.A. BS-29084
...
32
FILTER, Fuel BS-70630
...
33
OUTLET-120V TL30A BS-705932
...
PLUG, Connector BS-37807
...
34
OUTLET, 120/240V Locking, 20A BS-68867GS
...
PLUG-120/240V TL20A BS-100522GS
...
35
SCREW - M5-0.80 x 12mm BS-52749
...
36
ROD, Governor Control BS-593696
...
37
WASHER, #10 Ext. Shakeproof BS-23762GS
...
38
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
39
DECAL - Fuel Shutoff BS-73054
...
MANUAL, Owners BS-73066

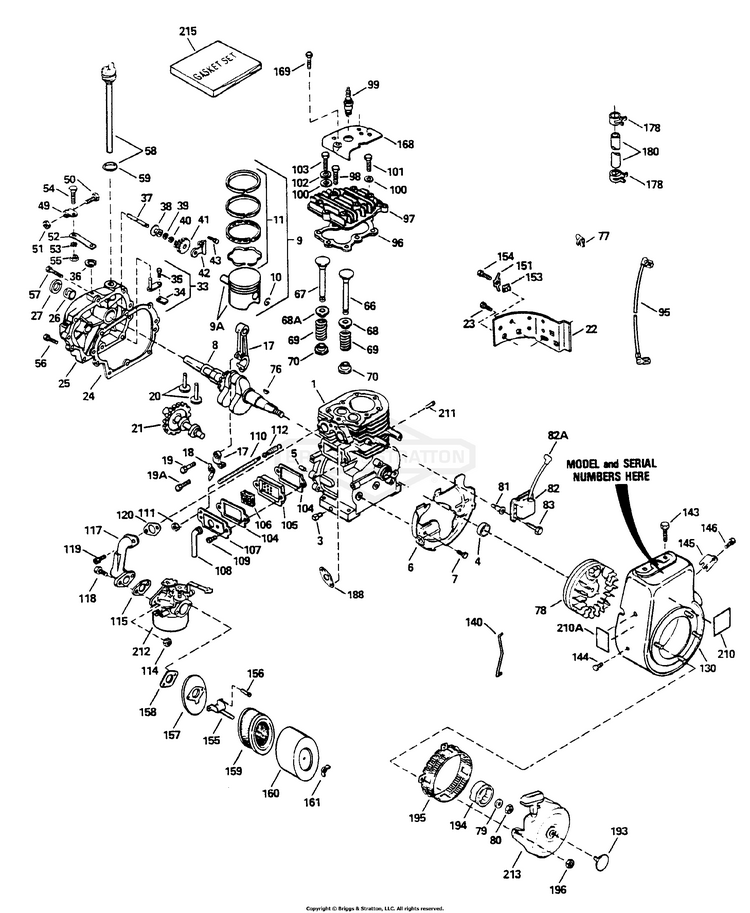

Craftsman 4-Cycle Engine (10/95)

...
...
1
Cylinder (Incl. Nos. 3, 4 & 5) BS-35385
...
3
Plug, Pipe BS-27642
...
4
Seal, Oil BS-35319
...
5
GEAR, WORM, BS-7027652YP
...
6
Baffle, Blower housing BS-35326
...
7
Screw, Hex washer hd. Durlok, 1/4-20 x 5/8 BS-650561
...
8
Crankshaft BS-35425
...
9
Piston, Pin & Ring Assy. (Incl. Nos. 9A, 10 BS-34552
...
9
Piston, Pin & Ring Assy. (.010 oversize) (Incl. Nos. 9A, 10 & 11) BS-34553
...
9
Piston, Pin & Ring Assy. (.020 oversize) (Incl. Nos. 9A, 10 & 11) BS-34554
...
9A
Piston & Pin Assy. (Std.) (Incl. No. 10) BS-34329A
...
9A
Piston & Pin Assy. (.010 oversize) (Incl. No. 10) BS-34330A
...
9A
Piston & Pin Assy. (.020 oversize) (Incl. No. 10) BS-34331A
...
10
ROD BRAKE ADJUSTMENT BS-7027888YP
...
11
Ring Set, Piston (Std.) BS-34332
...
11
Ring Set, Piston (.010 oversize) BS-34333
...
11
Ring Set, Piston (.020 oversize) BS-34334
...
17
Rod Assy., Connecting (Incl. No. 18) BS-35373A
...
18
Dipper, Oil BS-35374
...
19
Bolt, Connecting rod BS-650908
...
19A
Bolt, Connecting rod BS-650882
...
20
Lifter, Valve BS-34034
...
21
Camshaft (Mechanical Compression Release) BS-35375
...
22
Extension, Blower housing BS-33273A
...
23
Screw, Fit. hd. Sems, 10-24 x 1/2 BS-650128
...
24
Gasket, Cylinder cover BS-35262
...
25
Cover Assy., Cylinder (Incl. Nos. 27, 37 & 60) BS-35376
...
26
Bearing, Cylinder cover BS-35377
...
27
Seal, Oil BS-35319
...
33
Rod Assy., Governor (Incl. Nos. 34 & 35) BS-30699C
...
34
Yoke, Governor BS-30700
...
35
Screw, Fit. hd. Sems, 6-40 x 5/16 BS-650494
...
36
Ring, Retaining BS-29642
...
37
Shaft, Governor BS-31845
...
38
Spool, Governor BS-30588A
...
39
Washer, Flat BS-30590A
...
40
DECAL BAFFLE FRONT BS-7029193YP
...
41
Gear, Governor (Incl. No. 39) BS-35378
...
42
Bracket, Governor gear BS-33369
...
43
Screw, Hex washer hd. thread forming, 10-24 x 1/2 BS-650836
...
49
Clamp, Governor lever BS-29916
...
50
Screw, Hex washer hd., 10-32 x 3/4 BS-29826
...
51
(C) WIRE HARNESS PIS BS-7029216YP
...
52
Lever, Governor BS-33454
...
53
Washer, E.T. Lock BS-29918
...
54
Screw, Hex washer hd., 8-32 x 5/16 BS-650548
...
55
Locknut, Hex "Keps", 8-32 BS-30322
...
56
Screw, Hex washer hd. Powerlok, 1/4-20 x 1-11/16 BS-650832
...
57
Screw, Hex washer hd. Powerlok, 1/4-20 x 1-3/16 BS-650833
...
58
Dipstick, Oil BS-33463
...
59
Gasket, Dipstick BS-29673
...
66
Valve, Exhaust (Std.) (Incl. No. 70) BS-27878A
...
66
Valve, Exhaust (1/32" oversize) (Incl. No. 70) BS-27880A
...
67
Valve, Intake (Std.) (Incl. No. 70) BS-34035
...
67
Valve, Intake (1/32" oversize) (Incl. No. 70) BS-34036
...
68
Cap, Upper valve spring BS-27882
...
68A
Seat Assy., Intake valve BS-34689
...
69
Spring, Valve BS-27881
...
70
Cap, Lower valve spring BS-32581
...
76
Key, Flywheel BS-32589
...
77
Clip, Wire BS-34246
...
78
Flywheel BS-611090
...
79
Washer, Lock BS-650880
...
80
Nut, Flywheel BS-650881
...
81
Stud, Solid state mounting BS-650872
...
82
Solid State Assy. BS-35135
...
82A
Cover, Spark plug BS-27276
...
83
Screw, Hex hd. Sems, 10-24 x 1 BS-650814
...
95
Wire, Ground BS-35183
...
96
Gasket, Cylinder head BS-34041
...
97
Head, Cylinder BS-34030
...
98
Screw, Hex flange hd., 5/16-18 x 1-1/2 BS-6021A
...
99
Spark plug (Champion RJ-17LM or equivalent) BS-34251
...
100
Washer, Flat BS-650691
...
101
Screw, Hex washer hd. taptite, 1/4-20 x 5/8 BS-650802
...
102
Washer, Belleville BS-650690
...
103
Screw, Hex flange hd., 5/16-18 x 2 BS-650694A
...
104
Gasket, Breather BS-27896
...
105
Body, Breather BS-28423
...
106
Element, Breather BS-28424
...
107
SCRAPER BLADE, 17 BS-7035947YP
...
108
Tube, Breather BS-35350
...
109
Screw, Fil. hd. Sems, 10-24 x 1/2 BS-650128
...
110
Bolt, Governor spring adjusting BS-30845A
...
111
Nut, Lock, 10-32 BS-33450
...
112
Spring, Governor bolt BS-30886A
...
114
Nut & Lockwasher, 1/4-28 BS-29752
...
115
Gasket, Carburetor BS-33263
...
117
Pipe, Intake BS-34707
...
118
Screw, Fit. hd. Sems, 1/4-28 x 1 BS-30088A
...
119
Screw, Fit. hd. Sems, 5/16-18 x 1-1/8 BS-650378
...
120
Tube, Grass BS-7027915YP
...
130
Housing, Blower BS-33375C
...
140
Link, Governor-to-throttle BS-33878
...
143
Screw, Hex hd. spinlock thread forming, 5/16-18 x 3/4 BS-650788
...
144
Screw, Phil. hex hd. Sems, 5/16-24 x 21/32 BS-29747B
...
145
Cover, Starter hole BS-33013
...
146
Screw, Pan hd. taptite, 8-32 x 3/8 BS-650760
...
151
Terminal, Ground BS-33356
...
153
Grommet, Plastic BS-28545
...
154
Screw, Pan hd. taptite, 8-32 x 3/8 BS-650760
...
155
Bracket, Air cleaner BS-33267
...
156
GRASS BAG, PLATINUM BS-7045199YP
...
157
Bracket, Air cleaner BS-33266
...
158
Gasket, Air cleaner BS-27272
...
159
Element, Air cleaner BS-33268
...
160
Cover, Air cleaner BS-33269A
...
161
Nut, Wing, 1/4-20 BS-650513
...
168
Cover, Cylinder head BS-33272A
...
169
Screw, Hex washer hd. taptite, 1/4-20 x 5/8 BS-650802
...
178
Clamp, Fuel line BS-26460
...
180
Line, Fuel BS-29774
...
188
Gasket BS-27930
...
193
Plug, Starter BS-35392
...
194
Hub, Starter BS-35287
...
195
Screen, Starter BS-35446
...
196
Nut & Lockwasher, 1/4-28 BS-29752
...
210
Decal, Instruction BS-34346
...
211
Screw, Hex washer hd. Sems, 1/4-20 x 1/2 BS-30063
...
212
Carburetor (Incl. No. 115) BS-632499
...
213
WASHER BS-590633
...
215
Gasket Set (Incl. items 24, 59, 104, 115, 120 & 158) BS-33279F

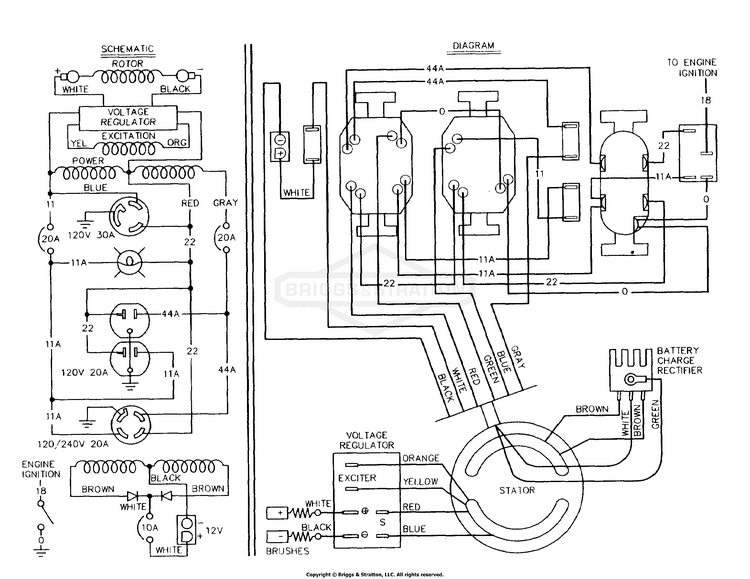

Electrical Schematic & Wiring Diagram (10/95)

...

No Parts Available for this Schematic

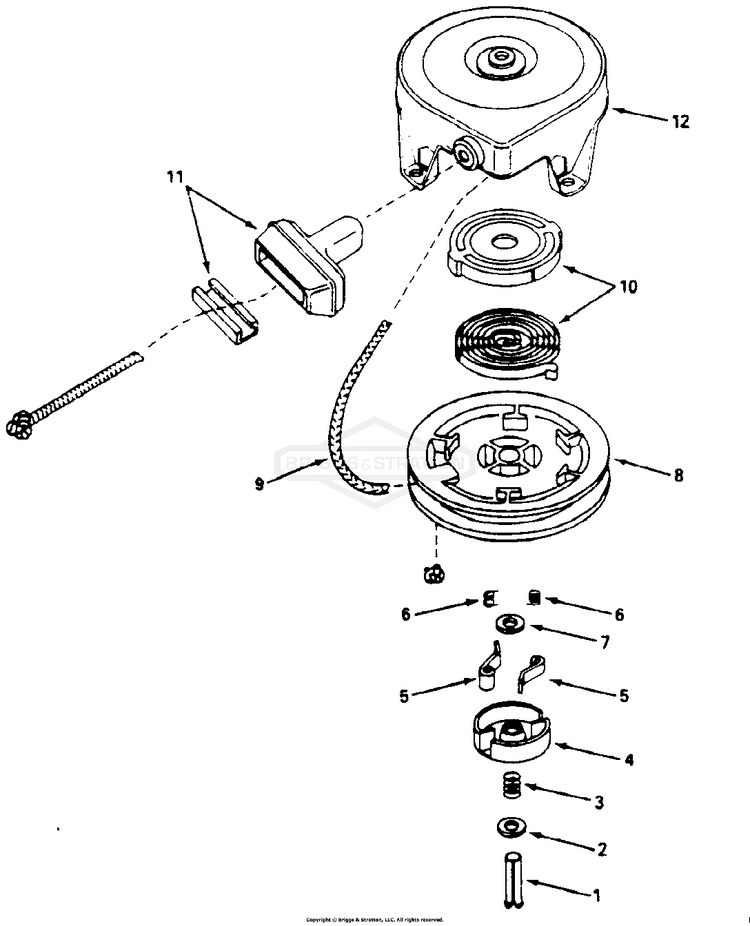

Rewind Starter (10/95)

...
...
WASHER BS-590633
...
1
Pin, Spring (Incl. No. 7) BS-590599A
...
2
Washer BS-590600
...
3
Spring, Brake BS-590598
...
4
Retainer BS-590627
...
5
NUT BS-590641
...
6
Spring, Dog BS-590617
...
7
FILTER, A/C Cartridge BS-590601
...
8
NUT BS-590632
...
9
Rope, Starter BS-590451A
...
10
Spring & Keeper Assy. BS-590629
...
11
Handle Assy., Starter BS-590387
...
12
Housing Assy., Starter BS-590634
