Briggs & Stratton 8964-1 - 580.328321, 1,400 Watt Craftsman

Model: 8964-1 - 580.328321, 1,400 Watt

Save Part Not Listed?
product name

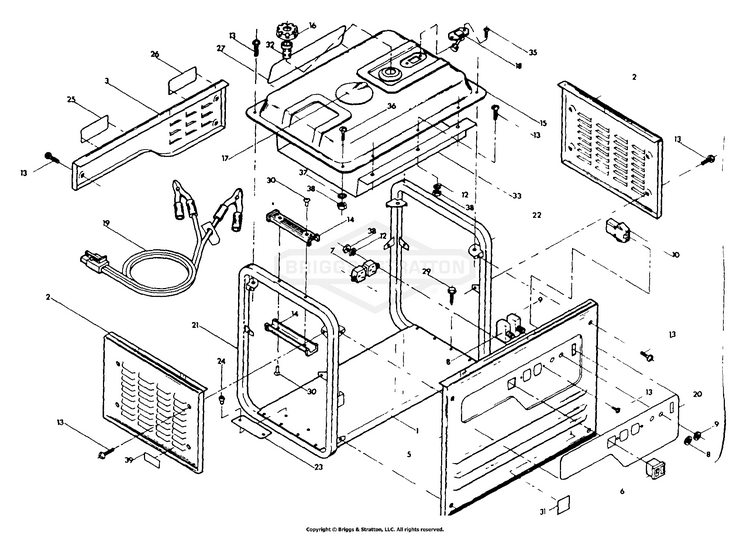

Cradle

...
...
1
SWIVEL BRAKE BS-7073015YP
...
2
PANEL, End BS-73010
...
3
PANEL, Muffler BS-23008
...
5
(C) DASH CVT UTILIT BS-7073000YP
...
6
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
7
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
8
BREAKER, Circuit - 12 a-c amps BS-66861
...
9
BREAKER, Circuit - 10 d-c amps BS-66820
...
10
RECEPTACLE - 12 volts d-c BS-6720730
...
12
VALVE, FUEL SHUT OFF BS-84010414
...
13
SCREW - No. 10-32 x 1/2" BS-23964
...
14
COVER, Handle BS-66450
...
15
TANK, Fuel - 2.34 U.S. Gallons BS-69661
...
16
CAP, Fuel Tank Filler BS-69658
...
17
COVER, Spark Plug Access BS-646808
...
18
INDICATOR, Fuel Level BS-86391B
...
19
CABLE, BTTRY CHARGE BS-71394GS
...
20
DECAL - Receptade Panel BS-73013A
...
21
CRADLE, Engine End BS-72273
...
22
CRADLE, Generator End BS-72274
...
23
PLATE, Data BS-6Q213P
...
24
RIVET, Data Plate BS-25832
...
25
DECAL, CHOKE (RIGHT) BS-66382GS
...
26
DECAL - Cautionl-Hotl BS-66824
...
27
DECAL - Starting Data BS-703658
...
29
SCREW - 1/4"-20 x 3/8" BS-58441
...
30
RIVET - 4mm (Black Anodized) BS-66831
...
31
DECAL - U.S.D.A. BS-29084
...
32
FILTER, Fuel BS-70630
...
33
ROD BRAKE REAR BS-7072094YP
...
35
SCREW - M5-0.80 x 12mm BS-52749
...
36
ROD, Governor Control BS-593696
...
37
MUFFLER 21HP-25HP KA BS-5100975YP
...
38
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
39
DECAL, Fuel Shutoff BS-73054
...
MANUAL-OPERATOR BS-71388GS

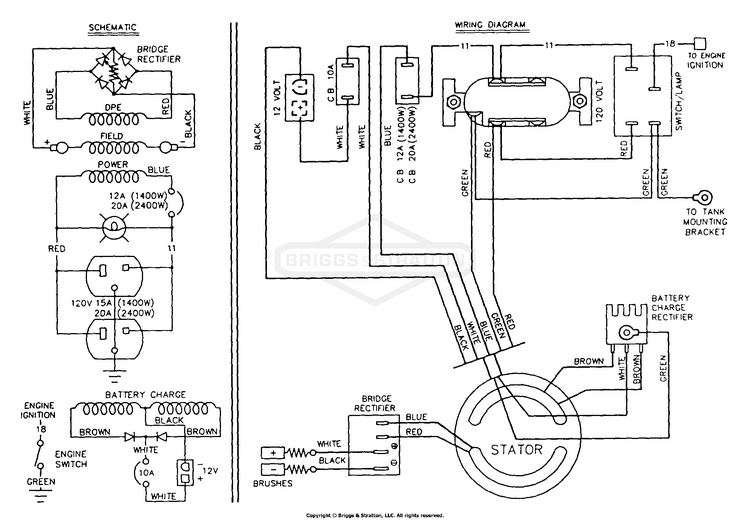

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

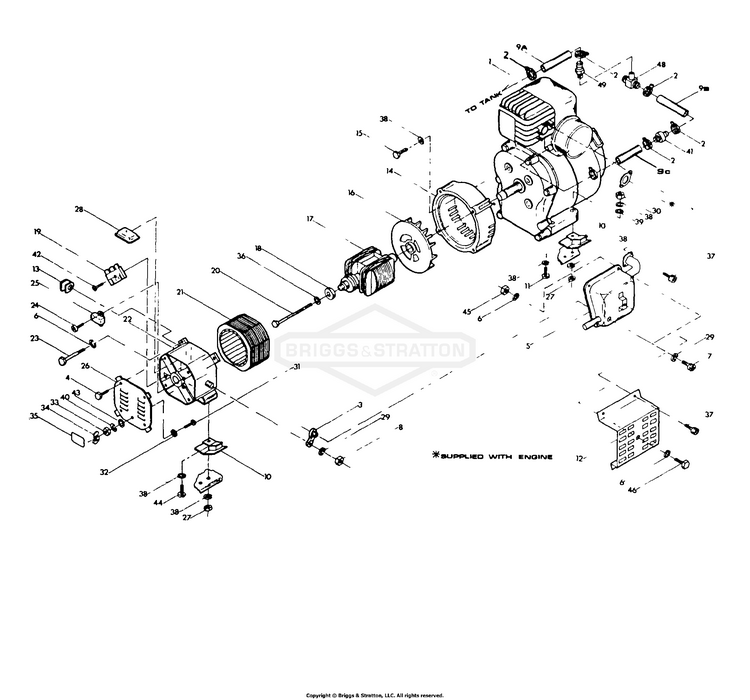

Generator

...
...
1
(C) HITCH BS-7072268YP
...
2
CLAMP, Fuel Line BS-48031C
...
3
BRACKET, Muffler Support BS-73019
...
4
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
5
MUFFLER, Spark Arrest BS-72082
...
6
CAP BS-5022097SM
...
7
CAPSCREW, Socket Head-3/8"-16 x 1/2" BS-73032
...
8
CAPSCREW- M10-1.50 x 16mm BS-51755
...
9A
HOSE, Fuel - 17" long BS-47662AN
...
9B
HOSE, Fuel - 17" long BS-47662AN
...
9C
HOSE, Fuel - 3" long BS-47662B
...
10
MOUNT, Vibration BS-70842
...
11
SCREW, Pan Head - 5/16"-18 x 1-3/4" BS-71752
...
12
HTSHLD, MFFLR BS-72292GS
...
13
GROMMET, RUBBER BS-67022GS
...
14
HOUSING, Engine Adapter BS-68365
...
15
CAPSCREW - 5/16"-24 x 3/4" BS-22336
...
16
FAN, Cooling BS-66389
...
17
ROTOR ASSEMBLY BS-72063
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
BOLT, Rotor - 5/16"-24 x 5-3/4" BS-73024
...
21
STATOR ASSEMBLY BS-72060
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator BS-88449A
...
24
HHCS, M5-0.8 X 16 BS-49815GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
27
SKID PLATE BS-5045771B
...
28
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
29
WASHER, Lock- M10 BS-46526
...
30
DECAL, ProCut Z Text BS-5022241
...
31
HHCS, M5-0.8 X 20 BS-52619GS
...
32
WASHER - M5 BS-67444
...
33
NUT, M5 x 0.8 BS-51716GS
...
34
NUT, Wing - M5-0.80 BS-67435
...
35
DECAL, GRD BS-67210GS
...
36
WASHER, Flat - M8 BS-67451
...
37
CAPSCREW, Socket Head-1/4"-20 x 1/2" BS-39974
...
38
WASHER, Lock BS-22129GS
...
39
(S) WELD BRACE MOUNT BS-7049810YP
...
40
WASHER, M5 Lock BS-49226GS
...
41
FILTER, FUEL, 150 MICRN BS-68740GS
...
42
SCREW BS-66849AGS
...
43
WASHER, Rivet, 3/16 BS-1910531SM
...
44
SCREW, Pan Head - M8-1.25 x 20mm BS-70844
...
45
NUT, Hex - 1/4"-20 BS-22127
...
46
SCREW BS-43146GS
...
48
VALVE, Fuel Shutoff BS-71384
...
49
FITTING, Barbed - 1/4" BS-28414
...
MANUAL-OPERATOR BS-71388GS
