Briggs & Stratton 8892-1 - 580.328351, 5,000 Watt Craftsman

Model: 8892-1 - 580.328351, 5,000 Watt

Save Part Not Listed?
product name

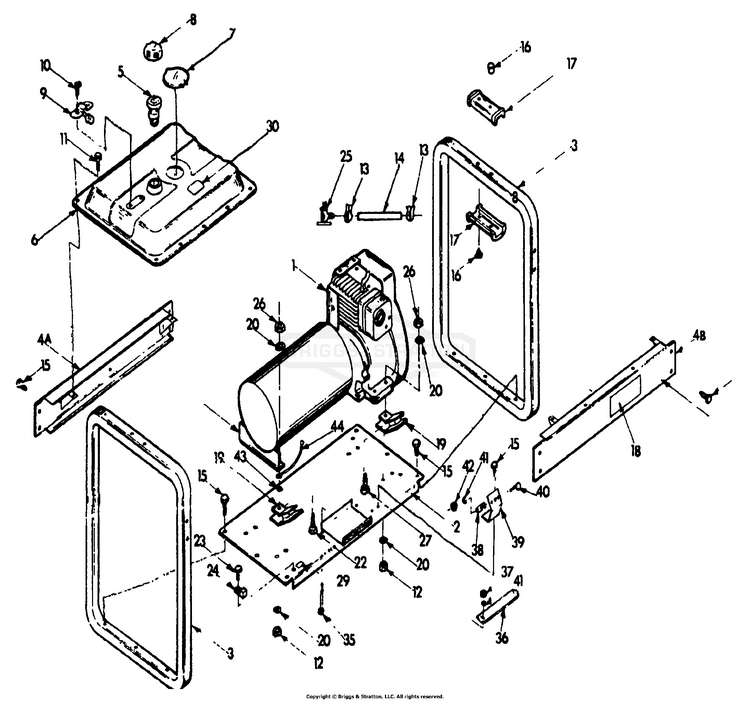

AC Generator No. 71743

...
...
1
ENGINE ASSEMBLY BS-68861
...
2
BASE, MOUNTING Includes Battery Tray BS-70643C
...
3
LOOP, CRADLE END BS-70603
...
4A
SUPPORT, FUEL TANK BS-70620
...
4B
SUPPORT, FUEL TANK BS-70620A
...
5
STRAINER, FUEL FILL BS-70630
...
6
TANK, FUEL-4.5 U.S. GALLONS BS-69662
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, FUEL TANK BS-69658
...
9
GAUGE, FUEL LEVEL BS-66391B
...
10
SCREW, M5-0.80 x 12MM BS-52749
...
11
SCREW, NO. 10-32 x 3/8" BS-36933
...
12
SKID PLATE BS-5045771B
...
13
CLAMP, HOSE-1/4" BS-47031C
...
14
HOSE, FUEL-1/4" ID x 12" LONG BS-47662AE
...
15
SCREW, 1/4"-20 x 1/2" BS-58442
...
16
RIVET - 4MM BS-66831
...
17
HANDLE BS-66450
...
18
DECAL - "CRAFTSMAN" BS-69641
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
WASHER, Lock BS-22129GS
...
22
SCREW, PAN HEAD-5/16"-18 x 3/4" BS-64183
...
23
SCREW - NO. 10-32 x 3/8" BS-24489
...
24
LUG, GROUNDING BS-25433
...
25
VLV, SHUT OFF BS-27734GS
...
26
NUT, 5/16-18 HEX BS-5025032SM
...
27
PPHMS, 5/16-18 X 1.50 BS-70653GS
...
29
DECAL, GRD LUG BS-67210AGS
...
30
DECAL - "FUEL CAUTION" BS-68876
...
35
HHCS, 1/4-20 X 7 BS-45000GS
...
36
CONTROL, Hydro, Right BS-5044951B
...
37
NUT, HEX LOCK-1/4"-20 BS-27529
...
38
CONTACTOR, START, PUSH BS-53030GS
...
39
BRACKET, STARTER CONTACTOR BS-65121
...
40
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
41
CAP BS-5022097SM
...
42
NUT, HEX-1/4"-20 BS-22127
...
43
WSHR, 5/16, INTRNL TOOTH BS-26204GS
...
44
GROUND WIRE BS-68886

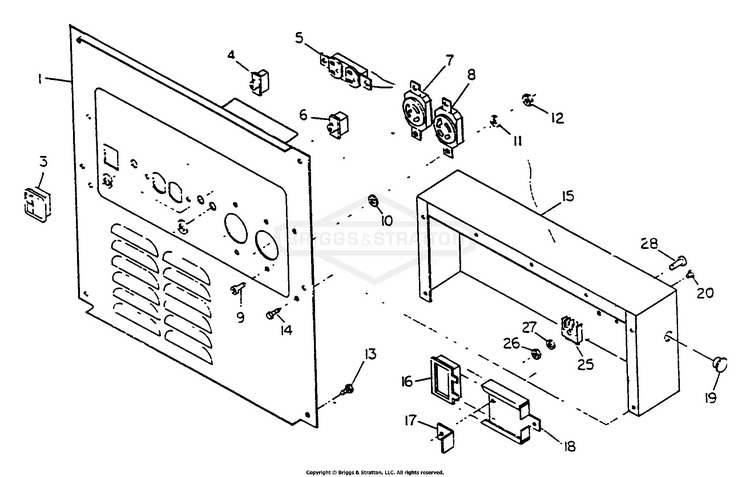

Control Panel Repair Parts No. 68872A

...
...
1
PANEL ASSEMBLY BS-68866E
...
3
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
4
BREAKER, Circuit - 20 amp BS-66819
...
5
OUTLET, 20A,120V BS-68759GS
...
6
BREAKER, Circuit - 30 amp BS-60824
...
7
OUTLET-120V TL30A BS-705932
...
8
OUTLET, 120/240V Locking, 20A BS-68867GS
...
9
SCREW BS-797483
...
10
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
11
LOCKWASHER - No. 8 BS-22264
...
12
NUT, #8-32 BS-22471GS
...
13
SCREW - 1/4"-20 x 1/2" BS-69254
...
14
CRIMPTITE, #8-18X1/4L BS-63036GS
...
15
PANEL, Back BS-68746
...
16
REGULATOR, VOLT BS-67107GS
...
17
BRACKET BS-68796
...
18
BRACKET, Regulator BS-68795
...
19
PLUG BUTTON - 1/2" BS-65511
...
20
RIVET, Pop - 1/8" BS-36261
...
25
RECTIFIER, BATTERY CHARGE BS-65795GS
...
26
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
27
VALVE, FUEL SHUT OFF BS-84010414
...
28
SCREW - No. 10-32 x 3/4" BS-36935
...
COVER, Connector Plug Contact Generac for quantity required BS-68799
...
PLUG, 125V 30A 3-Prong Contact Generac for quantity required BS-100523GS
...
PLUG-120/240V TL20A Contact Generac for quantity required BS-100522GS

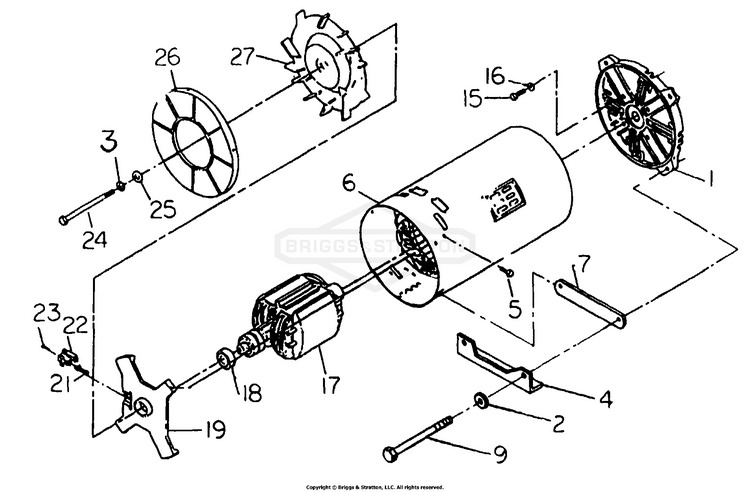

Motor Assembly Repair Parts No. 71742

...
...
1
HOUSING, Engine Adapter BS-43873
...
2
CAP BS-5022097SM
...
3
WASHER, Lock BS-22129GS
...
4
SUPPORT, Rear Generator BS-70634A
...
5
SCREW BS-24489
...
6
STATOR ASSEMBLY BS-68749C
...
7
BAR, Stator Bolt BS-44338
...
9
BOLT, Stator BS-44395B
...
15
WHEEL ASSEMBLY BS-84010756
...
16
LOCKWASHER, SPLIT 3/8 BS-703454
...
17
ROTOR ASSEMBLY BS-68748A
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
NUT BS-5025254FS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN, Cooling BS-44331

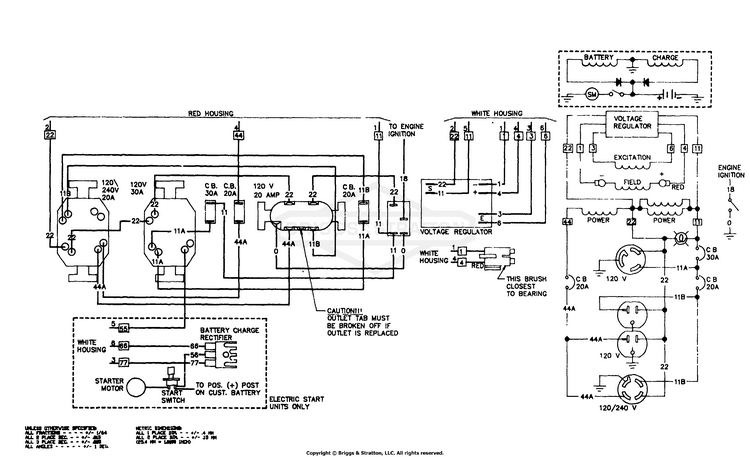

Wiring Diagram No. 68729

...

No Parts Available for this Schematic
