Briggs & Stratton 8892-0 - 580.328350, 5,000 Watt Craftsman

Model: 8892-0 - 580.328350, 5,000 Watt

Save Part Not Listed?
product name

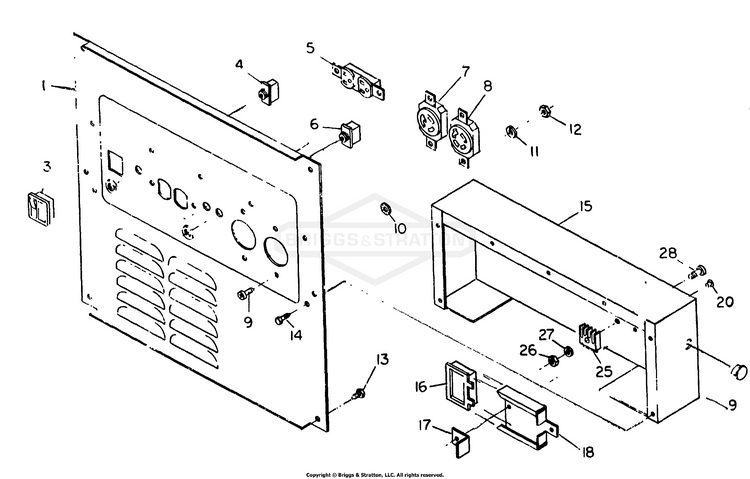

Control Panel No. 68872-A

...
...
1
PANEL, Receptacle (Silkscreened) Contact Generac for quantity required BS-68866E
...
3
SWITCH, ENG, CTRL, ILUM Contact Generac for quantity required BS-66817GS
...
4
BREAKER, Circuit- 20 ampere Contact Generac for quantity required BS-66819
...
5
OUTLET, 20A,120V Contact Generac for quantity required BS-68759GS
...
6
BREAKER, Circuit - 30 amp Contact Generac for quantity required BS-60824
...
7
OUTLET-120V TL30A Contact Generac for quantity required BS-705932
...
8
OUTLET, 120/240V Locking, 20A Contact Generac for quantity required BS-68867GS
...
9
SCREW Contact Generac for quantity required BS-797483
...
10
TIRE ASSM, 24X12.00-1 Contact Generac for quantity required BS-5023365YP
...
11
WASHER, Lock - No. 8 Contact Generac for quantity required BS-22264
...
12
NUT, #8-32 Contact Generac for quantity required BS-22471GS
...
13
SCREW (Crimptite) - 1/4"-20 x 1/2" Contact Generac for quantity required BS-69254
...
14
CRIMPTITE, #8-18X1/4L Contact Generac for quantity required BS-63036GS
...
15
PANEL, Back Contact Generac for quantity required BS-68746
...
16
REGULATOR, VOLT Contact Generac for quantity required BS-67107GS
...
17
BRACKET, Holddown Contact Generac for quantity required BS-68796
...
18
BRACKET, Regulator Contact Generac for quantity required BS-68795
...
19
BUTTON, Plug - 1/2" Contact Generac for quantity required BS-65511
...
20
RIVET, Pop - 1/8" Contact Generac for quantity required BS-36261
...
25
RECTIFIER, BATTERY CHARGE Contact Generac for quantity required BS-65795GS
...
26
CAP, FUEL TANK, 3-1/2 NECK Contact Generac for quantity required BS-5022158
...
27
VALVE, FUEL SHUT OFF Contact Generac for quantity required BS-84010414
...
28
SCREW - No. 10-32 x 3/4" Contact Generac for quantity required BS-36935
...
COVER, Connector Plug Contact Generac for quantity required BS-68799
...
PLUG, 125V 30A 3-Prong (For use with Item 7) Contact Generac for quantity required BS-100523GS
...
PLUG-120/240V TL20A (For use with Item 8) Contact Generac for quantity required BS-100522GS

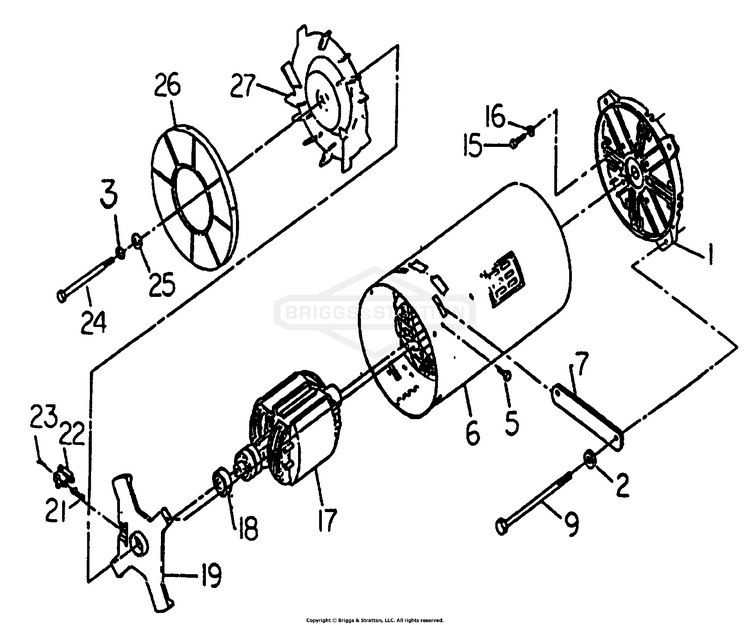

Generator No. 68871-A

...
...
1
HOUSING, Engine Adapter Contact Generac for quantity required BS-43873
...
2
CAP Contact Generac for quantity required BS-5022097SM
...
3
WASHER, Lock Contact Generac for quantity required BS-22129GS
...
4
SUPPORT, Rear Generator Contact Generac for quantity required BS-44392B
...
5
SCREW (Taptite)- No. 10-32 x 3/8" Contact Generac for quantity required BS-24489
...
6
STATOR ASSEMBLY Contact Generac for quantity required BS-68749C
...
7
BAR, Stator Bolt Contact Generac for quantity required BS-44338
...
9
BOLT, Stator Contact Generac for quantity required BS-44395B
...
15
WHEEL ASSEMBLY Contact Generac for quantity required BS-84010756
...
16
LOCKWASHER, SPLIT 3/8 Contact Generac for quantity required BS-703454
...
17
ROTOR ASSEMBLY Contact Generac for quantity required BS-68748A
...
18
BEARING, Rotor Contact Generac for quantity required BS-24049
...
19
CARRIER, Bearing Contact Generac for quantity required BS-44943
...
21
ASSY, BRUSH Contact Generac for quantity required BS-A24044AGS
...
22
HLDR, BRUSH, UNIV Contact Generac for quantity required BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS Contact Generac for quantity required BS-25105GS
...
24
NUT Contact Generac for quantity required BS-5025254FS
...
25
Washer, .34 x 1 x 10 Contact Generac for quantity required BS-50190GS
...
26
CVR, FAN, PLSTC Contact Generac for quantity required BS-44357GS
...
27
FAN, Cooling Contact Generac for quantity required BS-44331

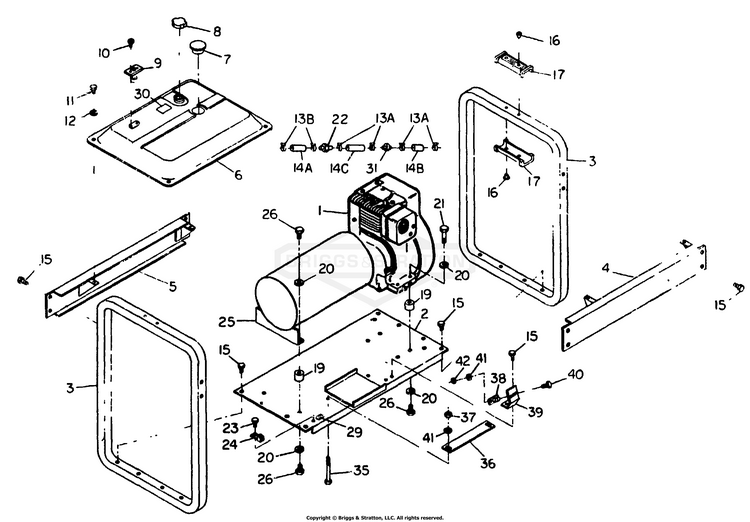

Mounting Base No. 68873-A

...
...
1
ENGINE- Briggs & Stratton 252415-0742-01 Contact Generac for quantity required BS-68861
...
2
BASE, Mounting- w/Battery Tray Contact Generac for quantity required BS-68339C
...
3
LOOP, Cradle End Contact Generac for quantity required BS-68340
...
4
SUPPORT, Fuel Tank - Right Contact Generac for quantity required BS-68890A
...
5
SUPPORT, Fuel Tank - Left Contact Generac for quantity required BS-68890
...
6
TANK, Fuel - 4.5 Gallons (17.0 Liters) Contact Generac for quantity required BS-66431
...
7
CVR, ACC, SPARKPLUG Contact Generac for quantity required BS-64680BGS
...
8
CAP, Fuel Tank Contact Generac for quantity required BS-66802A
...
9
GAUGE, Fuel Level Contact Generac for quantity required BS-66391B
...
10
SCREW - M5-0.80 x 12mm Contact Generac for quantity required BS-52749
...
11
SCREW - No. 10-32 x 3/8" Contact Generac for quantity required BS-36933
...
12
VALVE, FUEL SHUT OFF Contact Generac for quantity required BS-84010414
...
13A
CLAMP, Fuel Hose - 1/4" Contact Generac for quantity required BS-48031C
...
13B
CLAMP, Fuel Hose - 3/16" Contact Generac for quantity required BS-48013B
...
14A
HOSE, Fuel - 3" long x 3/16" Diameter Contact Generac for quantity required BS-68736
...
14B
HOSE, Fuel - 3" long x 1/4" Diameter Contact Generac for quantity required BS-47662B
...
14C
HOSE, Fuel - 14" long x 1/4" Diameter Contact Generac for quantity required BS-47662AA
...
15
SCREW (Crimptite) - 1/4"-20 x 1/2" Contact Generac for quantity required BS-69254
...
16
RIVET - 4mm Contact Generac for quantity required BS-66831
...
17
HANDLE - Plastic Contact Generac for quantity required BS-66450
...
19
MOUNT, Vibration Contact Generac for quantity required BS-44624
...
20
WASHER, Lock Contact Generac for quantity required BS-22129GS
...
21
SCREW - 5/16"-18 x 1-1/4" Contact Generac for quantity required BS-22128
...
22
ADAPTER, Fuel Hose - 1/4" to 3/16" Contact Generac for quantity required BS-68893
...
23
SCREW (taptite) - No. 10-32 x 3/8" Contact Generac for quantity required BS-24489
...
24
LUG, Grounding Contact Generac for quantity required BS-25433
...
25
SUPPORT, Rear Generator Contact Generac for quantity required BS-44392B
...
26
MODULE Contact Generac for quantity required BS-84009650
...
29
DECAL, GRD LUG Contact Generac for quantity required BS-67210AGS
...
30
DECAL - Fuel Caution Contact Generac for quantity required BS-68876
...
31
FILTER, FUEL, 150 MICRN Contact Generac for quantity required BS-68740GS
...
35
HHCS, 1/4-20 X 7 Contact Generac for quantity required BS-45000GS
...
36
CONTROL, Hydro, Right Contact Generac for quantity required BS-5044951B
...
37
NUT, Hex (Nylok) - 1/4"-20 Contact Generac for quantity required BS-27529
...
38
CONTACTOR, START, PUSH Contact Generac for quantity required BS-53030GS
...
39
BRACKET, Starter Contactor Contact Generac for quantity required BS-65121
...
40
BOLT, 1/4-20 X 3/4" G Contact Generac for quantity required BS-5025010X6SM
...
41
CAP Contact Generac for quantity required BS-5022097SM
...
42
NUT, Hex - 1/4"-20 Contact Generac for quantity required BS-22127
...
MANUAL-OPERATOR Contact Generac for quantity required BS-68870AGS

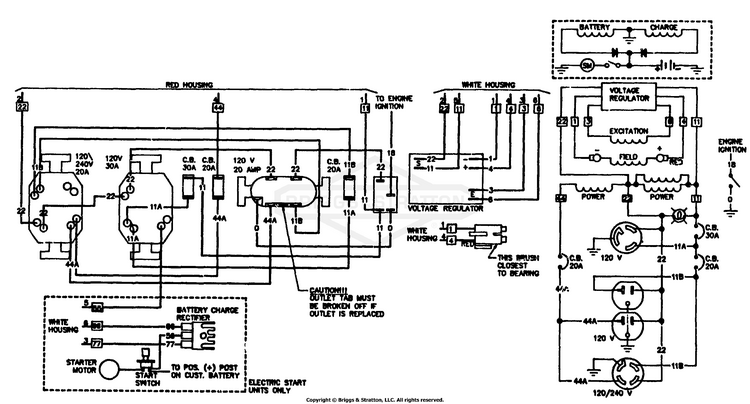

Wiring Diagram & Schematic No. 68729

...

No Parts Available for this Schematic
