Briggs & Stratton 8795-1 - 4,000 Watt Niagara

Model: 8795-1 - 4,000 Watt Niagara

Save Part Not Listed?
product name

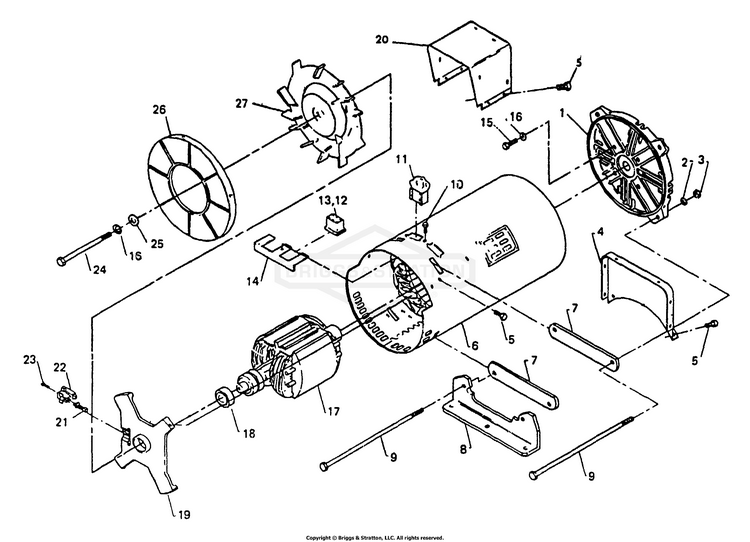

AC Generator No. 68377

...
...
1
HOUSING, Engine Adapter BS-60220F
...
2
CAP BS-5022097SM
...
3
NUT, Hex - 1/4"-20 BS-22127
...
4
(C) WELD PIVOT ARM BS-7043874YP
...
5
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSEMBLY BS-52523B
...
7
BAR, Stator Bolt BS-44338
...
8
SUPPORT, Rear Generator BS-44392A
...
9
BOLT, Stator BS-44395B
...
10
SCREW (Taptite) - No. 10-32 x 1/2" BS-24413
...
11
RECTIFIER, Bridge BS-28293
...
12
HOUSING, Receptacle BS-22694GS
...
13
HOUSING, Receptacle (Red) BS-43994
...
14
RETAINER, Receptacle Housing BS-46079
...
15
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
16
WASHER, Lock BS-22129GS
...
17
ROTOR ASSEMBLY BS-64866
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
20
(C) WELD SHAFT BRAK BS-7043875YP
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
BOLT, Rotor BS-29092
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN BS-44331

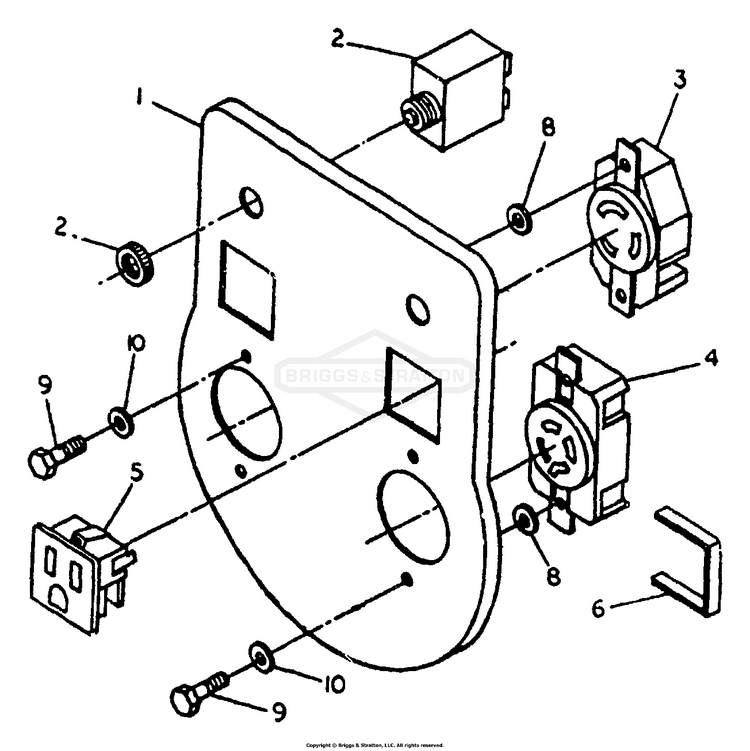

Control Panel No. 64872

...
...
1
PANEL, Front (Silkscreened) BS-65120B
...
2
BREAKER, Circuit- 15 Ampere BS-56286
...
3
RECEPTACLE- 120 VAC, 30 Ampere BS-37807
...
4
PLUG-120/240V TL20A BS-100522GS
...
5
SWITCH, PTO, DPDT BS-7022693YP
...
6
RETAINER, Parallel Blade Receptacle BS-27272
...
8
WASHER, (Nylon) BS-45805
...
9
SCREW, Pan Head Machine- No. 6-32 x 3/8" BS-36901
...
10
PULLEY, PUMP DRIVE BS-5022155SM
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

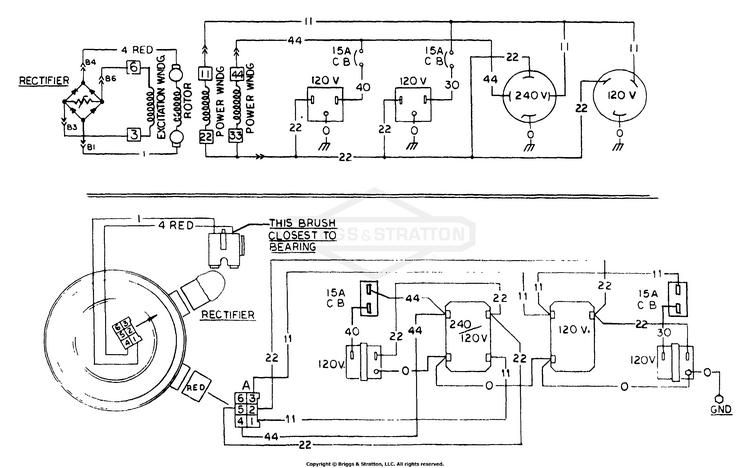

Electrical Schematic/Wiring Diagram No. 61753

...

No Parts Available for this Schematic

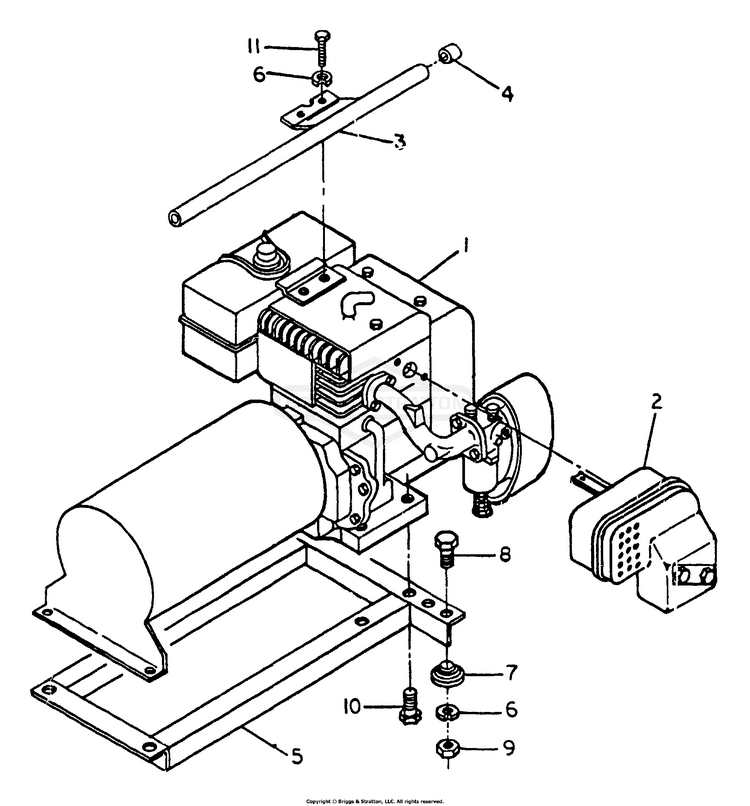

Mounting Base No. 68378

...
...
1
ENGINE - Tecumseh 8 Horsepower BS-67496
...
2
KIT, Exhaust Muffler BS-64874
...
3
HANDLE, Carrying BS-54248
...
4
PLUG, Cap BS-27794
...
5
BASE, Mounting BS-45611
...
6
WASHER, Lock BS-22129GS
...
7
SPRING (Plain) BS-23594
...
8
MODULE BS-84009650
...
9
NUT, 5/16-18 HEX BS-5025032SM
...
10
SCREW (Taptite) - 3/16"-18 x 3/4" BS-59637
...
11
CAPSCREW, Hex Head - 5/16"-18 x 3/4" BS-30332
