Briggs & Stratton 8760-1 - 580.328171, 1,350 Watt Craftsman

Model: 8760-1 - 580.328171, 1,350 Watt

Save Part Not Listed?
product name

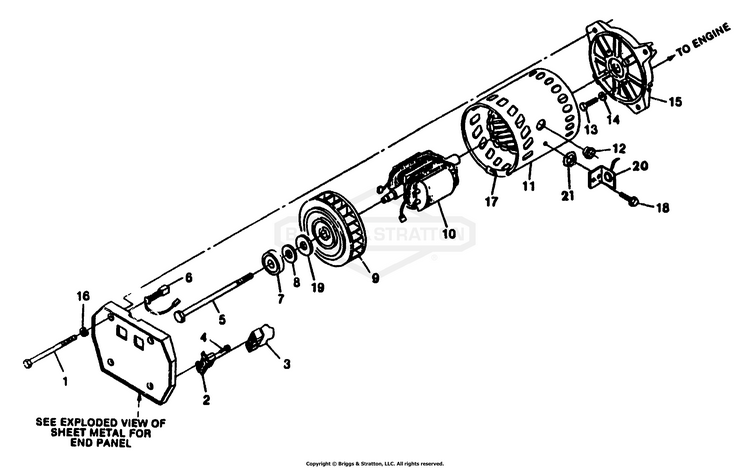

AC Generator

...
...
1
BOLT,Stator BS-44395E
...
2
HOUSING, Receptacle BS-22694GS
...
3
RECTIFIER, Bridge BS-28293
...
4
SCREW - No. 4 x 3/8" BS-59636
...
5
BOLT, Rotor BS-58885A
...
6
BRUSH and LUG ASSEMBLY - Red BS-59606
...
BRUSH and LUG ASSEMBLY - Neutral BS-59606A
...
7
BEARING, Rotor BS-24049
...
8
FAN, LOADING WSHR BS-58886GS
...
9
FAN, Generator BS-58888
...
10
ASSEMBLY, Rotor and Fan BS-61798
...
11
ANTI-SCALP KIT 48 D BS-7063128YP
...
12
BUSHING, Snap - 0.87" Diameter BS-23484D
...
13
CAPSCREW, Hex Head - 5/16" - 24 x 3/4" BS-22336
...
14
WASHER, Lock BS-22129GS
...
15
HOUSING, Engine Adapter BS-43872A
...
16
CAP BS-5022097SM
...
17
TRIM, Rubber (3 1/2" Long) Contact Generac for quantity required BS-61876
...
18
SCREW (Taptite) - No. 10-32 x 1/2" Contact Generac for quantity required BS-24413
...
19
WSHR, BRNG SEAL, FELT BS-60221GS
...
20
WHEEL AXLE BS-5045992SM
...
21
WASHER, #10 Ext. Shakeproof Contact Generac for quantity required BS-23762GS

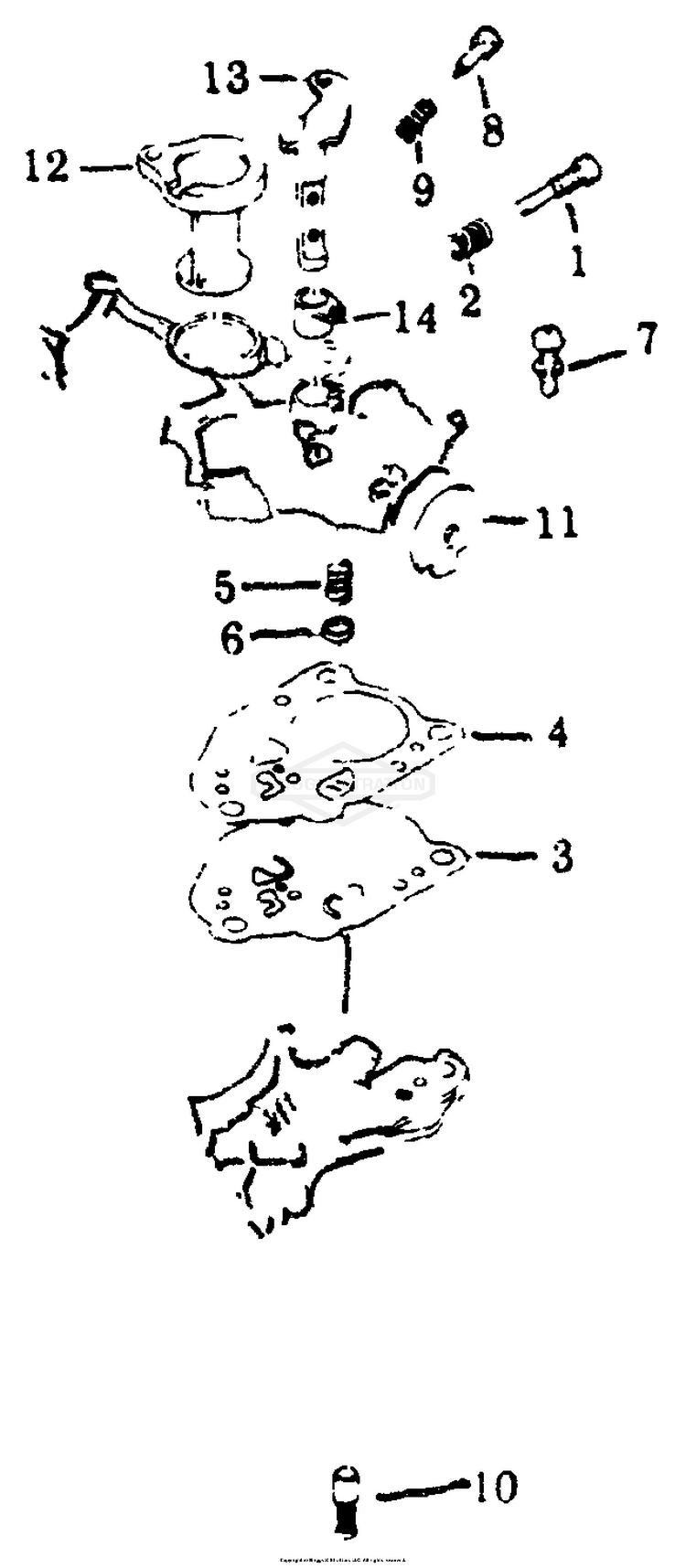

Carburetor

...
...
ASSEMBLY, Carburetor (Consists of Items 1 thru 15) Contact Generac for quantity required BS-17262473
...
1
SCREW, Low Speed Stop Contact Generac for quantity required BS-21162473
...
2
SPRING Contact Generac for quantity required BS-21262473
...
3
DIAPHRAGM Contact Generac for quantity required BS-21362473
...
4
GASKET Contact Generac for quantity required BS-21462473
...
5
SPRING Contact Generac for quantity required BS-21562473
...
6
CAP, Spring Contact Generac for quantity required BS-21662473
...
7
SCREW Contact Generac for quantity required BS-21762473
...
8
SCREW, Adjusting Contact Generac for quantity required BS-21862473
...
9
SPRING Contact Generac for quantity required BS-21962473
...
10
STRAINER Contact Generac for quantity required BS-22062473
...
11
VALVE, Choke Contact Generac for quantity required BS-22162473
...
12
SHAFT, Throttle Contact Generac for quantity required BS-22262473
...
13
SHAFT, Choke Contact Generac for quantity required BS-22362473
...
14
COLLAR Contact Generac for quantity required BS-22462473

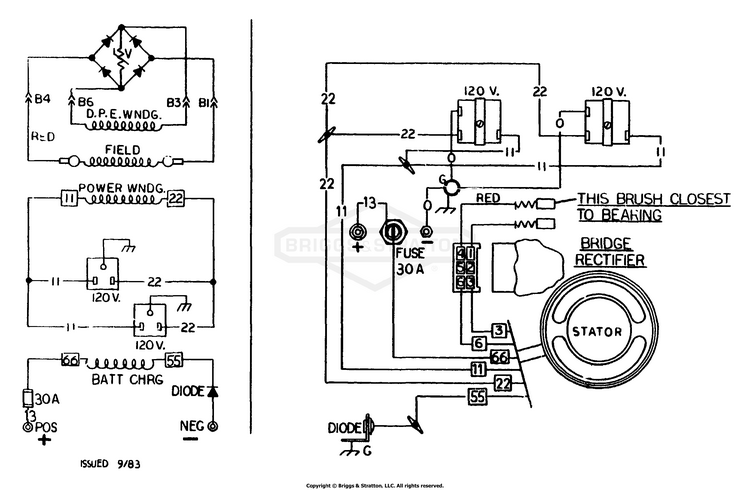

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

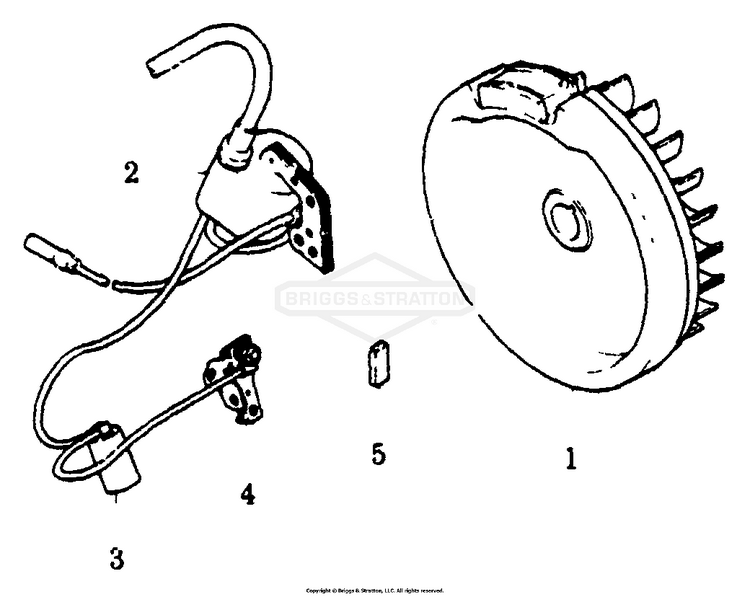

Magneto Assembly

...
...
xx
ASSEMBLY, Magneto (Consists of Items 1 thru 5) Contact Generac for quantity required BS-18662473
...
1
FLYWHEEL Contact Generac for quantity required BS-22562473
...
2
COIL, Ignition Contact Generac for quantity required BS-22662473
...
3
CONDENSOR Contact Generac for quantity required BS-22762473
...
4
BREAKER, Contact Contact Generac for quantity required BS-22862473
...
5
BRUSH Contact Generac for quantity required BS-22962473

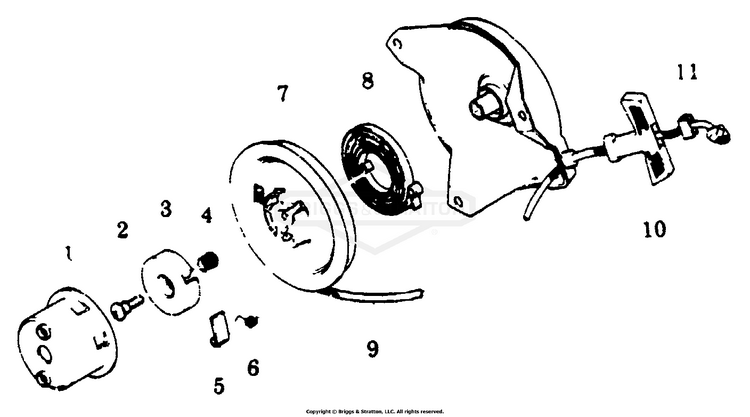

Recoil Starter Assembly

...
...
xx
ASSEMBLY, Recoil Starter Contact Generac for quantity required BS-19862473
...
1
PULLEY Contact Generac for quantity required BS-23062473
...
2
SCREW Contact Generac for quantity required BS-23162473
...
3
RETAINER Contact Generac for quantity required BS-23262473
...
4
SPRING Contact Generac for quantity required BS-23362473
...
5
PAWL Contact Generac for quantity required BS-23462473
...
6
SPRING, Return Contact Generac for quantity required BS-23562473
...
7
REEL, Recoil Contact Generac for quantity required BS-23662473
...
8
SPRING, Recoil Contact Generac for quantity required BS-23762473
...
9
ROPE Contact Generac for quantity required BS-23862473
...
10
HANDLE Contact Generac for quantity required BS-23962473
...
11
RETAINER, Handle Contact Generac for quantity required BS-24062473

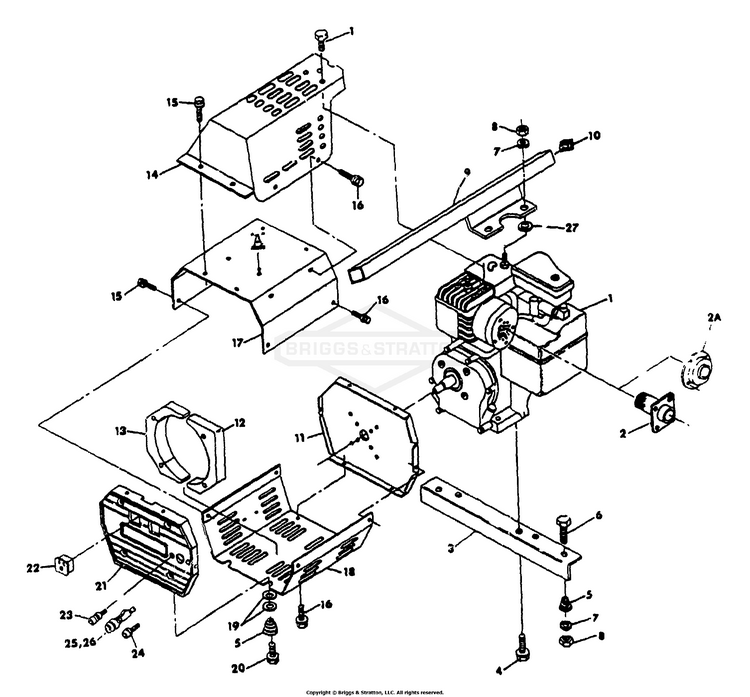

Sheet Metal

...
...
1A
ENGINE - Kawasaki 3 HP BS-62473
...
2
KIT, Spark Arrestor Screen BS-63139
...
3
SUPPORT, Engine BS-24509
...
4
SCREW BS-59637
...
5
SPRING, Mounting BS-23594
...
6
MODULE BS-84009650
...
7
WASHER, Lock BS-22129GS
...
8
NUT, 5/16-18 HEX BS-5025032SM
...
9
HANDLE, Carrying BS-63135
...
10
CAP PLUG, Tubing BS-46476GS
...
11
ADAPTER, Sheet Metal BS-60209A
...
12
BAFFLE, Generator Air - RH BS-58887A
...
13
BAFFLE, Generator Air - LH BS-58887B
...
14
COVER, Head BS-63134
...
15
SCREW (Plastite) - No. 8 x 3/8 BS-59635
...
16
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
17
WRAPPER, Generator Upper BS-58875A
...
18
WRAPPER, Generator Lower BS-58876A
...
20
SCREW (Plastite) 1/4" x 1" BS-59634
...
21
PANEL, End BS-63112A
...
22
RECEPTACLE- 120 Volts a-c BS-58888
...
23
TERMINAL, Battery Charge- Black BS-25368
...
24
TERMINAL, BTTRY CHG, RED BS-25367GS
...
25
FUSE, Battery Charge- 30 Ampere BS-22668
...
26
Holder, Fuse BS-191302GS
...
xx
KIT, Decal BS-63130B
...
xx
MANUAL-OPERATOR BS-63137GS
