Briggs & Stratton 8759-0 - 580.328160, 750 Watt Craftsman

Model: 8759-0 - 580.328160, 750 Watt

Save Part Not Listed?
product name

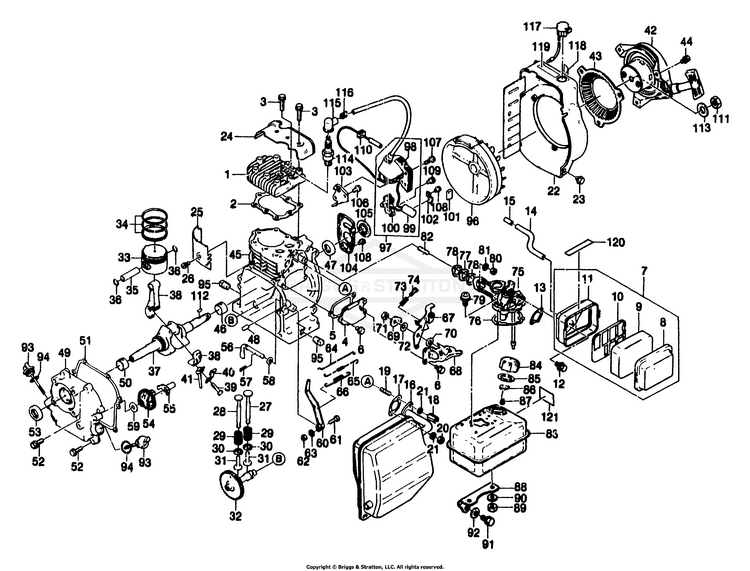

1.6 Horsepower Kawasaki Engine FA76D-3MP

...
...
1
HEAD, Cylinder Contact Generac for quantity required BS-10161892
...
2
GASKET, Cylinder Head Contact Generac for quantity required BS-10261892
...
3
BOLT - 6 x 40 mm Contact Generac for quantity required BS-10361892
...
4
COVER, Inspection Contact Generac for quantity required BS-10461892
...
5
GASKET Contact Generac for quantity required BS-10561892
...
6
BOLT - 6 x 12 mm Contact Generac for quantity required BS-10661892
...
7
ASSEMBLY, Air Cleaner (Consists of items 8-11) Contact Generac for quantity required BS-10761892
...
8
COVER, Air Cleaner Contact Generac for quantity required BS-10861892
...
9
ELEMENT Contact Generac for quantity required BS-10961892
...
10
PLATE, Air Cleaner Contact Generac for quantity required BS-11061892
...
11
CASE, Air Cleaner Contact Generac for quantity required BS-11161892
...
12
BOLT Contact Generac for quantity required BS-11261892
...
13
GASKET Contact Generac for quantity required BS-11361892
...
14
TUBE, Rubber Contact Generac for quantity required BS-11461892
...
15
PIPE Contact Generac for quantity required BS-11561892
...
16
MUFFLER Contact Generac for quantity required BS-11661893
...
17
GASKET Contact Generac for quantity required BS-11763042
...
18
NUT Contact Generac for quantity required BS-11861892
...
19
STUD Contact Generac for quantity required BS-11961892
...
20
NUT - 6 mm Contact Generac for quantity required BS-12061892
...
21
WASHER Contact Generac for quantity required BS-12161892
...
22
CASE, Spiral Contact Generac for quantity required BS-12261892
...
23
BOLT - 6 x 10 mm Contact Generac for quantity required BS-12361892
...
24
COVER, Cylinder Head Contact Generac for quantity required BS-12461892
...
25
COVER, Cylinder Contact Generac for quantity required BS-12561892
...
26
SCREW - 5 x 10 mm Contact Generac for quantity required BS-12661892
...
27
VALVE, Intake Contact Generac for quantity required BS-12761892
...
28
VALVE, Exhaust Contact Generac for quantity required BS-12861892
...
29
SPRING, Valve Contact Generac for quantity required BS-12961892
...
30
SEAT, Spring Contact Generac for quantity required BS-13061892
...
31
TAPPET Contact Generac for quantity required BS-13161892
...
32
GEAR, Cam Contact Generac for quantity required BS-13261892
...
33
PISTON Contact Generac for quantity required BS-13361892
...
34
SET, Piston Ring Contact Generac for quantity required BS-13461892
...
35
PIN, Piston Contact Generac for quantity required BS-13561892
...
36
RING Snap Contact Generac for quantity required BS-13661892
...
37
CRANKSHAFT Contact Generac for quantity required BS-13761892
...
38
ASSEMBLY, Connecting Rod (Includes Item 39) Contact Generac for quantity required BS-13861892
...
39
BOLT, Connecting Rod Contact Generac for quantity required BS-13961892
...
40
WASHER, Lock Contact Generac for quantity required BS-14061892
...
41
ARM, Splash Contact Generac for quantity required BS-14161892
...
42
ASSEMBLY, Recoil Starter Contact Generac for quantity required BS-14261892
...
43
SCREEN Contact Generac for quantity required BS-14361892GS
...
44
BOLT - 6 x 10 mm Contact Generac for quantity required BS-14461892
...
45
ASSEMBLY, Crankcase (Includes Item 46) Contact Generac for quantity required BS-14561892
...
46
BEARING, Plain Contact Generac for quantity required BS-14661892
...
47
SEAL, Oil Contact Generac for quantity required BS-14761892
...
48
PIN, Dowel Contact Generac for quantity required BS-14861892
...
49
ASSEMBLY, Side Base (Includes Item 50) Contact Generac for quantity required BS-14961892
...
50
BEARING, Plain Contact Generac for quantity required BS-14661892
...
51
GASKET Contact Generac for quantity required BS-15061892
...
52
BOLT - 6 x 22 mm Contact Generac for quantity required BS-15161892
...
53
SEAL, Oil Contact Generac for quantity required BS-14761892
...
54
ASSEMBLY, Governor Contact Generac for quantity required BS-15261892
...
55
SLEEVE, Governor Contact Generac for quantity required BS-15316892
...
56
TIP, Governor Contact Generac for quantity required BS-15461892
...
57
PIN, Snap Contact Generac for quantity required BS-15561892
...
58
WASHER Contact Generac for quantity required BS-12161892
...
59
WASHER Contact Generac for quantity required BS-15661892
...
60
ARM, Governor (Includes Items 61, 62, 63) Contact Generac for quantity required BS-15761892
...
61
BOLT - 6 x 25 mm Contact Generac for quantity required BS-15861892
...
62
NUT - 8 mm Contact Generac for quantity required BS-12061892
...
63
WASHER Contact Generac for quantity required BS-15961892
...
64
LINK, Governor Contact Generac for quantity required BS-16061892
...
65
SPRING, Link Contact Generac for quantity required BS-16161892
...
66
SPRING, Governor Contact Generac for quantity required BS-16261892
...
67
LEVER, Control Contact Generac for quantity required BS-16361892
...
68
BRACKET Contact Generac for quantity required BS-16461892
...
69
PLATE Contact Generac for quantity required BS-16561892
...
70
WASHER Contact Generac for quantity required BS-16661892
...
71
NUT Contact Generac for quantity required BS-16761892
...
72
SPRING Contact Generac for quantity required BS-16861892
...
73
SPRING Contact Generac for quantity required BS-16961892
...
74
SCREW - 4 x 20 mm Contact Generac for quantity required BS-17061892
...
75
ASSEMBLY, Carburetor Contact Generac for quantity required BS-17161892
...
76
GASKET Contact Generac for quantity required BS-17261892
...
77
INSULATOR Contact Generac for quantity required BS-17361892
...
78
GASKET Contact Generac for quantity required BS-17461892
...
79
SCREW - 5 x 25 mm Contact Generac for quantity required BS-17561892
...
80
NUT - 6 mm Contact Generac for quantity required BS-12061892
...
81
WASHER Contact Generac for quantity required BS-15961892
...
82
STUD Contact Generac for quantity required BS-17661892
...
83
ASSEMBLY, Fuel Tank (Includes Items 84-87) Contact Generac for quantity required BS-17761892
...
84
CAP, Fuel Tank Contact Generac for quantity required BS-17861892
...
85
GASKET Contact Generac for quantity required BS-17961892
...
86
SPRING Contact Generac for quantity required BS-18061892
...
87
SCREW Contact Generac for quantity required BS-18161892
...
88
BRACKET, Fuel Tank Contact Generac for quantity required BS-18261892
...
89
NUT - 8 mm Contact Generac for quantity required BS-18361892
...
90
WASHER Contact Generac for quantity required BS-18461892
...
91
BOLT - 6 x 12 mm Contact Generac for quantity required BS-18561892
...
92
WASHER Contact Generac for quantity required BS-18661892
...
93
DIPSTICK, Oil Contact Generac for quantity required BS-18761892
...
94
O-RING Contact Generac for quantity required BS-18861892
...
95
PLUG, Drain Contact Generac for quantity required BS-18961892
...
96
FLYWHEEL Contact Generac for quantity required BS-19061892
...
97
ASSEMBLY, Ignition Coil (Includes Items 98 thru 100) Contact Generac for quantity required BS-19161892
...
98
COIL, Ignition Contact Generac for quantity required BS-19261892
...
99
CONDENSOR Contact Generac for quantity required BS-19361892
...
100
BREAKER, Contact Contact Generac for quantity required BS-19461892
...
101
BRUSH Contact Generac for quantity required BS-19561892
...
102
CLAMP Contact Generac for quantity required BS-19661892
...
103
BRACKET Contact Generac for quantity required BS-19761892
...
104
COVER, Breaker Contact Generac for quantity required BS-19861892
...
105
RING Contact Generac for quantity required BS-19961892
...
106
BOLT - 5 x 10 mm Contact Generac for quantity required BS-20061892
...
107
BOLT - 5 x 20 mm Contact Generac for quantity required BS-20161892
...
108
SCREW - 4 x 8 mm Contact Generac for quantity required BS-20261892
...
109
SCREW - 4 x 10 mm Contact Generac for quantity required BS-20361892
...
110
GROMMET Contact Generac for quantity required BS-20461892
...
111
NUT - 12 mm Contact Generac for quantity required BS-20561892
...
112
KEY Contact Generac for quantity required BS-20661892
...
113
WASHER Contact Generac for quantity required BS-20761892
...
114
SPARK PLUG Contact Generac for quantity required BS-20861892
...
115
CAP, Plug Contact Generac for quantity required BS-00720961892
...
116
SPRING Contact Generac for quantity required BS-21061892
...
117
SWITCH, On/Off Contact Generac for quantity required BS-21161892
...
118
DECAL Contact Generac for quantity required BS-21261892
...
119
DECAL Contact Generac for quantity required BS-21361892
...
120
DECAL Contact Generac for quantity required BS-21461892
...
121
DECAL Contact Generac for quantity required BS-21561892

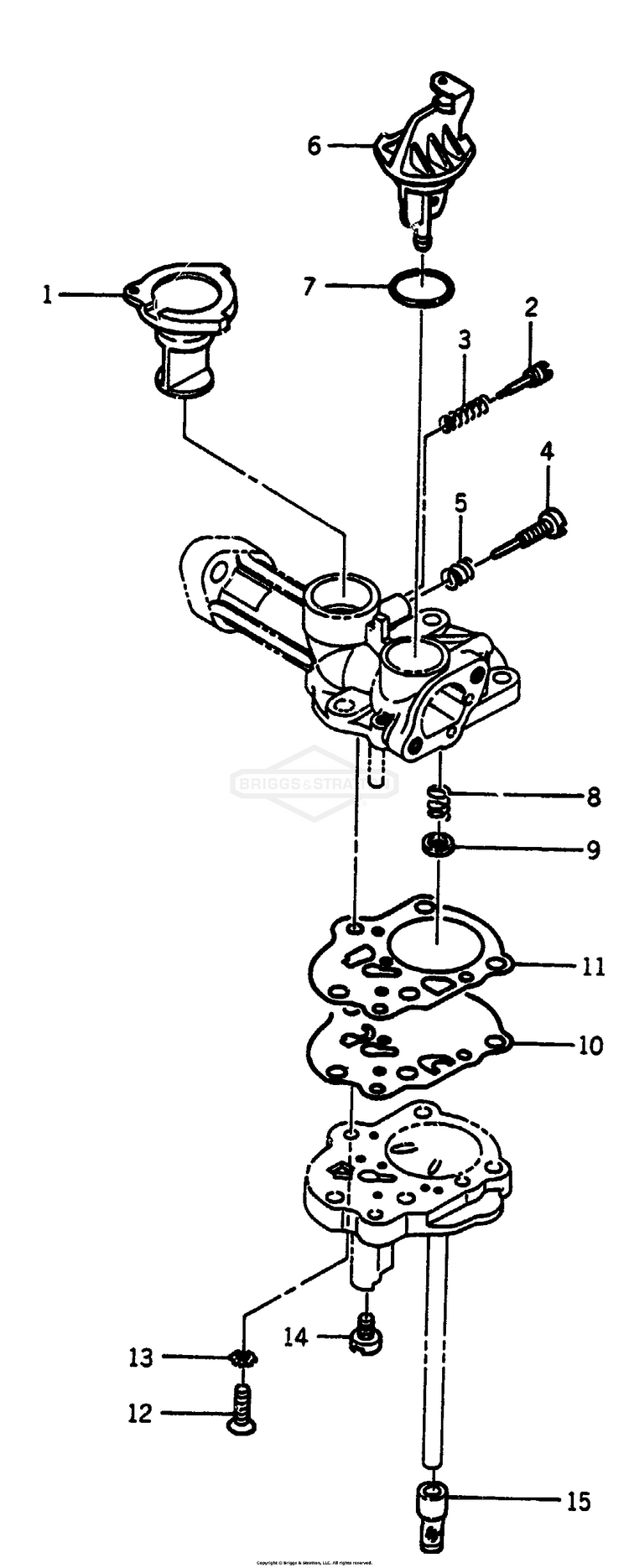

Carburetor For 1.6 Horsepower Kawasaki Engine FA76D-3MP

...
...
CARBURETOR ASSEMBLY (Includes Items 1 thru 15) Contact Generac for quantity required BS-17161892
...
1
SHAFT, Throttle Contact Generac for quantity required BS-21661892
...
2
SCREW, Adjustment Contact Generac for quantity required BS-21761892
...
3
SPRING Contact Generac for quantity required BS-21861892
...
4
SCREW, Idle Speed Stop Contact Generac for quantity required BS-21961892
...
5
SPRING Contact Generac for quantity required BS-22061892
...
6
SHAFT, Choke Contact Generac for quantity required BS-22161892
...
7
O-RING Contact Generac for quantity required BS-22261892
...
8
SPRING Contact Generac for quantity required BS-22361892
...
9
CAP, Spring Contact Generac for quantity required BS-22461892
...
10
DIAPHRAGM Contact Generac for quantity required BS-22561892
...
11
GASKET Contact Generac for quantity required BS-22661892
...
12
SCREW Contact Generac for quantity required BS-22761892
...
13
WASHER Contact Generac for quantity required BS-22861892
...
14
JET, Main - No. 54 Contact Generac for quantity required BS-22961892
...
15
STRAINER Contact Generac for quantity required BS-23061892

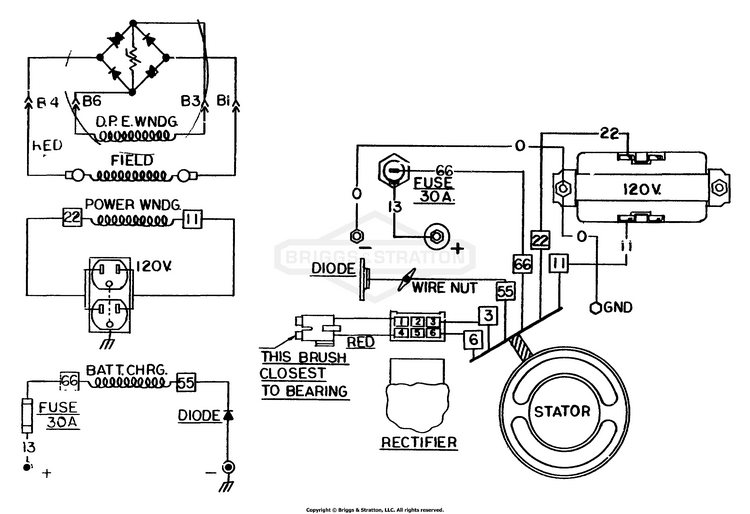

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

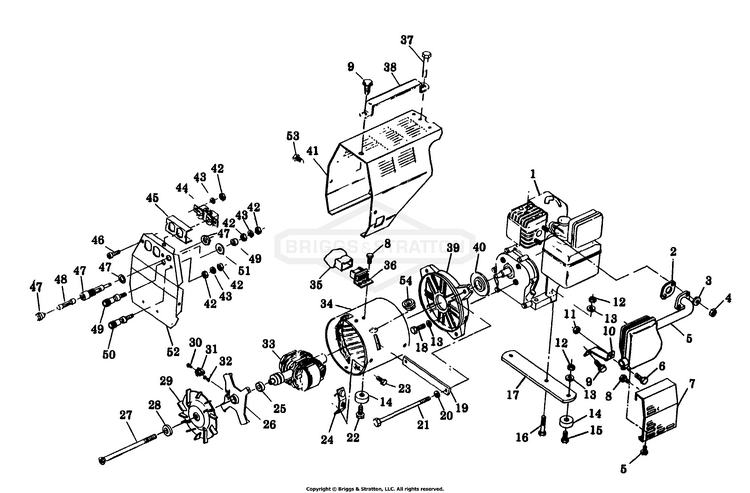

Generator

...
...
1
ENGINE - 1.6 Horsepower BS-61892
...
2
BELT COVER KIT BS-7063042YP
...
4
NUT, M6 BS-49813GS
...
5
MUFFLER, Spark Arrest BS-61893
...
6
SCREW, M6 x 12 BS-43116GS
...
7
SHIELD, Heat BS-63027
...
8
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
9
SCREW (Crimptite) - 1/4"-20 BS-58442
...
10
SUPPORT, Exhaust Muffler BS-63018
...
11
NUT-M6 FLANGE BS-52857GS
...
12
NUT, 5/16-18 HEX BS-5025032SM
...
13
WASHER, Lock BS-22129GS
...
14
MOUNT, Vibration BS-63015
...
15
MODULE BS-84009650
...
16
HHCS, 5/16-18 X 1-1/2 BS-22283GS
...
17
SUPPORT, Engine BS-63012
...
18
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
19
BAR, Stator BS-44338
...
20
CAP BS-5022097SM
...
21
CAPSCREW, Hex Head - 1/4"-20 x 5" BS-44395J
...
22
SCREW (Taptite) - 1/4"-20 x 1/2" BS-29026
...
23
SCREW (Taptite) No. 10-32 x 3/8" BS-24489
...
24
DIODE ASSEMBLY BS-44722
...
25
BEARING, Ball BS-24049
...
26
PLATE, Bearing Carrier BS-44943
...
27
BOLT, Rotor BS-63010
...
28
WASHER - Special BS-63011
...
29
FAN BS-44331
...
30
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
31
HLDR, BRUSH, UNIV BS-23877DGS
...
32
ASSY, BRUSH BS-A24044AGS
...
33
WINDSHIELD SNOW BS-7063016YP
...
34
STATOR ASSEMBLY BS-63017
...
35
BRIDGE ASSEMBLY BS-28293
...
36
SUPPORT, Rectifier BS-51721
...
37
SCREW BS-51767GS
...
38
HANDLE, Carrying BS-63013
...
39
HOUSING, Adapter BS-62257
...
40
RING, Adapter BS-62258
...
41
WRAPPER, Generator BS-63026
...
42
NUT, #8-32 BS-22471GS
...
43
WASHER, Lock - No. 8 BS-22264
...
44
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
45
INSULATOR BS-63024
...
46
SCREW, Pan Head Machine - No. 8-32 x 3/8" BS-28985
...
47
Holder, Fuse BS-191302GS
...
48
FUSE - 30 Ampere BS-22668
...
49
TERMINAL, BTTRY CHG, RED BS-25367GS
...
50
POST, Terminal - Black BS-25388
...
51
WASHER, Fiber BS-30798
...
52
PANEL, End - SEARS BS-63021
...
53
CRIMPTITE, #8-18X1/4L BS-63036GS
...
54
BUSHING BS-23484D
...
CABLE, Battery Charging BS-A25383
...
MANUAL, Owner's BS-63034
...
KIT, Generator Set Decal BS-63120A

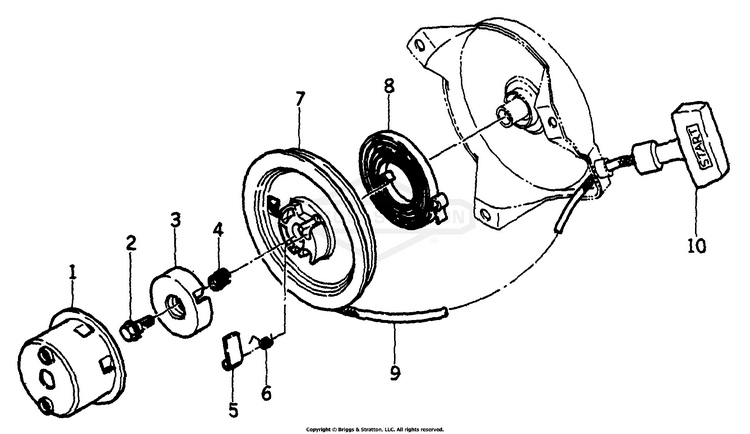

Recoil Starter

...
...
ASSEMBLY, Recoil Starter (Includes Items 1-10) Contact Generac for quantity required BS-14261892
...
1
PULLEY Contact Generac for quantity required BS-23161892
...
2
BOLT Contact Generac for quantity required BS-23261892
...
3
RETAINER Contact Generac for quantity required BS-23361892
...
4
SPRING Contact Generac for quantity required BS-23461892
...
5
PAWL, Recoil Contact Generac for quantity required BS-23561892
...
6
SPRING, Return Contact Generac for quantity required BS-23661892
...
7
REEL, Recoil Contact Generac for quantity required BS-23761892
...
8
SPRING, Recoil Contact Generac for quantity required BS-23861892
...
9
ROPE - 4 x 1120 mm Contact Generac for quantity required BS-23961892
...
10
HANDLE, Recoil Starter Contact Generac for quantity required BS-24061892
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
