Briggs & Stratton 8757-0 - 4,500 Watt Niagara

Model: 8757-0 - 4,500 Watt Niagara

Save Part Not Listed?
product name

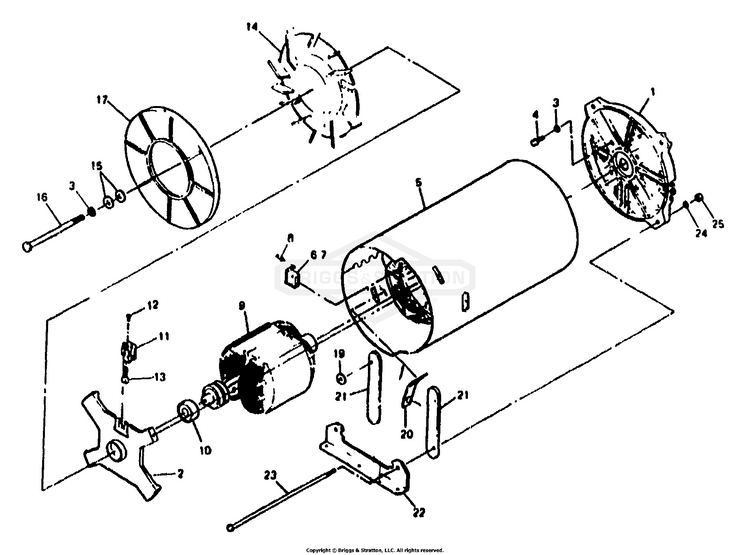

AC Generator

...
...
1
HOUSING, Engine Adapter BS-45631E
...
2
PLATE, Bearing Carrier BS-44943
...
3
WASHER, Lock BS-22129GS
...
4
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
5
STATOR ASSEMBLY BS-44961W
...
6
HOUSING, Receptacle BS-22694GS
...
7
HOUSING, Receptacle - Red BS-43994
...
8
SPACER BS-5044959FS
...
9
ROTOR ASSEMBLY BS-44391S
...
10
BEARING BS-24049
...
11
HLDR, BRUSH, UNIV BS-23877DGS
...
12
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
13
ASSY, BRUSH BS-A24044AGS
...
14
FAN BS-44331
...
15
WASHER, FLAT .406X.81 BS-71072MA
...
16
NUT BS-5025254FS
...
17
CVR, FAN, PLSTC BS-44357GS
...
20
DIODE AND PLATE, Battery Charge BS-44722
...
21
BAR, Stator Bolt BS-44338
...
22
SUPPORT, Rear Generator BS-44392B
...
23
BOLT, Stator - 11-7/8" long BS-44395B
...
24
CAP BS-5022097SM
...
25
NUT, Hex - 1/4"-20 BS-22127

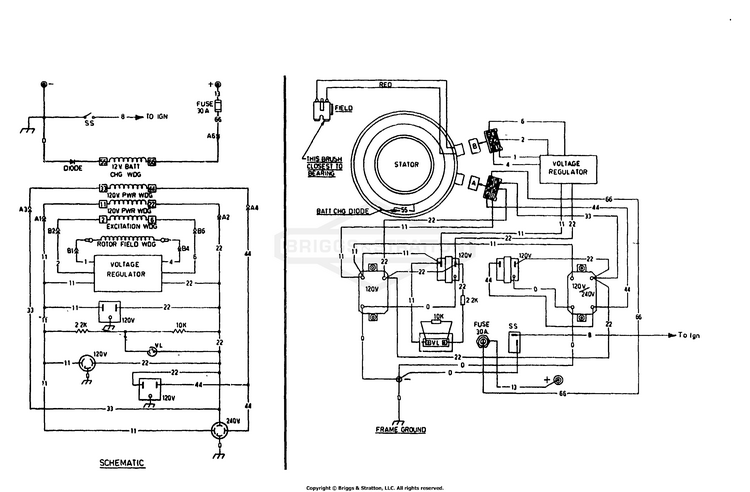

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

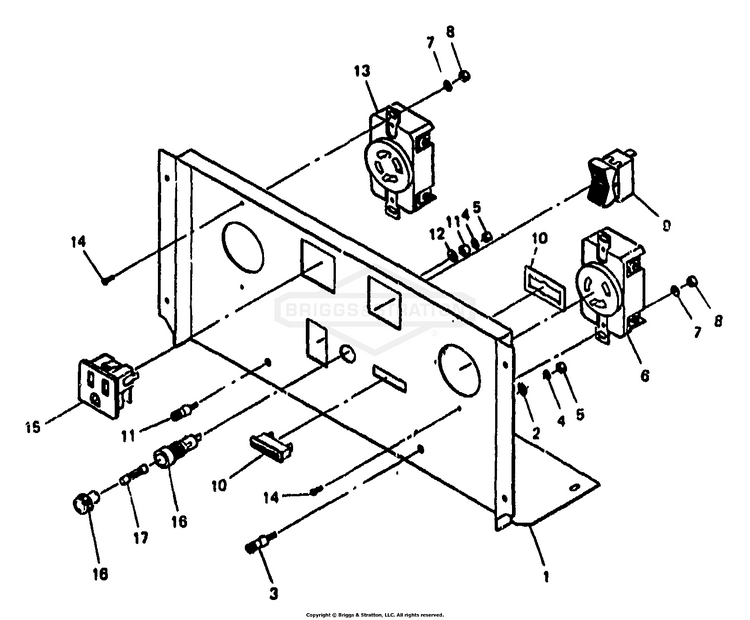

Generator Panel

...
...
1
PANEL, Control (Manual Start Units Only) BS-45647
...
PANEL, Control (Electric Start units) BS-47482
...
2
WASHER, External Shakeproof - No. 8 BS-26579
...
3
TERMINAL, Battery Charging - Black BS-25368
...
4
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
5
NUT, #8-32 BS-22471GS
...
6
RECEPTACLE - 120 Volts, 30 Ampere BS-37807
...
7
VALVE, FUEL SHUT OFF BS-84010414
...
8
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
9
SWITCH, ROCKER, SPST BS-33868GS
...
10
LIGHT, Overload Indicator BS-27767
...
11
TERMINAL, BTTRY CHG, RED BS-25367GS
...
12
WASHER, Fiber BS-30798
...
13
PLUG-120/240V TL20A BS-100522GS
...
14
SCREW, Phillips Pan Head Machine No. 10-32 x 3/8" BS-36933
...
15
SWITCH, PTO, DPDT BS-7022693YP
...
16
HOLDER, Battery Charge Fuse BS-22669
...
17
FUSE, Battery Charge - 30 Ampere BS-22668
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

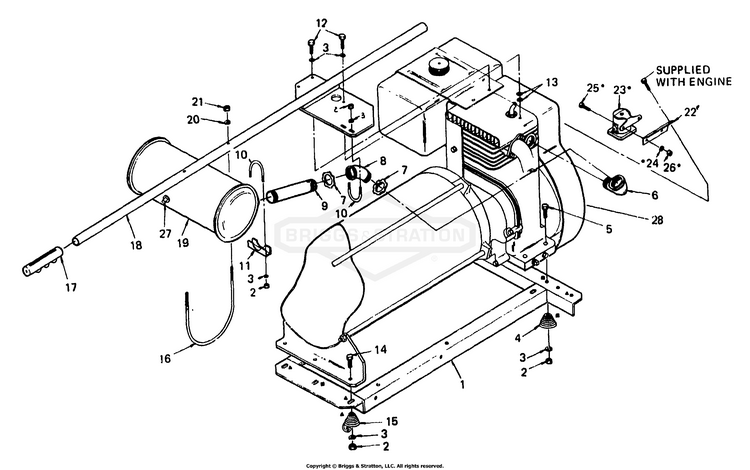

Mounting Base And Handle

...
...
1
BASE, Mounting BS-45611
...
2
NUT, 5/16-18 HEX BS-5025032SM
...
3
WASHER, Lock BS-22129GS
...
4
SPRING (without Loops) BS-23594
...
5
HHCS, 5/16-18 X 1-1/2 BS-22283GS
...
6
ELBOW, Reducing - 90 degree BS-29381
...
7
NUT, PIPE, 1 IN, LOCK BS-26772GS
...
8
FITTING, 45 degree - 1" BS-25472
...
9
NIPPLE, Pipe - 1" x 6" long BS-25435
...
10
U BOLT - 1-3/8" BS-28238
...
11
PLATE LWR PULLEY BS-7028237YP
...
12
CAPSCREW, Hex Head - 5/16"-18 x 1" BS-22125
...
14
MODULE BS-84009650
...
15
DEFLECTOR 26-30 BS-7025047YP
...
16
(C) FITTING 90 DEG W BS-7027110YP
...
17
GRIP, Handle BS-23712
...
18
HANDLE, Carrying BS-37409
...
19
MUFFLER, Exhaust BS-43951
...
20
LOCKWASHER, SPLIT 3/8 BS-703454
...
21
DECAL, ProCut Z Text BS-5022241
...
22
BRACKET, Starter Solenoid Mounting BS-24802
...
23
SOLENOID, Starter BS-24492
...
24
CAP BS-5022097SM
...
25
PIVOT LIFT LEVER BS-7022567YP
...
26
NUT, Hex - 1/4"-20 BS-22127
...
27
PLUG, Pipe - 1/8" NPT BS-26073
...
28
NUT, Pipe Lock - 3/4" BS-26771

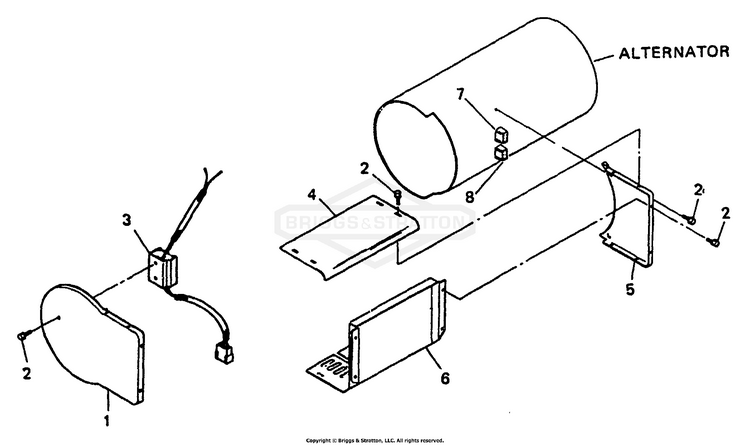

Sheet Metal

...
...
1
COVER, End Panel BS-44328Y
...
2
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
3
REGULATOR ASSEMBLY, Voltage BS-P44352
...
4
COVER, Panel BS-45254B
...
5
HYDRO TANK, RH BS-5045270B
...
6
PANEL, Control (Manual Start Units Only) BS-45647
...
PANEL, Control (Electric Start Units) BS-47482
...
7
HOUSING, Receptacle BS-22694GS
...
8
RECEPTACLE - Red BS-43994
