Briggs & Stratton 8756-0 - 1,800 Watt Niagara

Model: 8756-0 - 1,800 Watt Niagara

Save Part Not Listed?

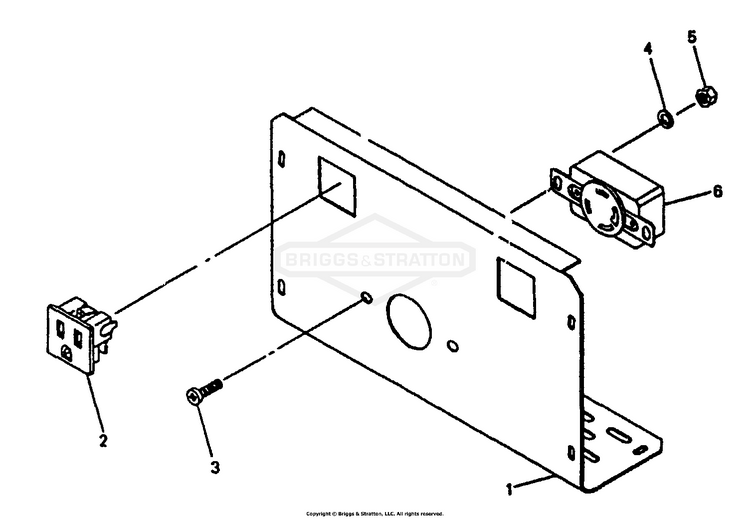

Control Panel

PANEL, Receptacle BS-49086

SWITCH, PTO, DPDT BS-7022693YP

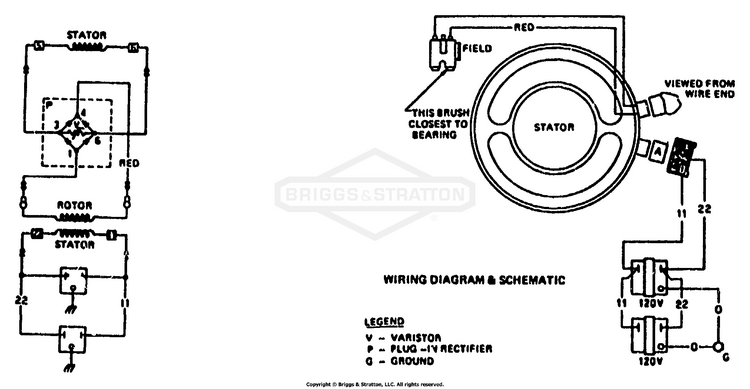

Electrical Schematic And Wiring Diagram

No Parts Available for this Schematic

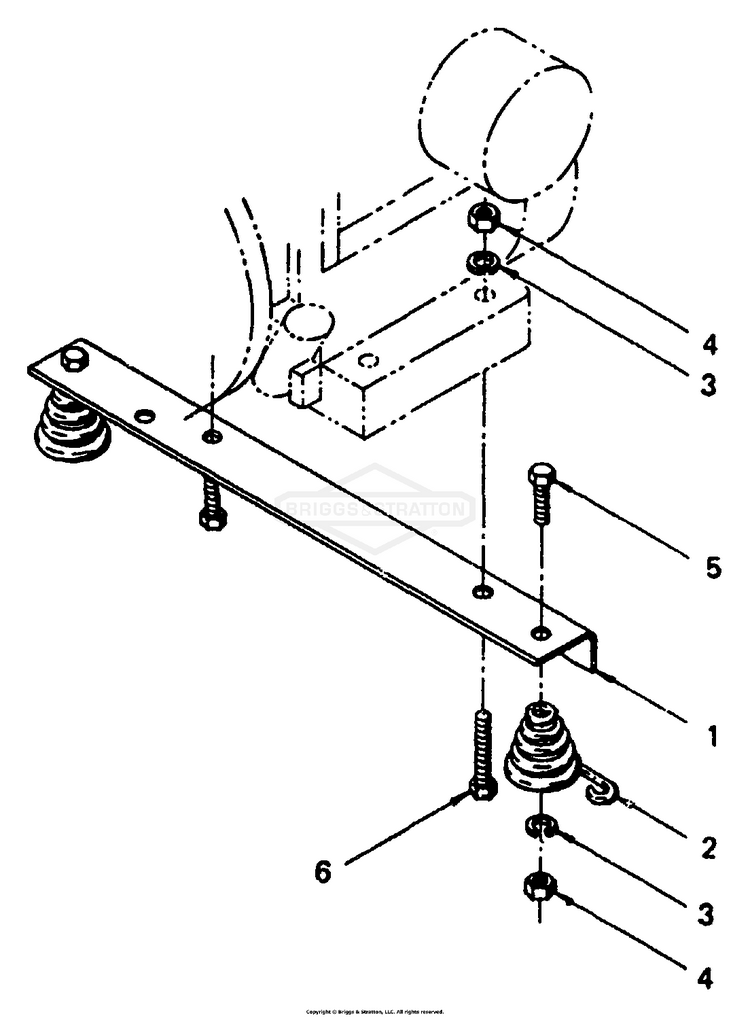

Engine Mounting Support

SUPPORT, Spring BS-24509

DEFLECTOR 26-30 BS-7025047YP

WASHER, Lock BS-22129GS

NUT, 5/16-18 HEX BS-5025032SM

MODULE BS-84009650

HHCS, 5/16-18 X 1-1/2 BS-22283GS

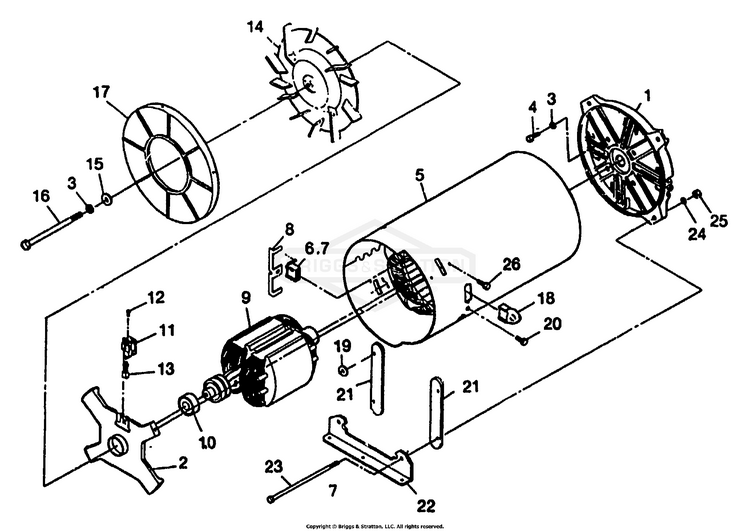

Generator

HOUSING, Engine Adapter BS-45631B

PLATE, Bearing Carrier BS-44943

WASHER, Lock BS-22129GS

CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336

STATOR ASSEMBLY BS-44961Z

HOUSING, Receptacle BS-22694GS

RECEPTACLE, Connector Plug (Red) BS-43994

RETAINER, Connector Plug Receptacle BS-46079

ROTOR ASSEMBLY BS-44391H

BEARING, Rotor BS-24049

HLDR, BRUSH, UNIV BS-23877DGS

PRHMS, 6-32 x 1/4 SEMS BS-25105GS

ASSY, BRUSH BS-A24044AGS

FAN, Cooling Air Blower BS-44331

Washer, .34 x 1 x 10 (Special for Rotor bolt) BS-50190GS

BOLT, Rotor BS-29092

CVR, FAN, PLSTC BS-44357GS

RECTIFIER, Bridge BS-28293

SCREW (Taptite) - No. 10-32 x 1/2" BS-24413

BAR, Stator Bolt BS-44338

SUPPORT, Rear Generator BS-44392A

BOLT, Stator BS-44395B

CAP BS-5022097SM

NUT, Hex - 1/4"-20 BS-22127

SCREW (Taptite) - No. 10-32 x 3/8" BS-24489

MANUAL, Instructions and Parts BS-62286

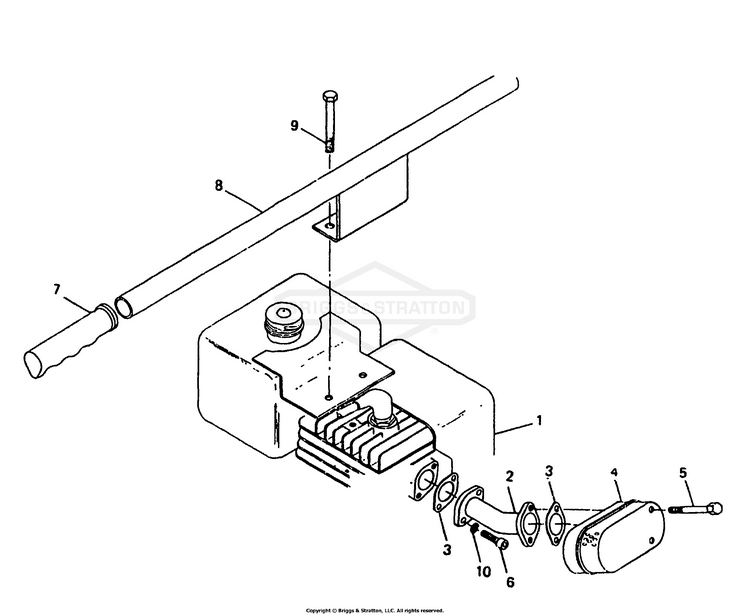

Handle And Muffler

Rear Engine Deck Support BS-5042368

GASKET BS-41421

3/16 Transmission Spacer BS-5042367

CAPSCREW, 1/4-20 x 2 1/4 Lg. Hex Head BS-25965

CAPSCREW, 1/4-20 x 1/2 Lg. Socket Head BS-50410

NUT BS-5025094YP

HANDLE BS-47193

DECAL BANNER TEAL BS-7024043YP

CAP BS-5022097SM

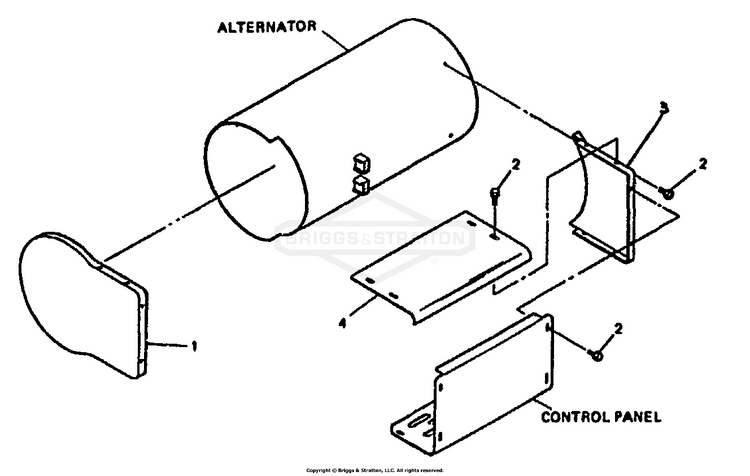

Sheet Metal

PANEL, End BS-KK44328

SCREW (Taptite) - No. 10-32 x 3/8" BS-24489

COVER, Receptacle Panel BS-45606
